Simplex G3 User Manual

••• 10 •••
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center

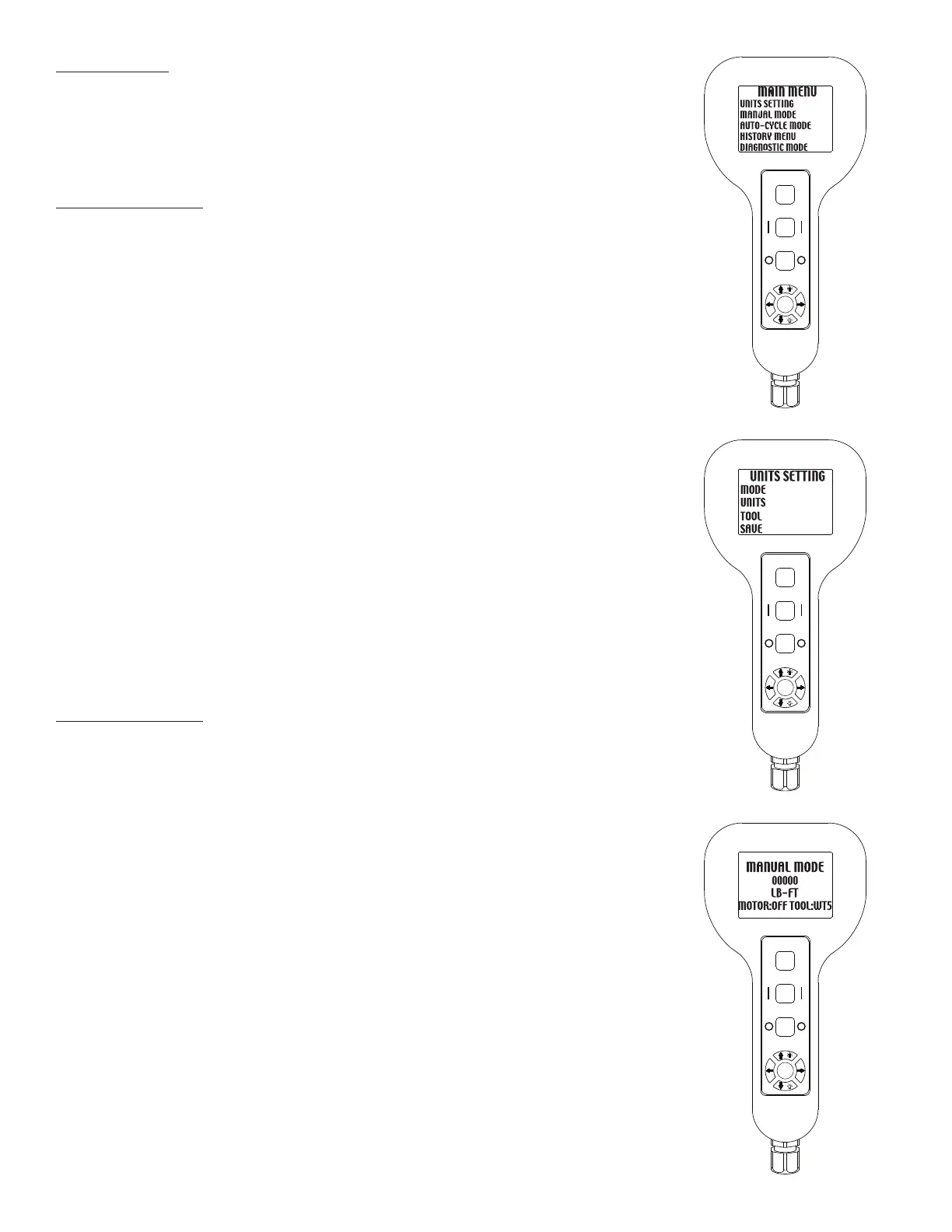

MAIN MENU - FIG. 3
To enter the “main menu”, depress “MENU/ENTER” button. By pressing the “up” or
“down” arrow buttons, sub-menus can be highlighted. Once the preferred sub-menu is high-
lighted, press the “MENU/ENTER” button to go into that sub-menu mode.
❶
To return to the “main menu” press the “left arrow button”.
UNIT SETTINGS - FIG. 4
• Highlight & press “enter” to select UNIT SETTINGS.
❶
• MODE - PRESSURE or TORQUE is chosen by highlighting & pressing “enter” button.
❶
To return to the “main menu” press the “left arrow button”.
• UNITS - In PRESSURE mode, units (kg/cm
2
, PSI, Bar and KPA) are displayed by
highlighting & pressing the “enter” button until desired form of measurement is displayed.
❸
To return to the “main menu” press the “left arrow button”.
• SAVE the data by pressing the “down” arrow button to “save” mode and press “enter”.
➎
To return to the “main menu” press the “left arrow button”.
• UNITS - In TORQUE mode, “units” (lb-ft, NM, KPM,) are displayed by highlighting &
pressing the “enter” button until desired form of measurement is displayed.
❸
To return to the “main menu” press the “left arrow button”.
• SAVE the data by pressing the “down” arrow button to “save” mode and press “enter”.
➎
To return to the “main menu” press the “left arrow button”.
• TOOL - Highlight & press “enter” and use the “arrow” buttons until the desired TOOL is
selected. If the TOOL being used is not a SIMPLEX TOOL, select “other”. If no TOOL is be-
ing used, select “none”.
➍
To return to the “main menu” press the “left arrow button”.
• SAVE the data by pressing the “down” arrow button to “save” mode and press “enter”.
➎
To return to the “main menu” press the “left arrow button”.
MANUAL MODE - FIG. 5
• Highlight & press “enter” to select MANUAL MODE.
❶
• To operate pump, press the “ADVANCE” button to turn pump motor on and
advance the tool.
❷
To return to the “main menu” press the “menu/enter button”.
FIG. 5
❸☞
➍☞
➎☞
❷☞
❶☞
❶☞
❶☞
❷☞
FIG. 4
FIG. 3
