3.0 TECHNICAL SPECIFICATIONS
G5 Electric Torque Wrench
Voltage 115V 230V
Operating Pressure 10,000 PSI (700kg/cm
2
)
Electrical Power Source 20 Amps 115V Grounded 50/60 Hz 10 Amps 230V Grounded 50/60 Hz
Motor Rating 1.125 Hp Single Phase
18 Amps @ 10,000 psi (700kg/cm
2
)
1.125 Hp Single Phase
10 Amps @ 10,000 psi (700kg/cm
2
)
Flow Rate 575 cu. in./ min. @ 1,100 psi, 55 cu. in / min. @ 10,000 psi
Maximum Operating
Temperature
170F - (65C)
4.0 WORKING PRESSURE
The pump’s maximum working pressure is 10,000 PSI (700kg/cm
2
). Make sure that all hydraulic equipment such as
rams, hoses, etc. used with this pump are rated at 10,000 PSI (700kg/cm
2
) operating pressure.

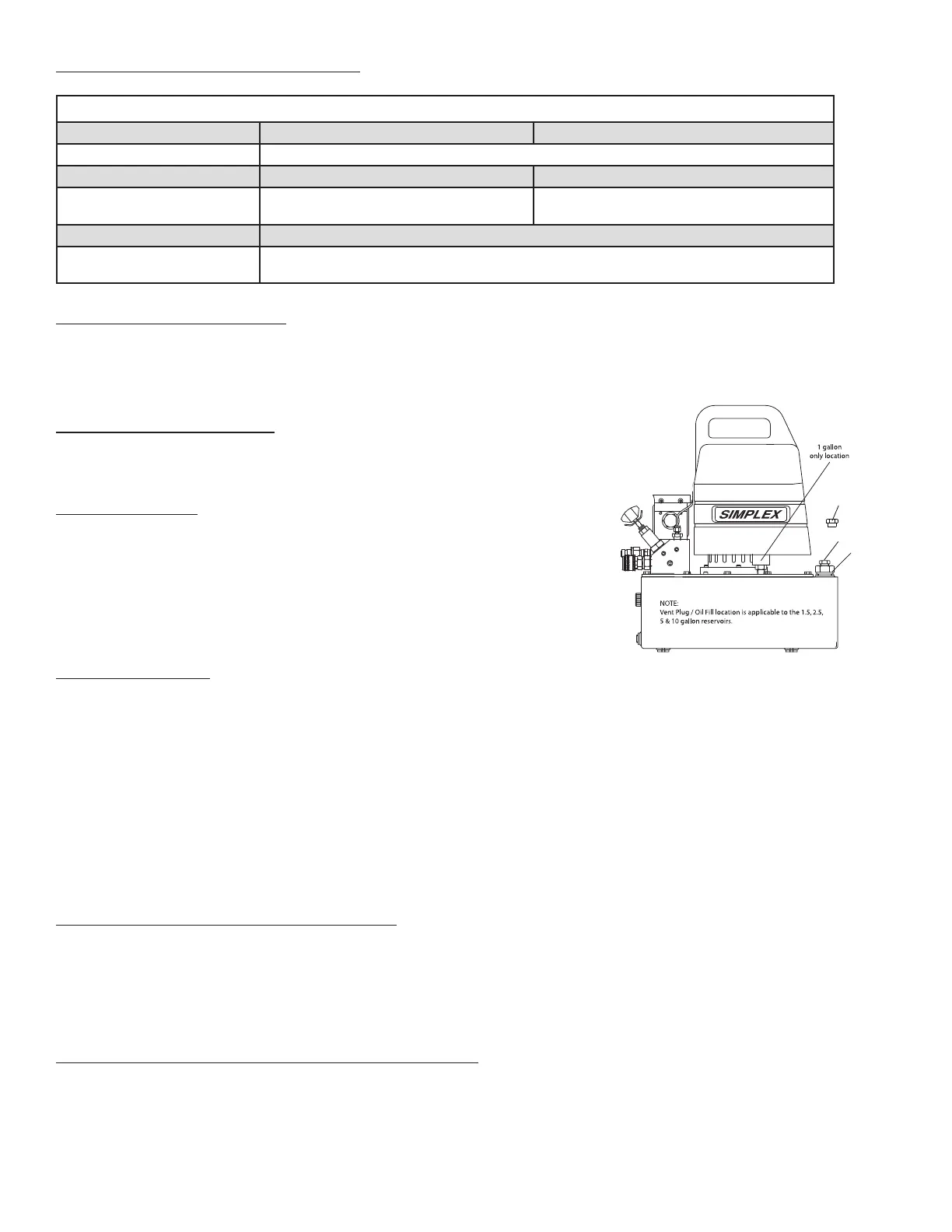

4.1 INSTALL VENT PLUG
Remove SHIPPING PLUG (A) and install VENT PLUG (B) into ll plug.
4.2 ADDING OIL
Remove OIL FILLER CAP (C) and add SIMPLEX Hydraulic Oil into reservoir.
Oil level should not exceed 1” from the reservoir cover.
*As a “rule of thumb” oil should be visual in site window when the unit is
powered down and all connected tools are retracted.
4.4 ELECTRICAL
Check for proper electrical supply before connecting. Be sure the electrical connection is grounded. Check that your
power supply agrees with the motor nameplate and/or Simplex model decal.
NOTE: MOTOR MAY SPARK. DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE OR IN THE PRESENCE OF
CONDUCTIVE LIQUIDS.
1. Do not use a power or extension cord that is damaged or has exposed wires.
2. All single phase motors come equipped with a three prong grounding type plug to t the proper grounded
type electrical outlet. Do not use a two prong ungrounded extension cord as the pump’s motor must be
grounded.
4.5 CONNECTING HYDRAULIC TOOLS
Use only tools, hoses and accessories rated at 10,000 PSI (700kg/cm
2
). When making connections with quick
disconnect couplings, make sure the couplings are fully engaged. Threaded connections such as ttings, gauges,
etc. must be securely tightened and leak free. Use 1.5 wraps of Teon tape (or suitable thread sealant) on all threads,
leaving the rst complete thread free of tape to ensure no foreign matter enters the hydraulic circuit.
4.6 STARTING THE PUMP FOR THE FIRST TIME
1. Locate the “ON” button on the pendant and Depress. Check for any leaks, repair as needed.
2. Depress “ADV” button to advance tool and release to retract tool. Look for movement in tool,
check for any leaks, repair as needed.
C
B
A
