5.2 PRESSURE TORQUE SETTING
WARNING: Make these adjustments BEFORE putting torque wrench on nut or bolt head. The pump pressure
setting may be above the pressure needed to provide the required torque for your application. Exceeding required
torque will cause equipment damage and may lead to serious personal injury.
1. See torque wrench instructions for amount of pressure required
to produce desired torque.
2. Loosen lock nut and back out relief valve to prevent unintended
pressure build up.
3. Turn pump on. Press and hold the “ADVANCE” button, and read
pressure on the digital display on the pendant. (Manual Mode)
4. While holding the button, turn relief valve in (clockwise)
to increase pressure or out (counter-clockwise) to decrease maximum
pressure.
Repeat until correct pressure is obtained.
5. Tighten lock nut on the relief valve to maintain setting.
6. Run pump several times to test this setting before setting tool on the nut.
DIAGNOSTIC MODE
• Highlight & Press “enter” to select DIAGNOSTIC MODE.
❶
• DISPLAY TEST - Highlight & press “enter” to select DISPLAY TEST. Press
“enter” again to end the test.
❷
Press “left” arrow button to return to MAIN MENU.
• KEYPAD TEST - Highlight & press “enter” to select KEYPAD TEST. Press
any button to test. Press “menu” to exit.
❸
• CIRCUITRY TEST - Highlight & press “enter” to select CIRCUITRY TEST. If
circuit diagnostic is OK, press any key to exit.
➍
Press “left” arrow key to return to MAIN MENU.
5.3 AFTER COMPLETING THE JOB
Before disconnecting hoses, ttings, etc., rst be sure the tool is unloaded and
retracted, then unplug the power cord. The pump is designed to cycle valve
upon power down “off.”
6.0 PERIODIC MAINTENANCE
Completely change the hydraulic oil and clean the intake screen and magnet
(located in the reservoir) twice a year. If equipped, change the external oil lter
twice a year (Use Simplex oil only, Model # AO1, 1 gallon). Change the oil
more frequently when used in extremely dusty areas or when the oil has been
overheated. Using oil other than Simplex Brand may void the pump’s warranty.
The following conditions require more frequent oil changes.
• Rigorous duty, where oil temperature may reach 150˚ F.
• High humidity environment and extreme changes in temperature that can result in condensation inside the
reservoir.
• Dirty or dusty environments that may contaminate the oil.
• Frequent connection and disconnection of hydraulic hoses and components.
WARNING: The electrical power cord must be disconnected from electrical outlets before performing maintenance
or repair procedures.

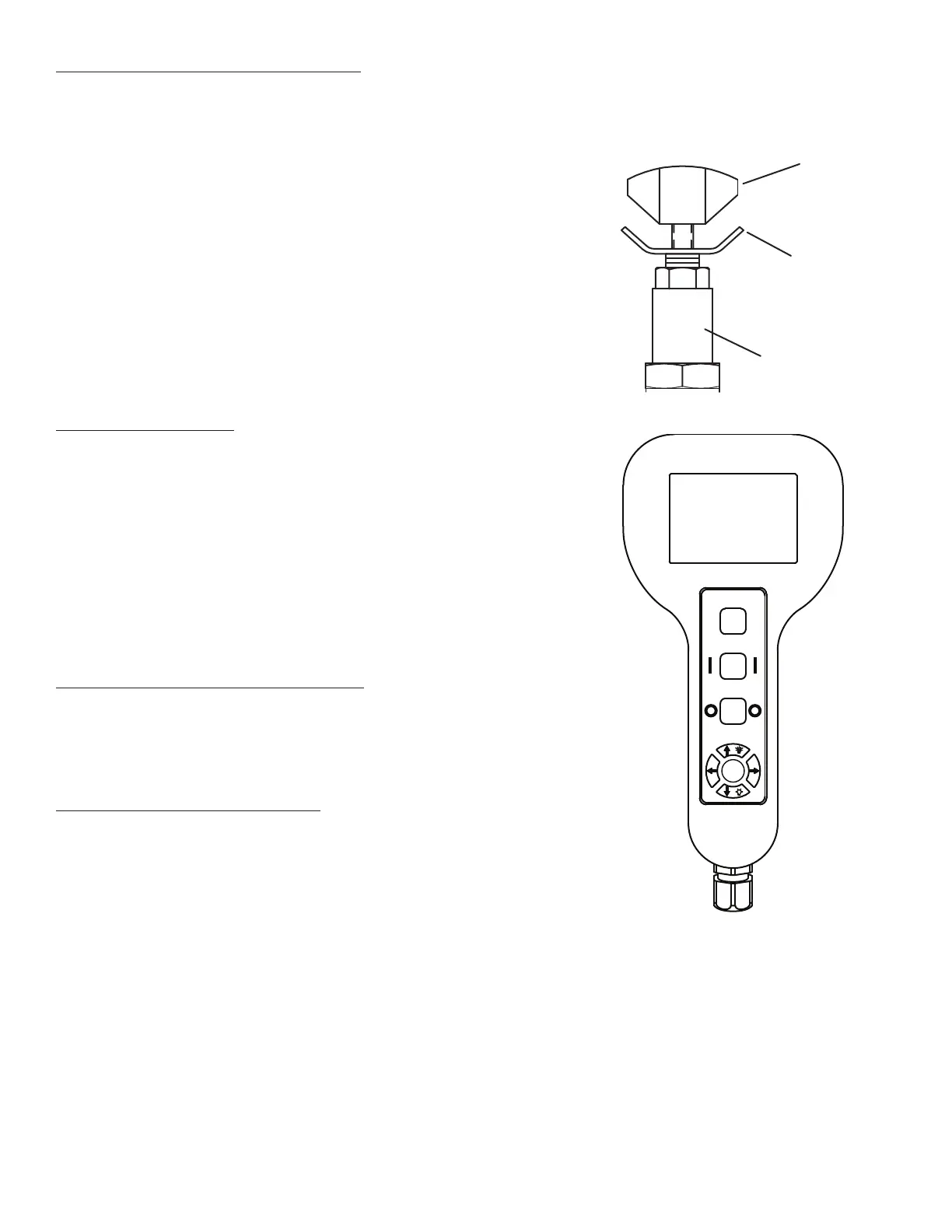

Valve Assembly
Adjusting Knob
Lock Nut
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
DIAGNOSTIC MODE
DISPLAY TEST
KEYPAD TEST
CIRCUITRY TEST
❶☞
❸☞
➍☞
❷☞
