Simplex G3 User Manual

••• 8 •••
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center

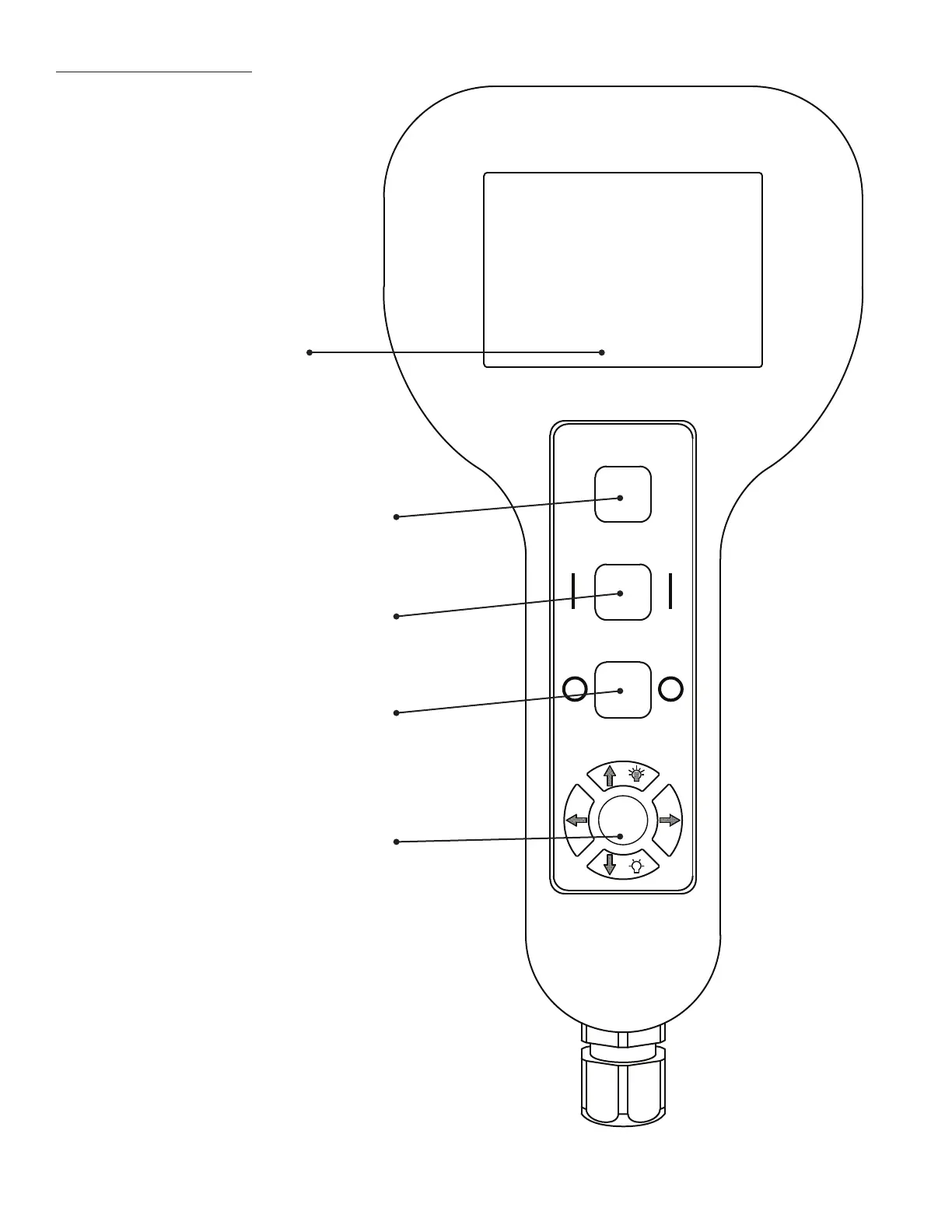

PENDANT OVERVIEW
LCD DISPLAY
“ADVANCE” BUTTON”
DEPRESSING BUTTON ACTIVATES
MOTOR “ON” AND ADVANCES TOOL.
“ON” BUTTON”
DEPRESSING BUTTON ACTIVATES
MOTOR “ON”
MENU / ENTER / ARROW BUTTONS
EXECUTES A COMMAND
• UP BUTTON MOVES CURSOR UPWARD
CHANGES VALUE
• DOWN BUTTON MOVES BUTTON DOWNWARD
CHANGES VALUE
• LEFT BUTTON MOVES CURSOR
LEFT OR RETURNS BACK
• RIGHT BUTTON MOVES CURSOR
RIGHT OR CHANGES VALUE
“OFF” BUTTON”
DEPRESSING BUTTON TURNS
MOTOR “OFF” AND CYCLES VALVE TO
RELIEVE PRESSURE TRAP.
NOTE: WHEN IN MANUAL MODE -
PRESSING THE “UP” ARROW DARKENS CONTRAST
PRESSING THE “DOWN” ARROW LIGHTENS CONTRAST
