Power Control Center
AUTO CYCLE MODE
TOOL
MODE
TARGET

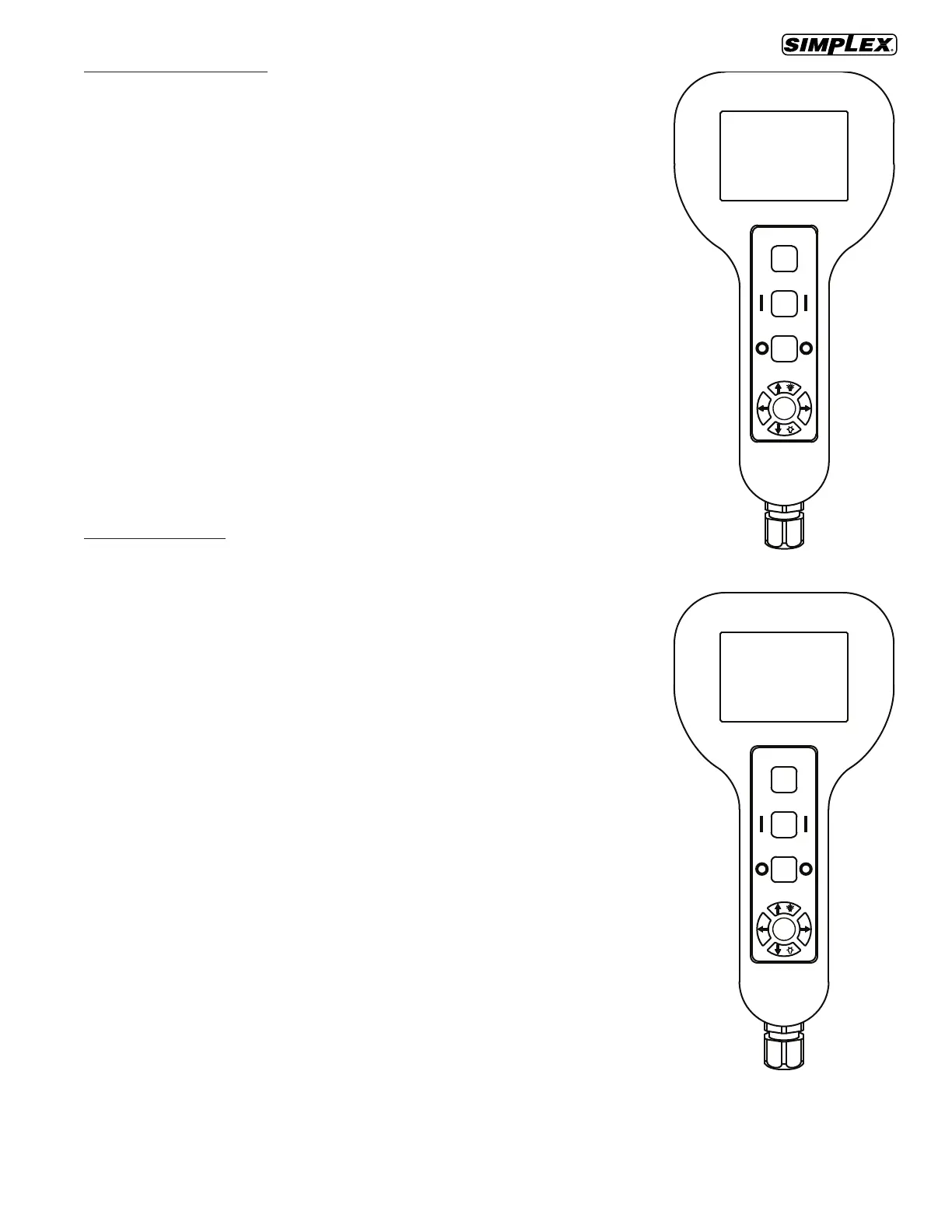

AUTO-CYCLE MODE
• Highlight & press “enter” to select AUTO-CYCLE mode.
❶
• TOOL - Press “enter” and use the “arrow” buttons until the desired TOOL is se-
lected. If the TOOL being used is not a SIMPLEX TOOL, select “other”. If no TOOL is
being used, select “none”.
❷
To return to the “main menu” press the “left arrow button”.
• MODE - PRESSURE or TORQUE is chosen by highlighting & pressing
“enter” button. If TORQUE is selected, you must select a “tool” or “other” and
“enter” data.
❸
To return to the “main menu” press the “left arrow button”.
• TARGET - Highlight & press “enter” to select TARGET and use the “up” and
“down” keys to raise or lower the TARGET Pressure. Use the “right and “left” arrow
keys to select the desired digit column.
➍
To return to the “main menu” press the “left arrow button”.
• RUN - Highlight & press arrow key “down” and press “select” to run the
AUTO-CYCLE mode. Unit will AUTO-CYCLE until the target goal is achieved. To
interrupt during a cycle, depress any button.
To return to the “main menu” press the “left arrow button”.
HISTORY MENU
• Highlight & press “enter” to select HISTORY MENU.
❶
• MOTOR RUN TIME - Highlight & press “enter” to view the total number of HOURS
and CYCLES for the desired selection.
❷
To return to the “main menu” press the “left arrow button”.
• WARNING HOURS - Highlight & press “enter” to view the WARNING TIME
total.
❸
To return to the “main menu” press the “left arrow button”.
• FAULT TIMES - Highlight & press”enter” to view the FAULT TIMES TOTAL.
To return to the “main menu” press the “left arrow button”.
➍
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
HISTORY MENU
MOTOR RUN TIME
WARNING HOURS
FAULT TIMES
❸☞
➍☞
❷☞
❶☞
❶☞
❸☞
➍☞
❷☞
