3. With belt tension relieved, remove belt from electric
clutch pulley (B, figure 16). Removing belt relieves the
tension on the front hitch assembly.
4. Remove mower from tractor hitch brackets (A, figure 17)
by pulling spring-loaded lever (B) forward and lifting up
on hitch. Place mower hitch on ground.

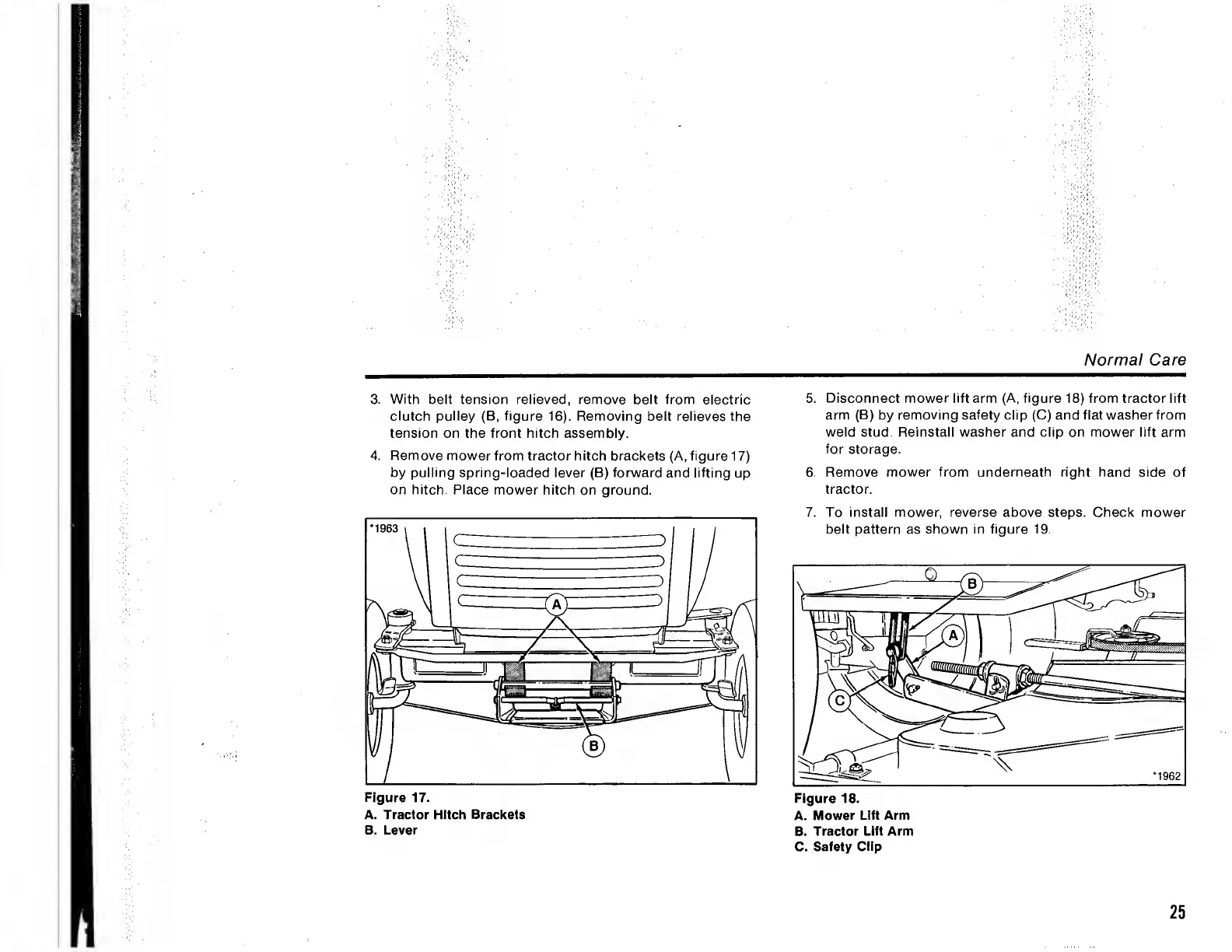

Figure 17.
A. Tractor Hitch Brackets
B. Lever
Normal Care
5. Disconnect mower lift arm (A, figure 18) from tractor lift
arm (B) by removing safety clip (C) and flat washer from
weld stud. Reinstall washer and clip on mower lift arm
for storage.
6. Remove mower from underneath right hand side of
tractor.
7. To install mower, reverse above steps. Check mower
belt pattern as shown in figure 19.
Figure 18.
A. Mower Lift Arm
B. Tractor Lift Arm
C. Safety Clip
25
