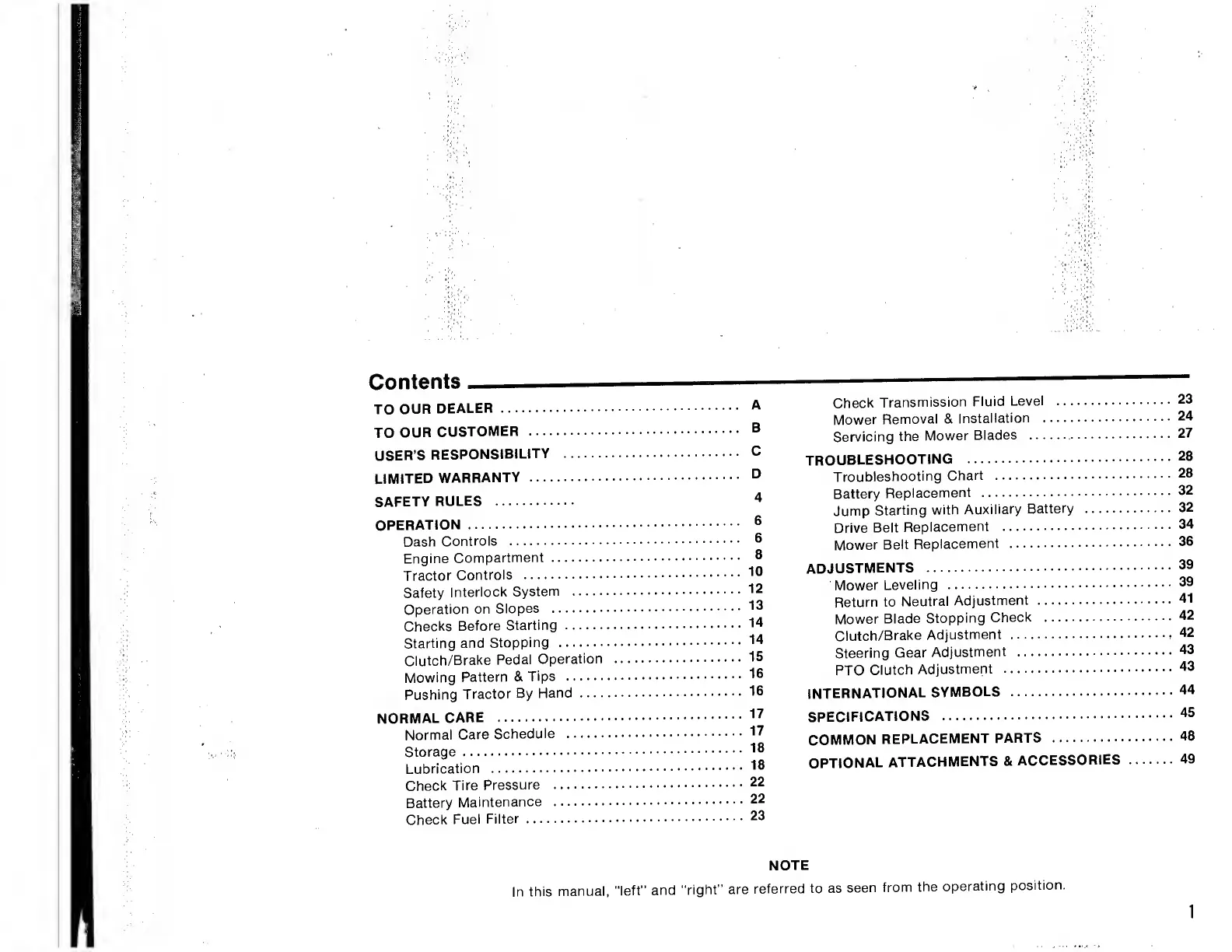

Simplicity 1613H - Table of Contents

Contents-—-
TO OUR DEALER . A
TO OUR CUSTOMER . B
USER’S RESPONSIBILITY . C
LIMITED WARRANTY . D
SAFETY RULES . 4
OPERATION. 6
Dash Controls . 6
Engine Compartment . 8
Tractor Controls . 10
Safety Interlock System . 12
Operation on Slopes . 13
Checks Before Starting . 14
Starting and Stopping . I 4
Clutch/Brake Pedal Operation . 15
Mowing Pattern & Tips . 16
Pushing Tractor By Hand. 16
NORMAL CARE . I 7
Normal Care Schedule . 17
Storage. 1®
Lubrication . 1®
Check Tire Pressure .22
Battery Maintenance . 22
Check Fuel Filter.23
Check Transmission Fluid Level . 23
Mower Removal & Installation . 24
Servicing the Mower Blades . 27
TROUBLESHOOTING . 28
Troubleshooting Chart . 28
Battery Replacement .32
Jump Starting with Auxiliary Battery . 32
Drive Belt Replacement . 34
Mower Belt Replacement . 36
ADJUSTMENTS . 39
Mower Leveling . 39
Return to Neutral Adjustment . 41
Mower Blade Stopping Check . 42
Clutch/Brake Adjustment . 42
Steering Gear Adjustment . 43
PTO Clutch Adjustment .43
INTERNATIONAL SYMBOLS 44
SPECIFICATIONS . 45
COMMON REPLACEMENT PARTS .48
OPTIONAL ATTACHMENTS & ACCESSORIES 49
NOTE
In this manual, "left” and “right” are referred to as seen from the operating position.
