Simplicity 1613H - Mower Removal & Installation

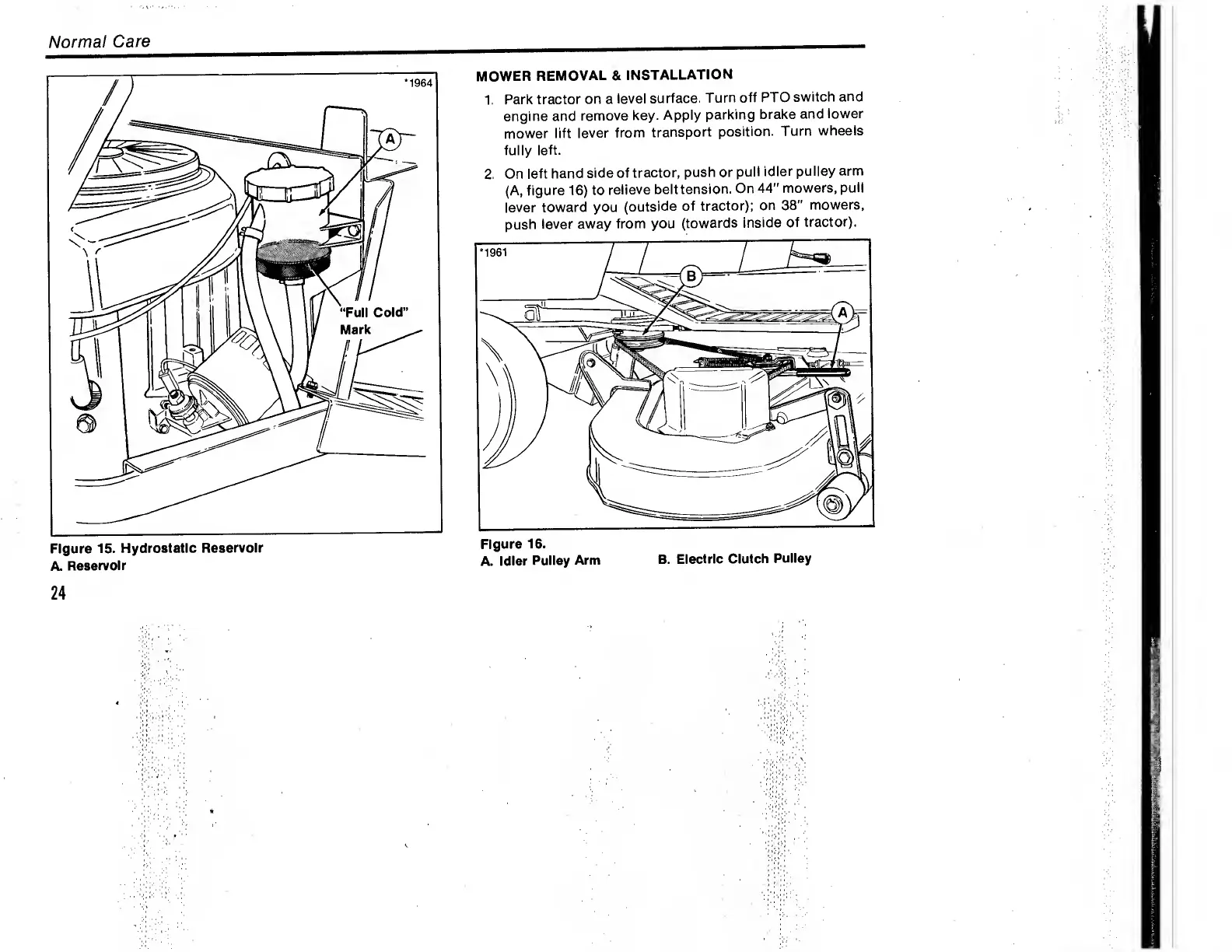

Figure 15. Hydrostatic Reservoir
A. Reservoir
MOWER REMOVAL & INSTALLATION
1. Park tractor on a level surface. Turn off PTO switch and
engine and remove key. Apply parking brake and lower
mower lift lever from transport position. Turn wheels
fully left.
2. On left hand side of tractor, push or pull idler pulley arm
(A, figure 16) to relieve belttension. On 44 " mowers, pull
lever toward you (outside of tractor); on 38" mowers,
push lever away from you (towards inside of tractor).
Figure 16.
A. Idler Pulley Arm
B. Electric Clutch Pulley
