Simplicity 1613H - Adjustments; Mower Leveling

Adjustments__
MOWER LEVELING
^^WARNING
Before checking mower, shut off PTO and engine.
Allow all moving parts to stop. Remove ignition key.
Side-To-Side
1. Park the tractor on a level surface. Make sure mower lift
lever is in the “down” position. Point tires straightahead.
2. Place mower in mid cut position,
3. Turn the blades side-to-side and measure distance from
outside tips of blades to ground. Measurement should
be equal (within 1/8"). For adjustment, refer to figure 29.
a. Loosen outside nut (A, figure 29).
b. Turn eccentric hex nut (B) to raise or lower left-hand
side of mower.
c. Hold eccentric nut (B) and tighten nut (A). Recheck
measurement.
(Continued)

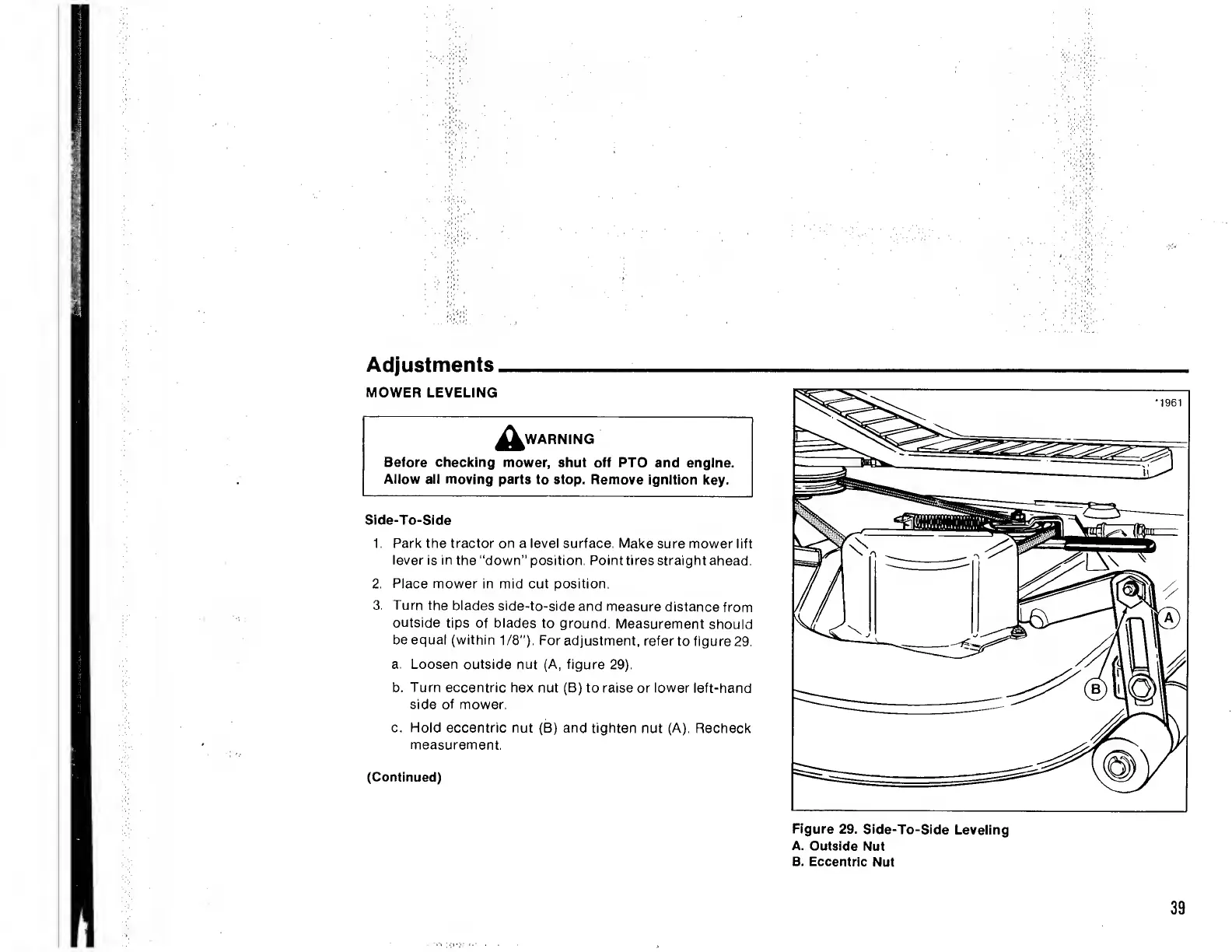

Figure 29. Side-To-Side Leveling
A. Outside Nut
B. Eccentric Nut
