Simplicity 1613H - Return to Neutral Adjustment

RETURN-TO-NEUTRAL ADJUSTMENT
Fully depressing the clutch/brake pedal should return the
transmission control lever to the neutral position.
With engine off, PTO disengaged, and operator in seat, shift
transmission lever into forward (drive) position. Fully
depress the clutch/brake pedal and make sure lever returns
to neutral gate. Turn key switch to ON position and check
that neutral start light (green) is on. Repeat above check after
shifting transmission lever into reverse position.
If adjustment is needed, follow these steps:
1. Shift transmission lever into forward (drive) position and
fully depress clutch/brake pedal,

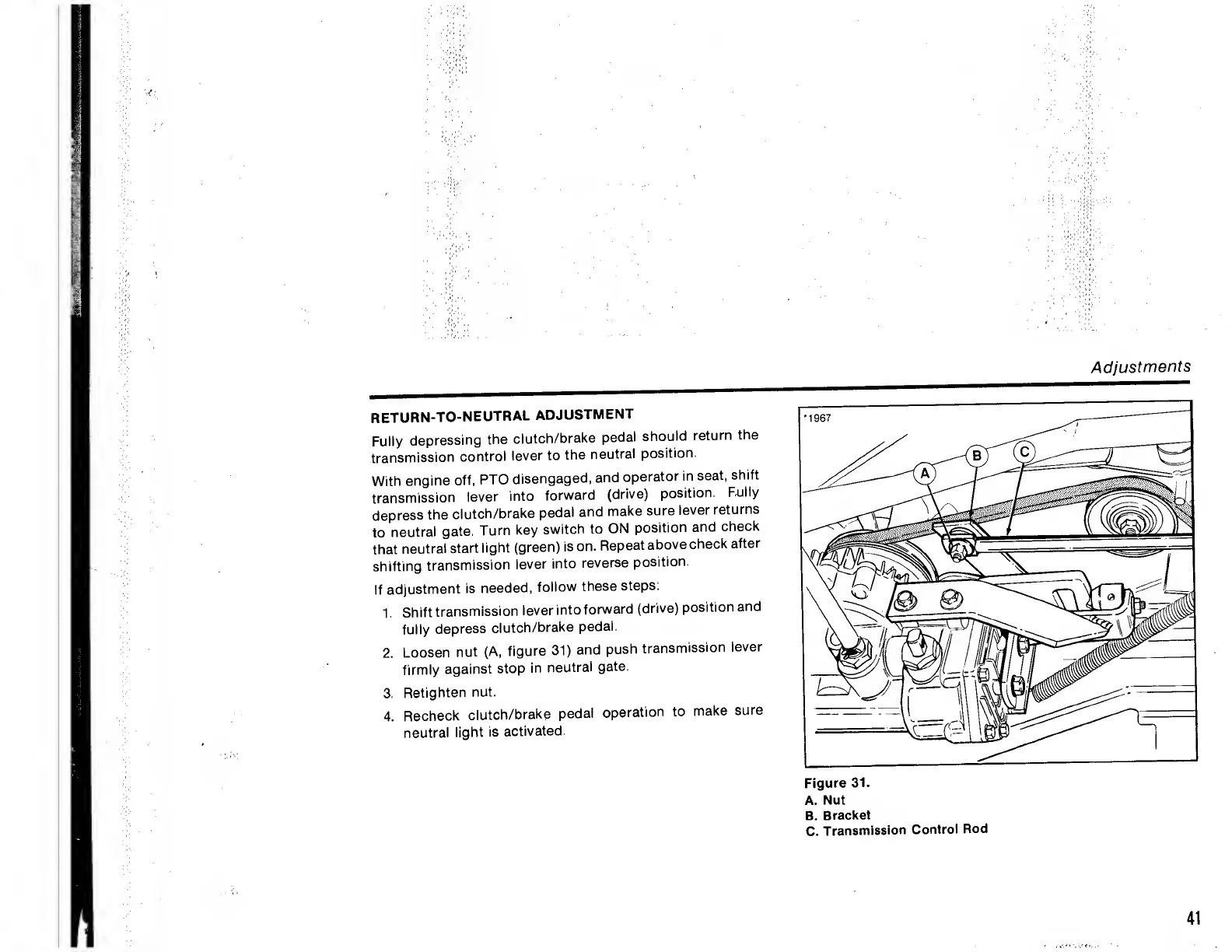

2. Loosen nut (A, figure 31) and push transmission lever
firmly against stop in neutral gate.
3. Retighten nut.
4. Recheck clutch/brake pedal operation to make sure
neutral light is activated.
