Troubleshooting
3.
Attach
one
end
on
one
jumper
cable
to
the
positive
terminal
of
the
booster
battery
(identified
by
a
red
color,
“+”
or
“P”
on
the
battery
case,
post
or
clamp)
and
the
other
end
of
same
cable
to
positive
terminal
of
discharged
battery.
4.
Attach
one
end
of
the
remaining
cable
to
the
negative
terminal
(black
color,
or
“N”)
of
the
discharged
battery,
and
the
other
end
to
a
bare
metal
surface
on
the
frame
of
your
tractor
AWAY
FROM
the
battery
compartment
(do
not
connect
directly
to
negative
post
of
booster
battery).
Take
care
that
clamps
from
one
cable
do
not
inadvertently
touch
the
clamps
on
the
other
cable.
Do
not
lean
over
the
battery
when
making
the
connection.
5.
T
he
tractor
with
discharged
battery
should
now
start.
Reverse
the
jump
starting
procedure
exactly
to
remove
the
jumper
cables.
Then
reinstall
the
vent
caps
and
throw
the
cloths
away
as
they
may
have
corrosive
acid
on
them.
THIS
HOOK-UP
FOR
NEGATIVE
GROUND
VEHICLES
M582

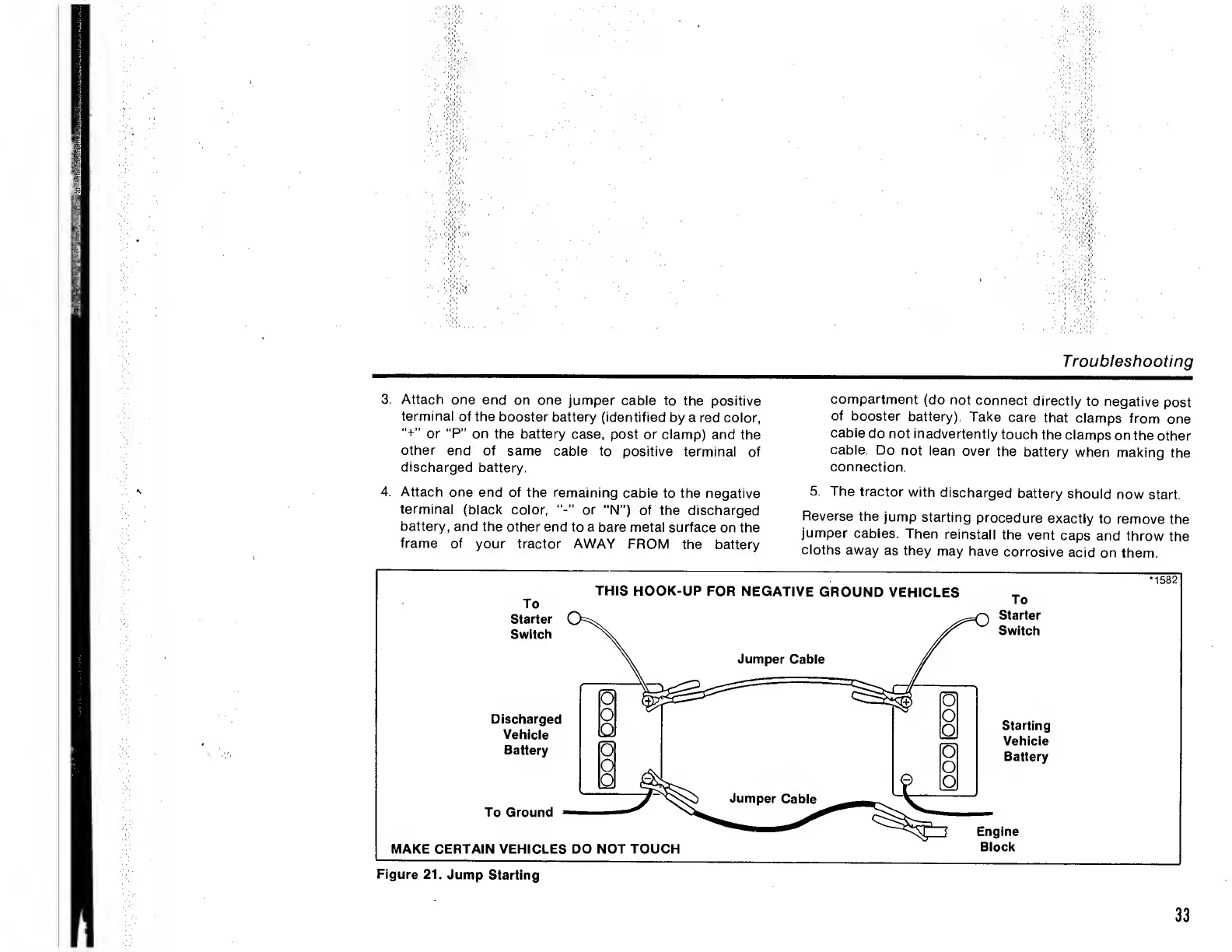

Figure
21.
Jump
Starting
33
