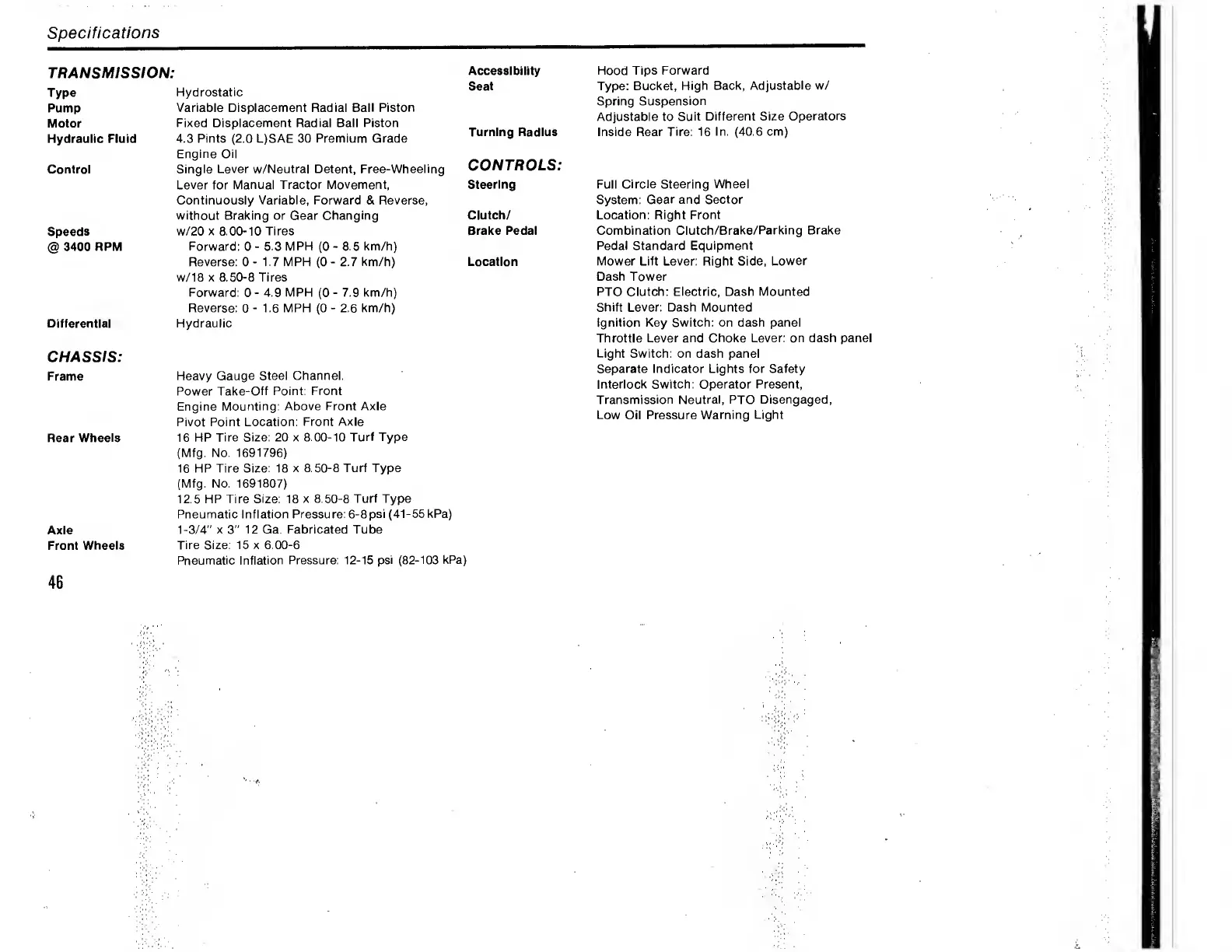

Specifications
TRANSMISSION:
Type Hydrostatic
Pump Variable Displacement Radial Ball Piston
Motor Fixed Displacement Radial Ball Piston
Hydraulic Fluid 4.3 Pints (2.0 L)SAE 30 Premium Grade
Engine Oil
Control Single Lever w/Neutral Detent, Free-Wheeling
Lever for Manual Tractor Movement,
Continuously Variable, Forward & Reverse,
without Braking or Gear Changing
Speeds w/20 x 8.00-10 Tires
@ 3400 RPM Forward: 0 - 5.3 MPH (0 - 8.5 km/h)
Reverse: 0 - 1.7 MPH (0 - 2.7 km/h)
w/18 x 8.50-8 Tires
Forward: 0 - 4.9 MPH (0 - 7.9 km/h)
Reverse: 0 - 1.6 MPH (0 - 2.6 km/h)
Differential Hydraulic
CHASSIS:
Frame Heavy Gauge Steel Channel.
Power Take-Off Point: Front
Engine Mounting: Above Front Axle
Pivot Point Location: Front Axle
Rear Wheels 16 HP Tire Size: 20 x 8.00-10 Turf Type
(Mfg. No. 1691796)
16 HP Tire Size: 18 x 8.50-8 Turf Type
(Mfg. No. 1691807)
12.5 HP Tire Size: 18 x 8.50-8 Turf Type
Pneumatic Inflation Pressure: 6-8psi (41-55kPa)
Axie 1-3/4" x 3" 12 Ga. Fabricated Tube
Front Wheels Tire Size: 15 x 6.00-6
Pneumatic Inflation Pressure: 12-15 psi (82-103 kPa)
Accessibility
Seat
Turning Radius
CONTROLS:
Steering
Clutch/
Brake Pedal
Location
46
Hood Tips Forward
Type: Bucket, High Back, Adjustable w/
Spring Suspension
Adjustable to Suit Different Size Operators
Inside Rear Tire: 16 In. (40.6 cm)
Full Circle Steering Wheel
System: Gear and Sector
Location: Right Front
Combination Clutch/Brake/Parking Brake
Pedal Standard Equipment
Mower Lift Lever: Right Side, Lower
Dash Tower
PTO Clutch: Electric, Dash Mounted
Shift Lever: Dash Mounted
Ignition Key Switch: on dash panel
Throttle Lever and Choke Lever: on dash panel
Light Switch: on dash panel
Separate Indicator Lights for Safety
Interlock Switch: Operator Present,
Transmission Neutral, PTO Disengaged,
Low Oil Pressure Warning Light
