Assemble the Deflector
1. See Figure 28. Attach the deflector (C) to the dis-
charge chute with two screws (H), washers (G), spac-
ers (F), washers (A), lockwashers (E) and nuts (D).
2. Position the bolt (I) and washer (A), then thread the
knob (B) onto the bolt (I)
Assemble the Hitch Brackets and Spacers
1. Mount the hitch brackets and spacer to the inside of
the snowthrower capscrews and flange locknuts as
shown in Figures 29 - 31.
17
Broadmoor Snowthrower Assembly

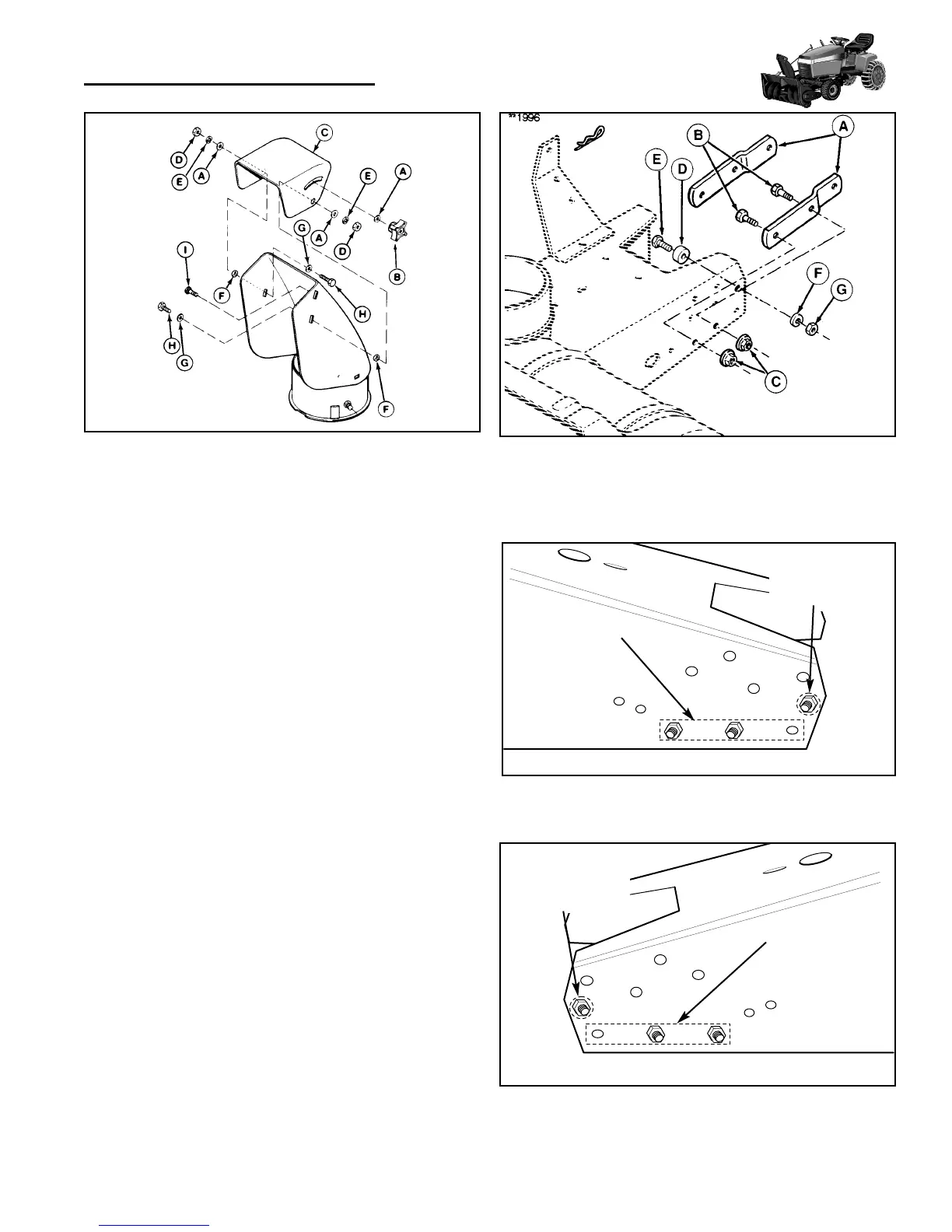

Figure 28. Discharge Chute
A. Washer, 5/16 F. Spacer
B. Knob G. Washer, 5/16
C. Deflector H. Screw, 5/16
D. Nut, 5/16 I. Carriage Bolt, 5/16
E. Lockwasher, 5/16
Figure 29. Installing the Hitch Brackets and Spacers
A. Hitch Brackets E. Capscrew, 1-1/4"
B. Capscrew, 1" F. Lockwasher
C. Locknut, Flange G. Nut
D. Spacers
Figure 30 Hole Pattern - Left Side
Figure 31. Hole Pattern - Right Side.
NOTE: Support Arm Removed For Clarity
Hitch Bracket
(Mounted On
Inside)
Hitch Bracket
(Mounted On
Inside)
Spacer
(Mounted On
Inside)
Spacer
(Mounted On
Inside)
To Next Page
