Landlord-Hitch Installation

Figure 54. Installing Lift Rod to Manual Lift Lever

A. Front Attachment Lift Rod C. Spring Clip

B. Manual Lift Lever

MANUAL LIFT MODELS

1. Loosen the hardware securing the lift guide bracket

(B, Figure 52) and remove the hair pin clip (C, Figure

52) from the left side of the lift lever assembly.

2. Partially remove the lift lever assembly from the

frame and install the rear hitch bracket (A, Figure 53),

washers (D), and hair pin clips (C).

3. Reinstall the lift lever assembly.

HITCH INSTALLATION

1. Increase front tire pressure to 20 psi (138 kPa) to

compensate for added weight. Be sure both tires

have equal pressure.

2. From the front of tractor, slide the hitch under the

tractor.

3. See Figure 55. Turn the wheels fully left and lift the

front hitch bar (A) up onto the tractor brackets (B).

Make sure it is fully seated into the tractor brackets.

Install the long hitch pin (C) through the bracket (bot-

tom rear holes) and secure it with the safety clip (D).

4. See Figure 53. Install the rear bracket (A), spring

clips (C) and washers (D) onto the lift lever shaft, if

not done already.

5. Secure the hitch assembly (E, Figure 53) to the rear

bracket (A) inserting pin (F) through the top hole.

The hitch assembly is now installed to the tractor and

you may proceed to Snowthrower Installation.

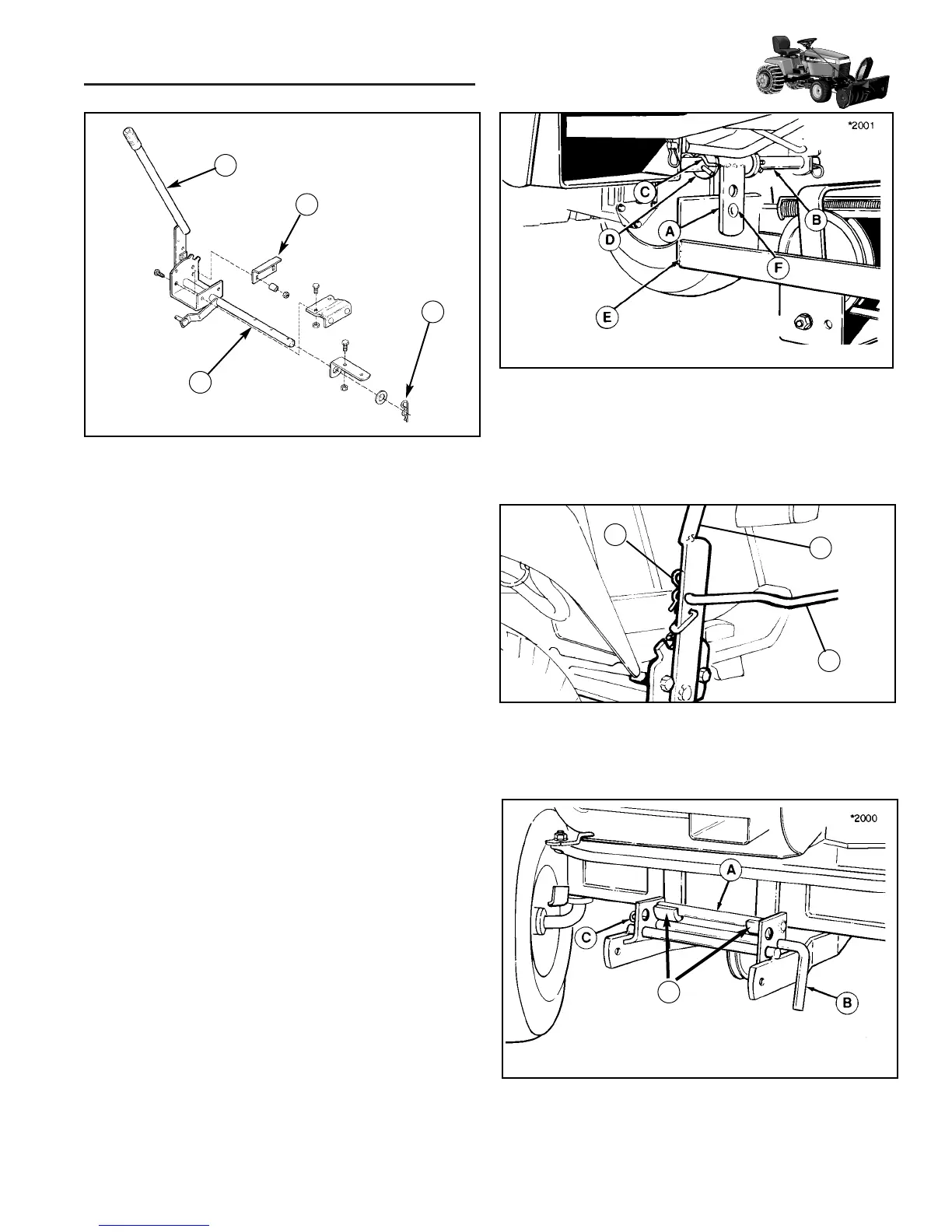

Figure 53. Installing Hitch to Rear Bracket

A. Rear Hitch Bracket D. Washer

B. Lift Lever Rod E. Hitch

C. Hair Pin Clip F. Clevis Pin

Figure 52. Manual Lift Lever Assembly

A. Lift Lever Assembly. C. Hair Pin Clip

B Guide Bracket D. Shaft Assembly.

Figure 55. Installing Hitch to Front of Tractor

A. Hitch Bar C. Safety Clip

B. Hitch Pin D. Tractor Brackets
