SNOWTHROWER INSTALLATION

1. See Figure 57. Align snowthrower bracket (A) with

front tractor hitch (B).

2. Before attaching the snowthrower bracket to the

hitch, install the belt from the hitch idler pulley (B,

Figure 58) to the snowthrower pulley as shown in

Figure 58.

Do not attempt to install belt on electric clutch pulley

at this time.

3. See Figure 57. Attach snowthrower bracket (A) to

hitch using clevis pins (C) and safety clips (D).

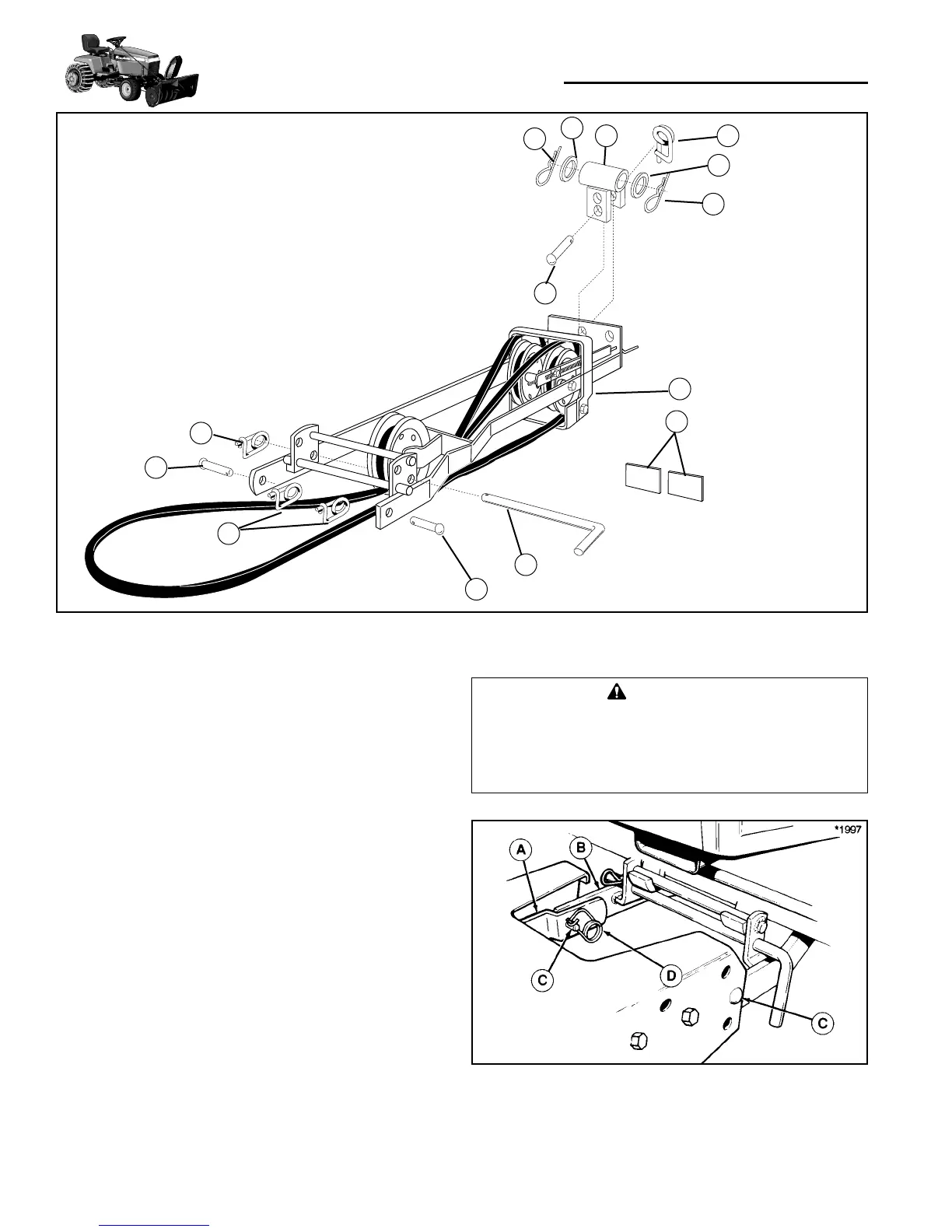

Figure 57. Landlord/GT/2700/1700 Series

A. Snowthrower Bracket C. Clevis Pin

B. Hitch Arms D. Safety Clips

Figure 56. Hitch Assembly..

Part No. 1692040 for Electric Lift

A. Hitch Assembly..

B. Rear Support Assembly..

C. Washers (Qty. 2)

D. Hairpin Clip (Qty. 2)

E. Pin

F. Spring Clip (Qty. 4)

G. Clevis Pin, 3/8 (Qty. 2)

H. Rod

I. Reflectors (Qty. 2)

Attach reflectors (I) to rear lip of

seat deck. If snow cab is installed,

make sure reflectors are not

obstructed.

Install Pin “E” Through

the Bottom Hole.

CAUTION

After snowthrower installation if the tractor hood is

opened, it will come into contact with the

snowthrower. To protect the hood finish cover the

discharge chute with a towel or blanket.

Landlord-Snowthrower Installation
