1. Remove the mower deck.
2. Pry up and discard the two rear plastic ratchet fasten-
ers holding the foot rest mat on the left and right
footrests.
3. Install the pivot bracket (A) to the underside of the left
footrest using capscrews (B) and nuts (C). Tighten
securely.
4. Assembly bracket (D) to the underside of the right
footrest using capscrews (B) and nuts (C). Tighten
securely.
5. Loosely assemble the guide (E) to the quadrant (F)
using two capscews (H), spacers (I), and nuts (C).
6. For snowthrower and plow use, install the rear hitch
bracket, hairpin clips and washers on the pivot rod
(parts supplied with hitch).
7. Slide the pivot rod through the pivot bracket (A) and
install the washer (J) and hairpin clip (K).
8. Mount the quadrant (F) onto the lift bracket (D).
9. Tighten the capscrews (H) and nuts (C) mounting the
guide (E) to the lift lever assembly. Be sure lift lever
assembly is securely clamping the foot rest and the
lever latch is unobstructed.
WARNING
Before performing any installation or adjustment,
turn off the engine and let the unit come to a com-
plete stop. Remove the key and disconnect the
spark plug wire to prevent the unit from accidental-
ly starting and causing personal injury.
Kit Contents:
Ref. Qty. Part No. Description
A 1 1704712 Pivot Bracket
B 4 1923325 Capscrew, 5/16-18 x 7/8
C 6 1924433 Nut, 5/16-18
D 1 1704713 Lift Bracket
E 1 1704715 Guide
F 1 1665591 Quadrant
G 1 1704718 Lift Lever Assy.
H 2 1921977 Capscrew, 5/16-18 x 1-1/4
I 2 1704716 Spacer
J 1 911386 Flat Washer
K 1 106788 Clip
Not shown
4 1704351 Fastener, Footrest Mat

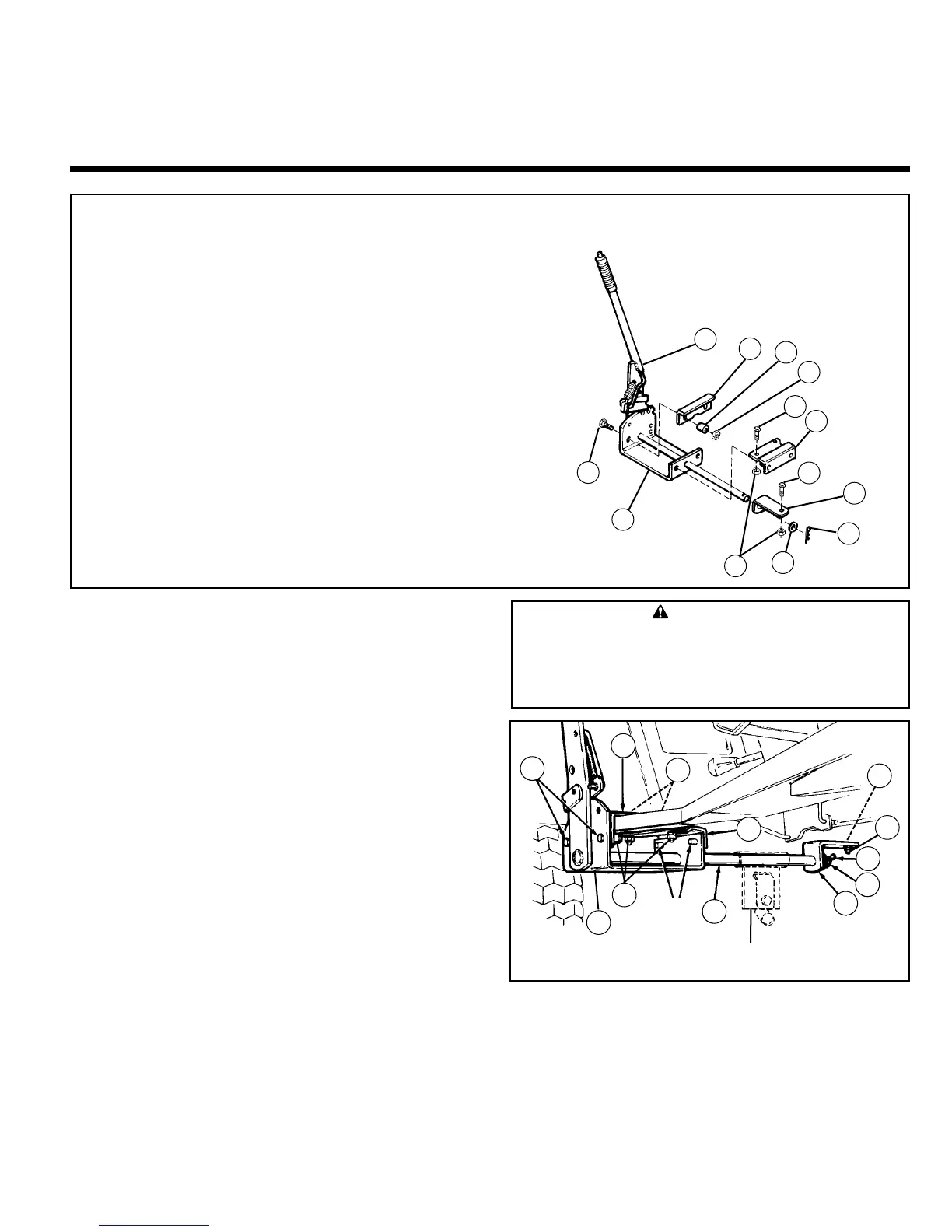

Lift Lever Installation
G
H
F
E
I
C
B
C
D
A
B
K
J
Studs
Rear
Hitch Bracket
A
J
K
B
C
B
D
G
E
C
F
H
Installation
Instructions
Lift Lever Kits
Mfg. Nos. 1691832 & 1692623
BROADMOOR / 1600 / 2600 SERIES INSTALLATION - 1691832
