Kit Contents:
Ref. Qty. Part No. Description
A 1 1704715 Guide
B 1 1665591 Quadrant
C 3 1921977 Capscrew, 5/16-18 x 1-1/4
D 1 1921719 Capscrew, 5/16-18 x 2-1/2
E 1 1704716 Spacer,
11/32 ID x 3/4 OD x 7/16
F 3 1675795 Spacer
21/64 ID x 5/8 OD x 1/2
G 1 1674669 Spacer
25/64 ID x 5/8 OD x 1-5/32
H 4 1919438 Nut, Esna, Lock, 5/16-18
I 1 1704718 Lift Lever Assy.
1. Remove the mower deck.
2. Remove and retain the up-stop bracket and mounting
hardware.
NOTE: Reinstall the up-stop bracket for mower use.
3. Loosely assemble the guide (A) to the quadrant (B)
using capscrews (C, D), spacers (E, F, G), and nuts
(H).
4. Slide the lift lever pivot rod through the hole in the
right side of the frame.
5. Install the rear support assembly, washers, and hair
pin clips (supplied with snowthrower or dozer blade)
on the lift lever pivot rod.
6. Slide the lift lever pivot rod through the hole in the left
side of the frame.
7. Secure the quadrant to the frame using spacers (F),
capscrews (C), and nuts (H).
8. Tighten the guide plate (A) and quadrant (B) hard-
ware making sure the lever latch movement is unob-
structed.
WARNING
Before performing any installation or adjustment,
turn off the engine and let the unit come to a com-
plete stop. Remove the key and disconnect the
spark plug wire to prevent the unit from accidental-
ly starting and causing personal injury.

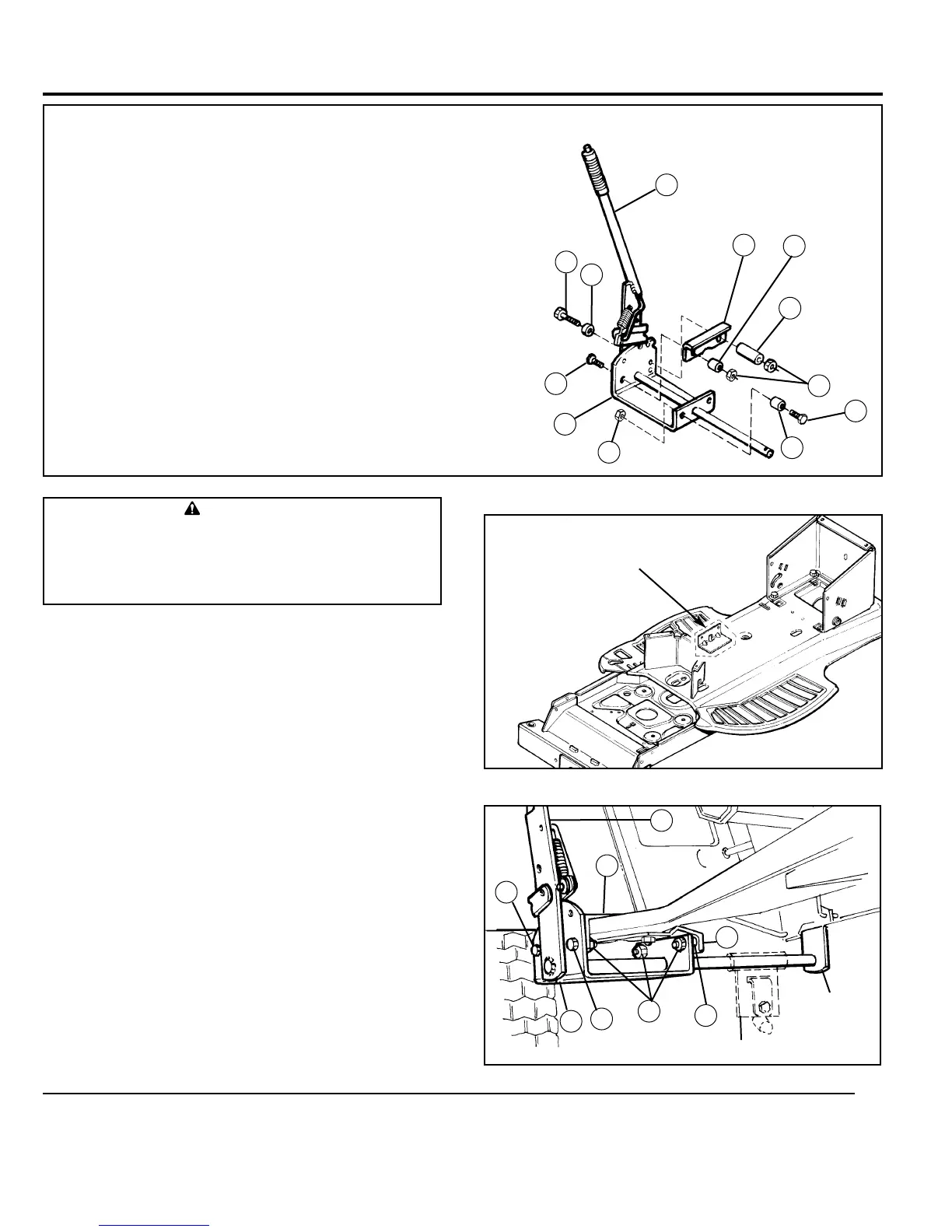

Lift Lever Installation
A
I
A
E
G
H
C
F
H
B
C
D
F
I
B
C
H
C
F
D
Rear Hitch Bracket
Frame
Bracket
Upstop Bracket Location
Up-Stop Bracket
Located Under
Right Side of
Frame
REGENT / 500 / 2500 SERIES INSTALLATION - 1692623
