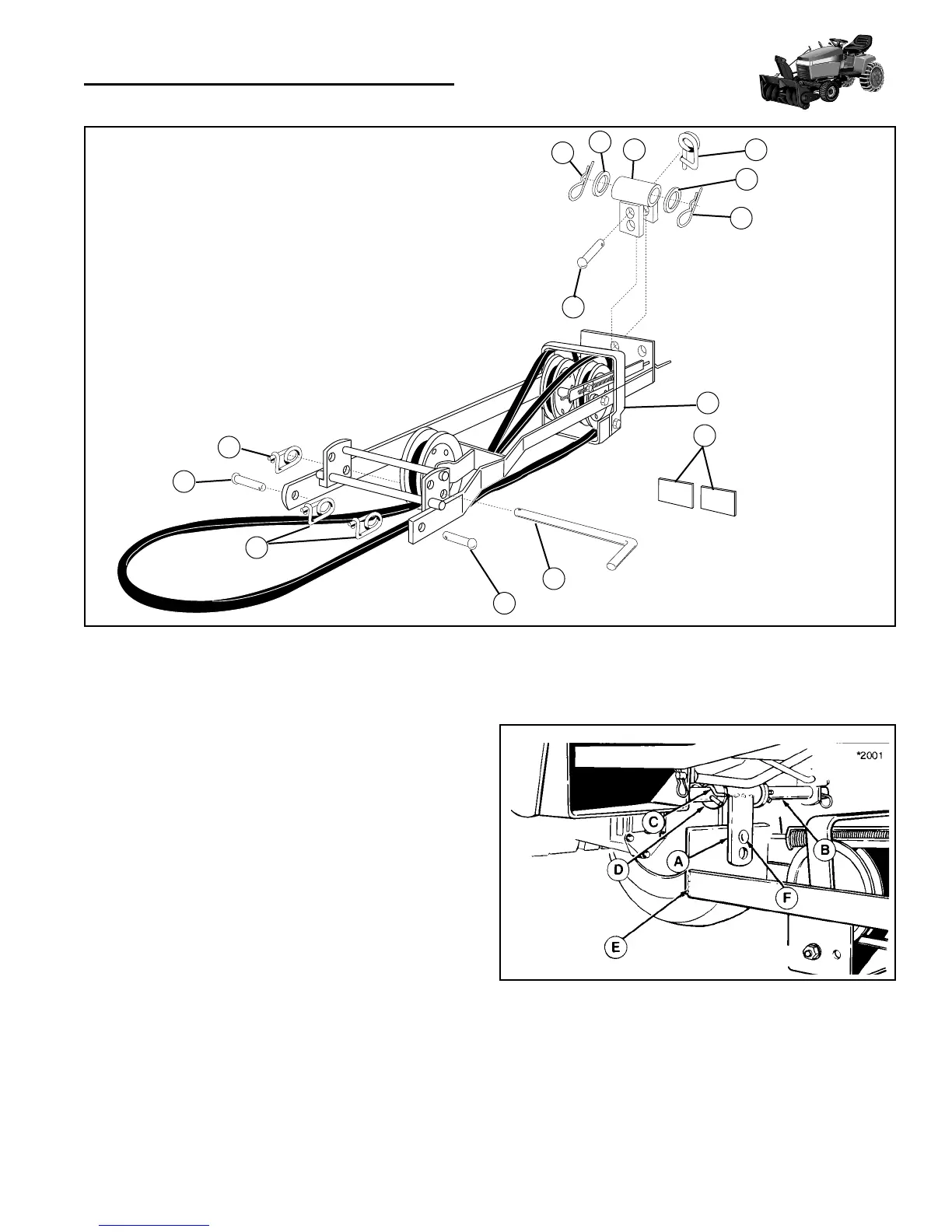

Figure 34. Hitch Assembly..
Part No. 1692040 for Electric Lift
Part No. 1692041 for Manual Lift; Broadmoor/LT/2600/1600 Series
A. Hitch Assembly
B. Rear Hitch Bracket
C. Washers (Qty. 2)
D. Hairpin Clip (Qty. 2)
E. Pin
F. Spring Clip (Qty. 4)
G. Clevis Pin, 3/8 (Qty. 2)
H. Rod
I. Reflectors (Qty. 2)
Attach reflectors (I) to rear lip of
seat deck. If snow cab is installed,
make sure reflectors are not
obstructed.
Insert Pin “E” Through
the Top Hole
G
F
I
A
E
D
C
F
D
C
B
F
G
H
4. See Figure 34. Install the rear hitch bracket (B),
spring clips (D) and washers (C) onto the lift lever
shaft, if not done already.
5. See Figure 34 & 35. Secure the hitch assembly to
the rear bracket inserting pin “E” through the top hole
and securing with Spring Clip (F).
The hitch assembly is now installed to the tractor and
you may proceed to Snowthrower Installation.
19
Figure 35. Installing Hitch to Rear Bracket
A. Rear Hitch Bracket D. Washer
B. Lift Lever Rod E. Hitch
C. Spring Clip F. Clevis Pin
Broadmoor-Hitch Installation
To Next Page
