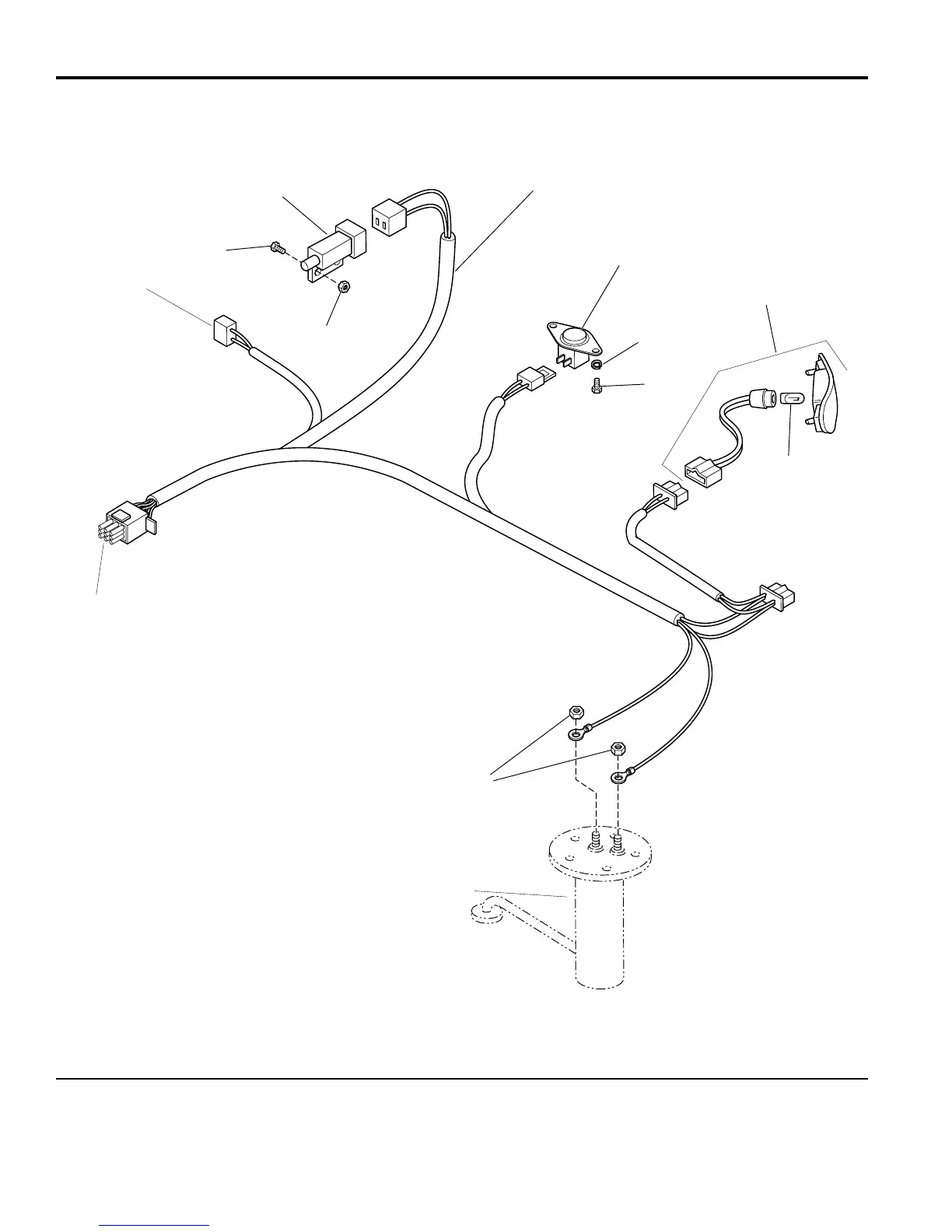

Simplicity 2000 Series - Electrical Groups Lower Harness

Fuel Gauge
To Upper
Harness
To Rear PTO
(Optional)
5
1
2
3
4
7
8
9
10
7
6
20
TP 400-2215-01-LG-SMA
© Copyright 2000 Simplicity Manufacturing, Inc. All Rights Reserved.
Electrical Group - Lower Harness
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-LG42810A
The above parts group applies to the following Mfg. Nos.:
1693112 Legacy 24.5 HP Tractor
1693120 Legacy 24.5 HP Tractor (Export)
1693130 2024D 24.5 HP Tractor
1693138 2924D 24.5HP Tractor
1693446 2924D 24.5HP Tractor (Export)
1693738 Legacy 24,5 CV Hydro Diesel Tractor (Export)
