Page #66 background image
Capscrew used to
mount Gauge Wheels
- see 60" Mower
Housing, Cover &
Gauge Wheel Group.
1
2
33
3
4
5
5
4
5
4
64
TP 400-2215-01-LG-SMA
© Copyright 2000 Simplicity Manufacturing, Inc. All Rights Reserved.

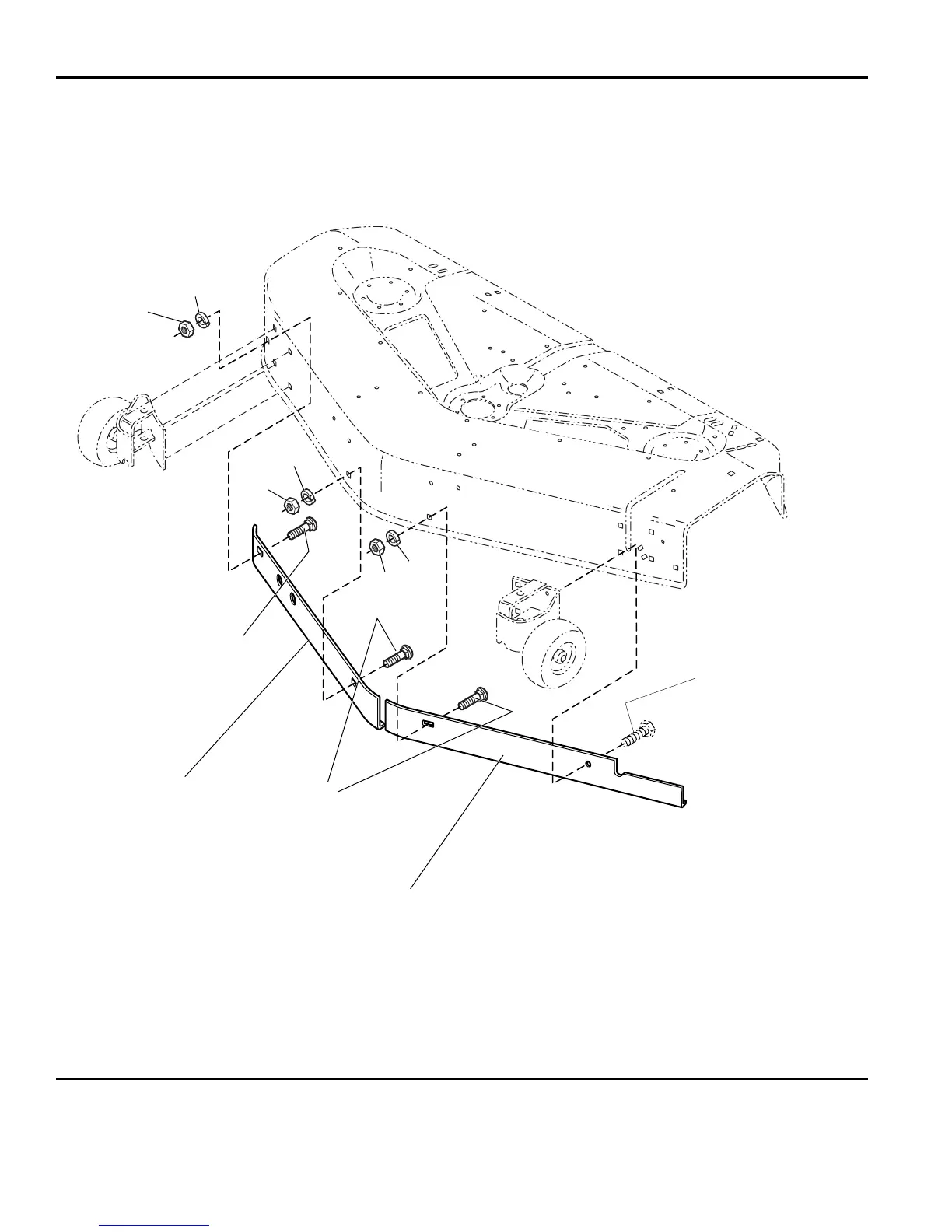

48” Mower - Baffles (Export Models)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-LG42832A
The above parts group applies to the following Mfg. Nos.:
1693252 48” Mower Deck (Exp)
1693420 48” Mower Deck (Exp)
1687641 Legacy 48” Baffle Kit
