Simplicity 5200 Series User Manual

Troubleshooting & Repair

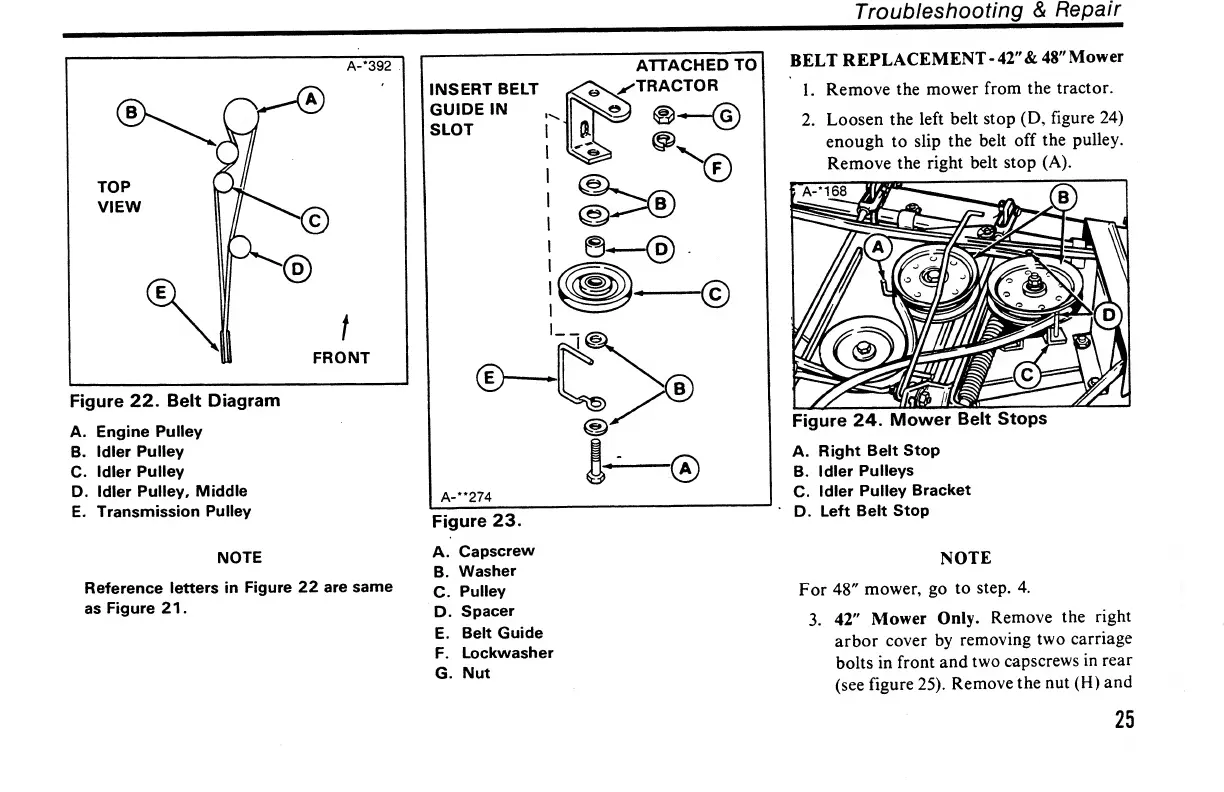

A. Engine Pulley
B. Idler Pulley
C. Idler Pulley
D. Idler Pulley, Middle
E. Transmission Pulley
NOTE
Reference letters in Figure 22 are same
as Figure 21.
A. Capscrew
B. Washer
C. Pulley
D. Spacer
E. Belt Guide
F. Lockwasher
G. Nut
BELT REPLACEMENT-42"& 48"Mower
1. Remove the mower from the tractor.
2. Loosen the left belt stop (D, figure 24)
enough to slip the belt off the pulley.
Remove the right belt stop (A).
A. Right Belt Stop
B. Idler Pulleys
C. Idler Pulley Bracket
D. Left Belt Stop
NOTE
For 48" mower, go to step. 4.
3. 42" Mower Only. Remove the right
arbor cover by removing two carriage
bolts in front and two capscrews in rear
(see figure 25). Remove the nut (H) and
