Troubleshooting & Repair

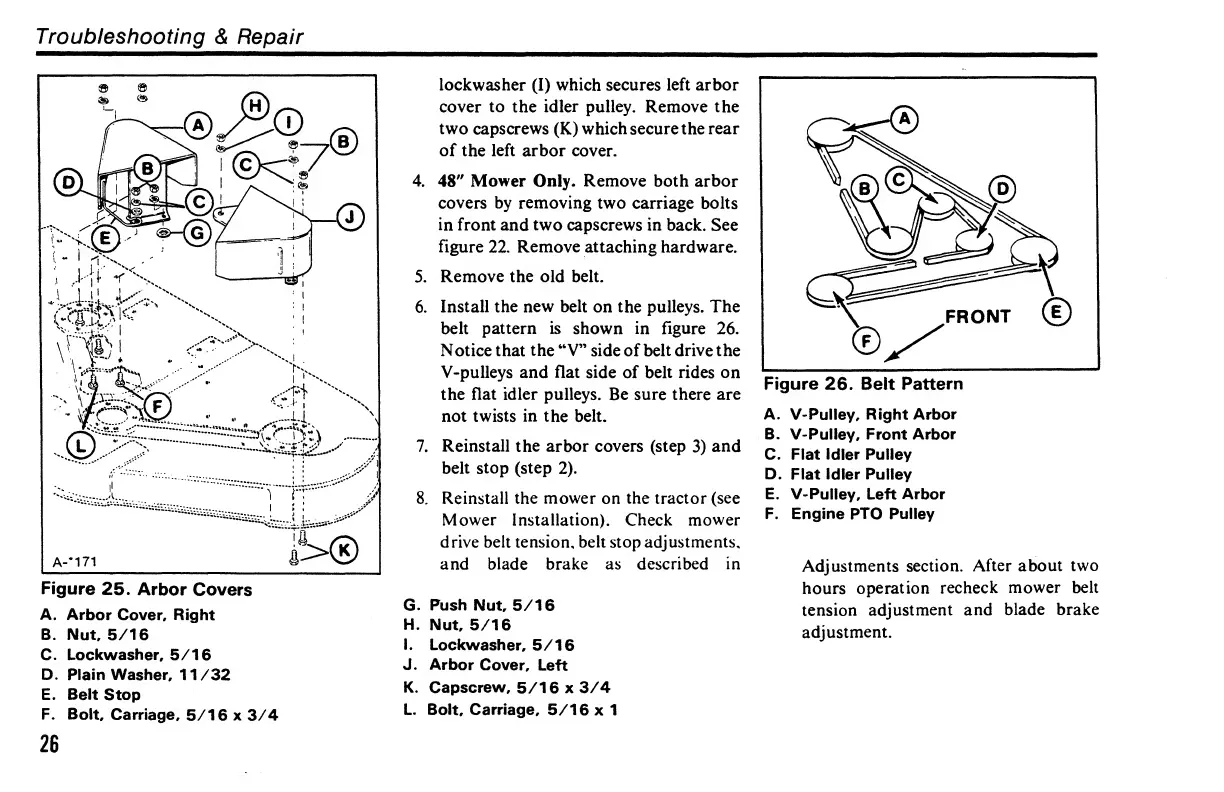

A. Arbor Cover, Right
B. Nut, 5/16
C. Lockwasher, 5/16
D. Plain Washer, 11/32
E. Belt Stop
F. Bolt, Carriage, 5/16 x 3/4
26
lockwasher (I) which secures left arbor
cover to the idler pulley. Remove the
two capscrews (K) which secure the rear
of the left arbor cover.
4. 48" Mower Only. Remove both arbor
covers by removing two carriage bolts
in front and two capscrews in back. See
figure 22. Remove attaching hardware.
5. Remove the old belt.
6. Install the new belt on the pulleys. The
belt pattern is shown in figure 26.
Notice that the “V” side of belt drive the
V-pulleys and flat side of belt rides on
the flat idler pulleys. Be sure there are
not twists in the belt.
7. Reinstall the arbor covers (step 3) and
belt stop (step 2).
8. Reinstall the mower on the tractor (see
Mower Installation). Check mower
drive belt tension, belt stop adjustments,
and blade brake as described in
G. Push Nut, 5/16
H. Nut, 5/16
I. Lockwasher, 5/16
J. Arbor Cover, Left
K. Capscrew, 5/16 x 3/4
L. Bolt, Carriage, 5/16 x 1
A. V-Pulley, Right Arbor
B. V-Pulley, Front Arbor
C. Flat Idler Pulley
D. Flat Idler Pulley
E. V-Pulley, Left Arbor
F. Engine PTO Pulley
Adjustments section. After about two
hours operation recheck mower belt
tension adjustment and blade brake
adjustment.
