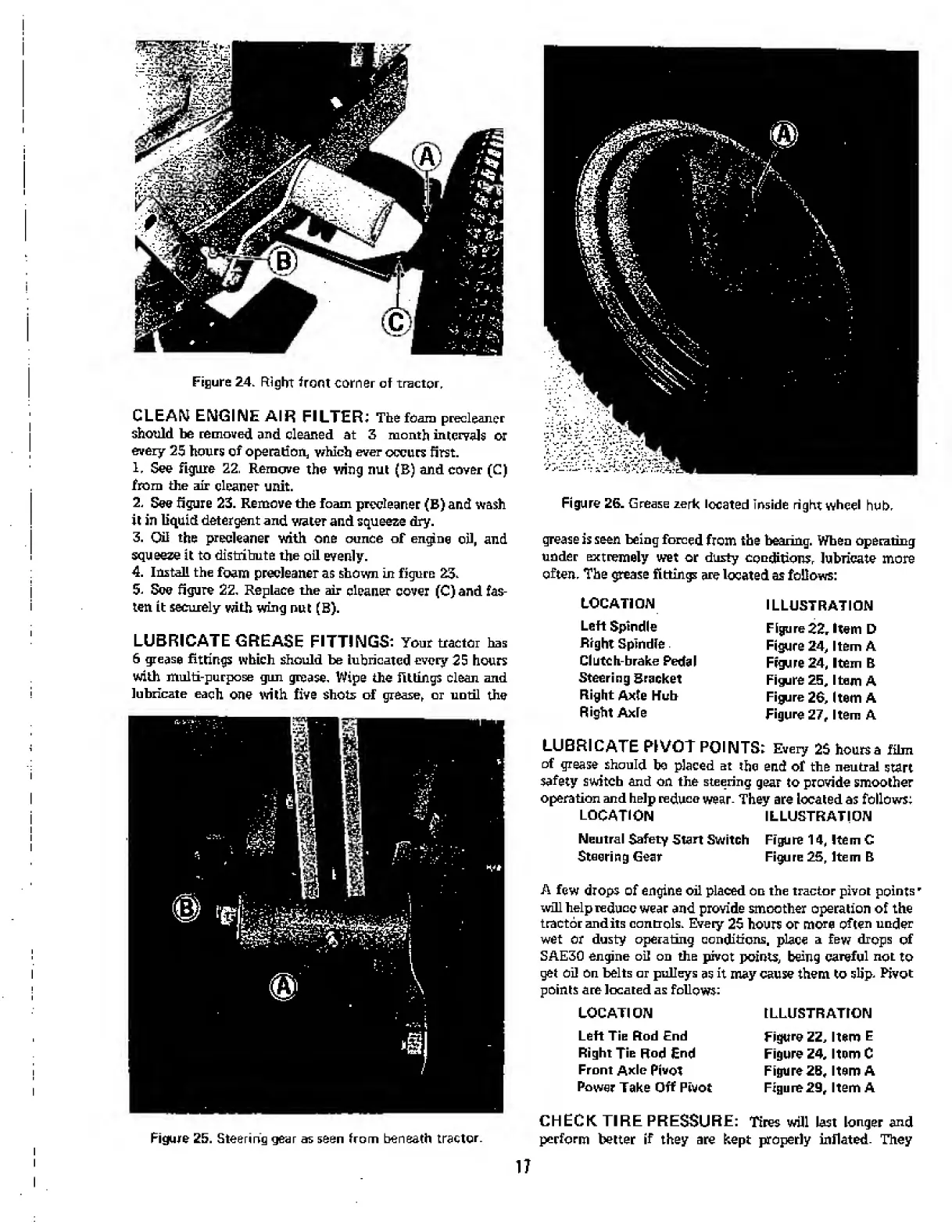

Figure 24. Right front corner of tractor,
CLEAN ENGINE AIR FILTER; The foam precleaner
should be removed and cleaned at 3 month intervals or
every 25 hours of operation which ever occurs first.
1. See figure 22. Remove the wing nut (B) and cover (C)
from the air cleaner unit.
2. See figure 23. Remove the foam precleaner (B) and wash
it in liquid detergent and water and squeeze dry.
3. OLE the precleaner with one ounce of engine oil, and
squeeze it to distribute the oil evenly.
4. Install the foam precleaner as shown in figure 23.
5. See figure 22, Replace the air cleaner cover (C) and fas¬
ten it securely with wing nut (B).
LUBRICATE GREASE FITTINGS: Your tractor has
6 grease fittings which should be lubricated every 25 hours
with multi-purpose gun grease, Wipe the fittings clean and
lubricate each one with five shots of grease f cr until the
Figure 25. Steering gear as seen from beneath tractor.
Figure 26. Grease zerk located Inside right wheel hub.
grease is seen being forced from the bearing. When operating
under extremely wet or dusty conditions, lubricate more
often. The grease fitting are located a s follows:
LOCATION
Left Spindle
Right Spindle.
Clutch-brake Pedal
Steering Bracket
Right Axle Hub
Right Axle
ILLUSTRATION
Figure 22, Item D
Figure 24, Item A
Figure 24, Item B
Figure 25, Item A
Figure 26, Item A
Figure 27, Item A
LUBRICATE PIVOT POINTS: Every 25 hoursa film
of grease should be placed at the end of the neutral start
safety switch and on the steering gear to provide smoother
operation and help reduce wear. They are located as follows;
LOCATION ILLUSTRATION
Neutral Safety Start Switch Figure 14, Item C
Steering Gear Figure 25, Item B
A few drops of engine oil placed on the tractor pivot points'
will help reduce wear and provide smoother operation of the
tractor audits controls. Every 25 hours or more often under
wet or dusty operating conditions, place a few drops of
SAE30 engine oil □□ the pivot points, being careful not to
get oil on belts or pulleys as it may cause them to slip. Pivot
points are located as follows:
LOCATION
Left Tie Rod End
Right Tie Rod End
Front Axle Pivot
Power Take Off Pivot
ILLUSTRATION
Figure 22, Item E
Figure 24, Itam C
Figure 2B, Itam A
Figure 29, Item A
CHECK TIRE PRESSURE: Tires will last longer and
perform better if they are kept properly inflated- They
17
