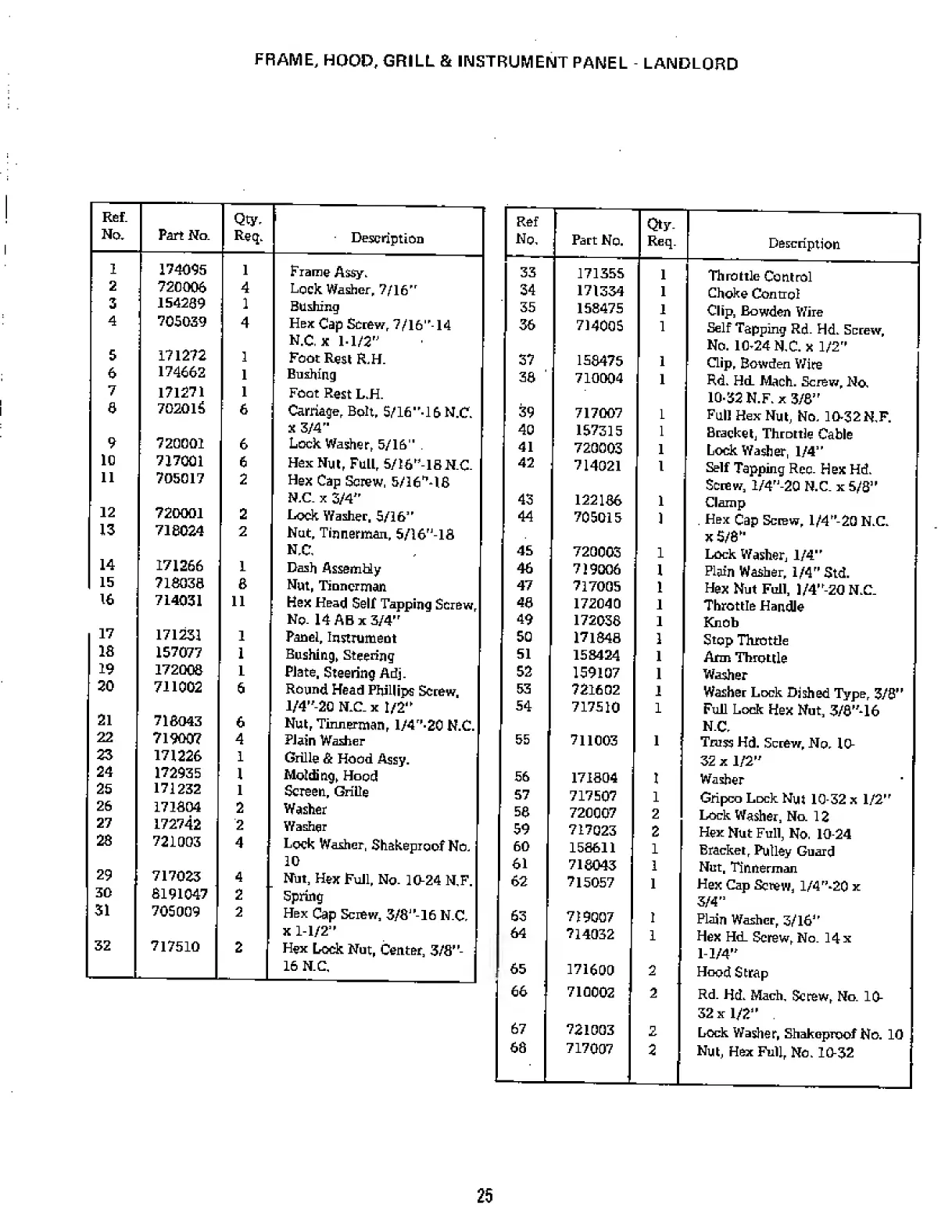

FRAME, HOOD, GRILL & INSTRUMENT PANEL - LANDLORD
Ref.
No. Part No.
Qty,
Req.
Description
I
174095 1
Frame Assy.
2
720006 4
Lock Washer, 7/16"
3 154269 1
Bushing
4
705039
4
Hex Cap Screw, 7/16”-14
N.C. x 1-1/2"
5 171272
1
Foot Rest R,H.
6
174662
1 Bushing
7
171271 1
Foot Rest L.H.
8 702015
6
Carriage, Bolt, S/16”-16N.C.
x 3/4' ■
9 720001
6
Lock Washer, 5/16" .
10
717001
6
Hex Nut, Full, 5/16"16 N.C.
11
705017
2
Hex Cap Screw, 5/16 ”-18
N.C. x 3/4"
12
720001
2
Lock Washer, 5/16”
13
718024 2
Nut, Tinnerman, 5/16"-l8
N,C,
14
171266 1
Dash Assembly
15
713038
6
Nut, Tinnerman
16
714031 11
Hex Head Self Tapping Screw,
No. 14 AB x 3/4"
17
171231 1
Panel, Instrument
13
157077
1
Bushing, Steering
19
172008 1
Plate, Steering Adj.
20
711002
6
Round Head Phillips Screw,
l/4"-2Q N.C.x 1/2”
21
716043
6
Nut, Tinnerman, 1/4 ”-20 N.C.
22
719007
4
Plain Washer
23
171226 1
Grille & Hood Assy.
24
172935
1
Molding, Hood
25 171232
1
Screen, Grille
26
171304
2
Washer
27
172742 2
Washer
28
721003
4
Lock Washer, Shakeproof No.
10
29
717023 4
Nut, Hex Full, No. 10-24 N,F.
30
6191047
2
Spring
31
705009 2
Hex Cap Screw, 3/8”-16 N.C,
x 1-1/2”
32
717510
2
Hex Lock Nut, Center, 3/8”- j
16 N.C, |
Ref
No,
Part No.
Qty.
Req.
Description
33
171355
1
Throttle Control
34
171334 1
Choke Control
35
158475
1
Clip, Bowden Wire
36
714005 1
Self Tapping Rd- Hd. Screw,
No. 10-24 N.C. x 1/2”
37
158475 1
Clip, Bowden Wire
38 710004
1
Rd. Hd. Mach. Screw, No,
10-32 N.F. x 3/8"
39 717007
1
Full Hex Nut, No, 10-32 N,F.
40
157315 1
Bracket, Throttle Cable
41
720003 1
Lock Washer, 1/4”
42
714021 1
Self Tapping Rec. Hex Hd.
Screw, l/4"-20 N.C. x 5/8”
43
122186 1
Clamp
44
705015
1
. Hex Cap Screw, l/4"-2Q N.C.
x 5/8”
45
720003 1
Lock Washes 1/4”
46
719006
1
Plain Washer, 1/4” Std.
47
717005
1
Hex Nut Full, l/4' f -20 N.C.
48 172040
1
Throttle Handle
49
172038 1
Knob
50
171848
l
Stop Throttle
51
158424 1
Ann Throttle
52
159107
1
Washer
53
721602
1
Washer Lock Dished Type, 3/8"
54
717510 1
Full Lock Hex Nut, 3/8"-16
N.C,
55
711003 1
Truss Hd. Screw, No, 10-
32 x 1/2"
56
171304
1
Washer
57
717507
1
Gripco Lock Nut 10 32 x 1/2"
58 720007
2
Lock Washer, Nm 12
59
717023
2
Hex Nut Full, No. 10-24
60
158611
1
Bracket, Pulley Guard
61
718043 1
Nut, Tinnerman
62
715057
1
Hex Cap Screw, 1/4 ”-20 x
3/4"
63
719007 I
Plain Washer, 3/16”
64
714032
1
Hex Hd_ Screw, No. 14 x
1-1/4"
65
171600 2
Hood Strap
66
710002 2
Rd. Hd. Mach, Screw, No. 10-
32x1/2”
67
721003
2
Lock Washer, Shakeproof No. 10
68
717007
2
Nut, Hex Full, No. 10-32
25
