Simplicity 759 3415H - Page 28

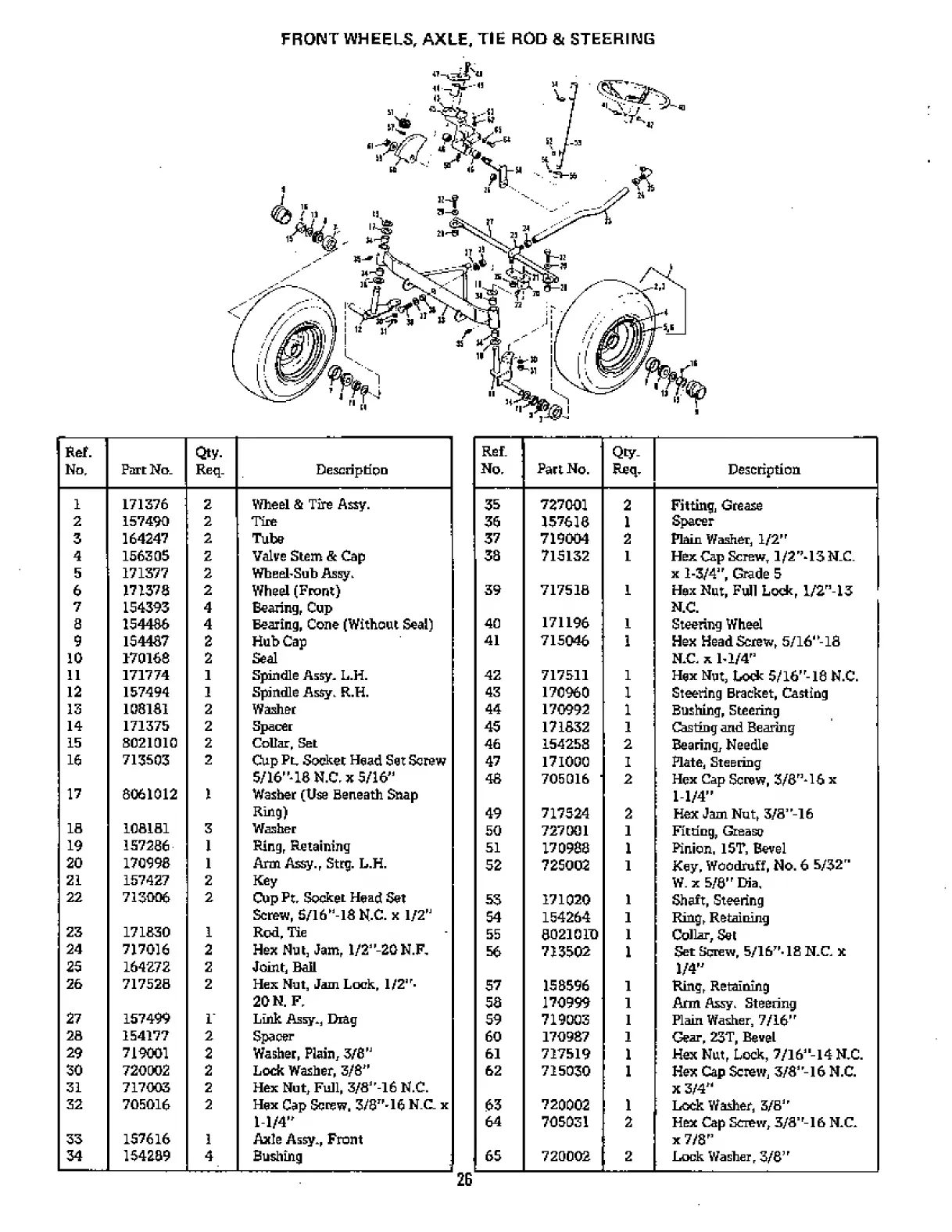

FRONT WHEELS, AXLE, TIE ROD & STEERING
Re!.
No r Part Wo.
Qty.
Req. Description
1 171376 2 Wheel & Tire Assy.
2 157490 2 Tire
3
164247 2
Tube
4 156305 2 Valve Stem & Cap
5 171377 2 WhEel'Sub Assy.
6
171378 2
Wheel (Front)
7
154393 4 Bearing, Cup
8 154486 4 Bearing, Cone (Without Seal)
9 154487 2 Hub Cap
10 170168 2 Seal
11 171774 1 Spindle Assy, L.H.
12 157494 1 Spindle Assy. R.H.
13 108181 2 Washer
14 171375 2 Spacer
15 8021010 2 Collar, Set
16 713503
2
Cup Fti Socket Head Set Screw
5/16" 18 N.C. x 5/16"
17
8061012 1 Washer (Use Beneath Snap
Ring)
18 108181 3 Washer
19 157286 1 Ring, Retaining
20 170998 1 Arm Assy., Strg. L.H.
21 157427 2 Kay
22
713006
2
Cup Ft. Socket Head Set
Screw, 5/16 "-18 N.C. x 1/2"
23 171830 1 Rod, Tie
24
717016 2 Hex Hut, Jam, l/2"-20N.F,
25 164272 2 Joint, Ball
26 717528 2 Hex Nut, Jam Lock, 1/2"-
20 N. F.
27 157499 1 Link Assy,, Drag
28 154177 2 Spacer
29 719001 2 Washer, Plain, 3/8"
30 720002 2 Lock Washer, 3/8"
31 717003 2 Hex Nut, Full, 3/8”-l6 N.C.
32
705016
2
Hex Cap Screw. 3/8”'16 N.C. x
1-1/4"
33 157616 1 Axle Assy,, Front
34 154289
_ l
4 Bushing
Ref.
No. Part No.
Qty-
Req.
Description
35 727001 2 Fitting, Grease
36 157618 1
Spacer
37
719004 2 Plain Washer, 1/2"
38 715132 1 Hex Cap Screw, l/2"-13N_C.
x 1-3/4", Grade 5
39 717518 1
Hex Nut, Full Lock, 1/2"13
N.C.
40 171196 1
Steering Wheel
41
715046 1 Hex Head Screw, 5/16"-18
N.C x 1-1/4"
42 717511 1
Hex Nut, Lode 5/16' r -18 N.C.
43
170960 1 Steering Bracket, Casting
44 170992
1 Bushing, Steering
45 171832 1 Casting and Bearing
46
154258
2
Bearing, Needle
47
171000 1 Plate, Steering
48 705016 2
Hex Cap Screw, 3/8"-16 x
1-1/4"
49 717524 2 Hex Jam Nut, 3/8”-16
50 727001 1
Fitting, Grease
51
170988 1 Pinion, 1ST, Bevel
52 725002 1 Key, Woodruff, No. 6 5/32"
W. x 5/8" Dia,
53 171020
1
Shaft, Steering
54 154264 1 Ring, Retaining
55 80210ID 1
Collar, Set
56
713502
1
Set Screw, 5/16"18 N.C x
1/4"
57
158596 1 Ring, Retaining
58 170999 1 Arm Assy. Steering
59 719003 1
Plain Washer, 7/16"
60 170987 1
Gear, 23T, Bevel
61
717519 1 Hex Nut, Lock, 7/l6"-l4 RC.
62
715030 1 Hex Cap Screw, 3/8”-l6 N.C.
x 3/4"
63 720002 1 Lock Washer, 3/6”
64
705031 2 Hex Cap Screw, 3/8”-16 RC.
x 7/8"
65 720002 2
Lock Washer, 3/8"
26
