Simplicity 759 3415H - Page 29

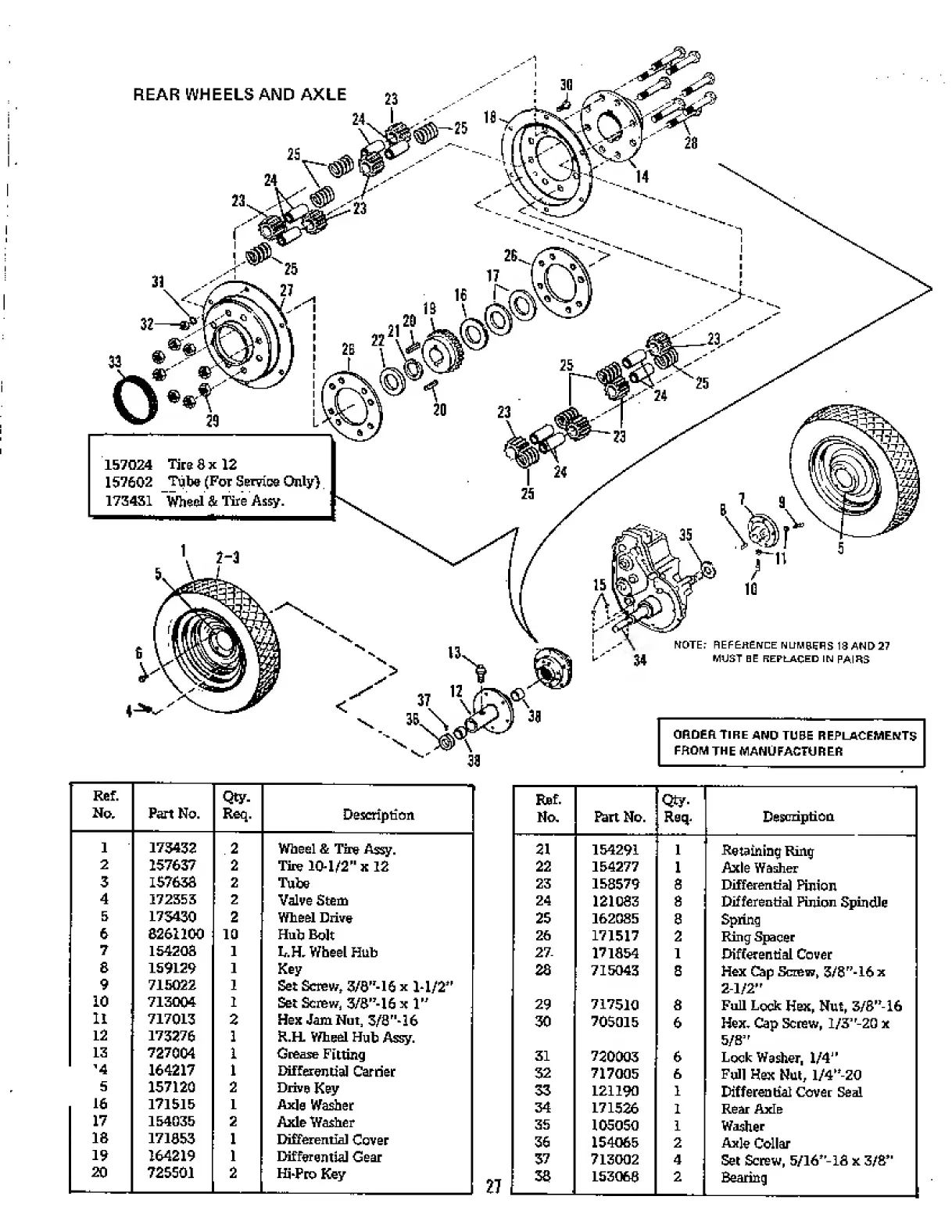

REAR WHEELS AND AXLE
157024
- 1
Tire 8 x 12
157602
Tube (For Service Only)
173431 Wheel & Tire Assy.
Ref.
No, Part No.
Qty-
R&q.
----
Description
1
173432 2 Wheel & Tina Assy.
2
157637 2
Tire 10-1/2" x 12
3 1S7638 2
Tube
4 172353 2
Valve Stem
5
173430 2
Wheel Drive
6 8261100 10
Hub Bolt
7
154208 1
L.H, Wheel Hub
&
159129
1
Key
9 715022 1
Set Screw, 3/8"-16 x 11/2”
10 713004 1
Set Screw, 3/8”-16 x 1"
11
717013 2
Hex Jam Nut, 3/8 "-16
12
173276 1
R.H. Wheel Hub Assy.
13
727004 1
Grease Fitting
'4
164217 1
Differential Garner
5
157120 2
Drive Key
16 171515 1
Axis Washer
17 154035 2
Axle Washer
18
171853 1
Differentia] Cover
19 164219 1
Differential Gear
20 725501 2
HiPro Key
Ref.
No.
Part No.
Qty.
Req.
Description
21
154291
1
Retaining Ring
22 154277
1 Axle Washer
23
158579 8
Differential Pinion
24
121083 8
Differential Pinion Spindle
25 1620S5
8 Spring
26 171517
2
Ring Spacer
27.
171854 1
Differential Cover
28
715043 8 Hex Cap Screw, 3/8”-16x
2-1/2"
29 717510 8
Full Lock Hex, Nut, 3/8"-16
30 705015
6 Hex. Cap Screw, l/3"-20 x
5/8"
31
720003 6
Lock Washer, 1/4”
32
717005 6
Full Hex Nut, l/4"-20
33 121190 1
Differential Cover Seal
34
171526 1 Rear Axle
35
105050 1
Washer
36 154065 2
Axle Collar
37
713002 4
Set Screw, 5/16”-18 x 3/8”
38 153068
2
Bearing
