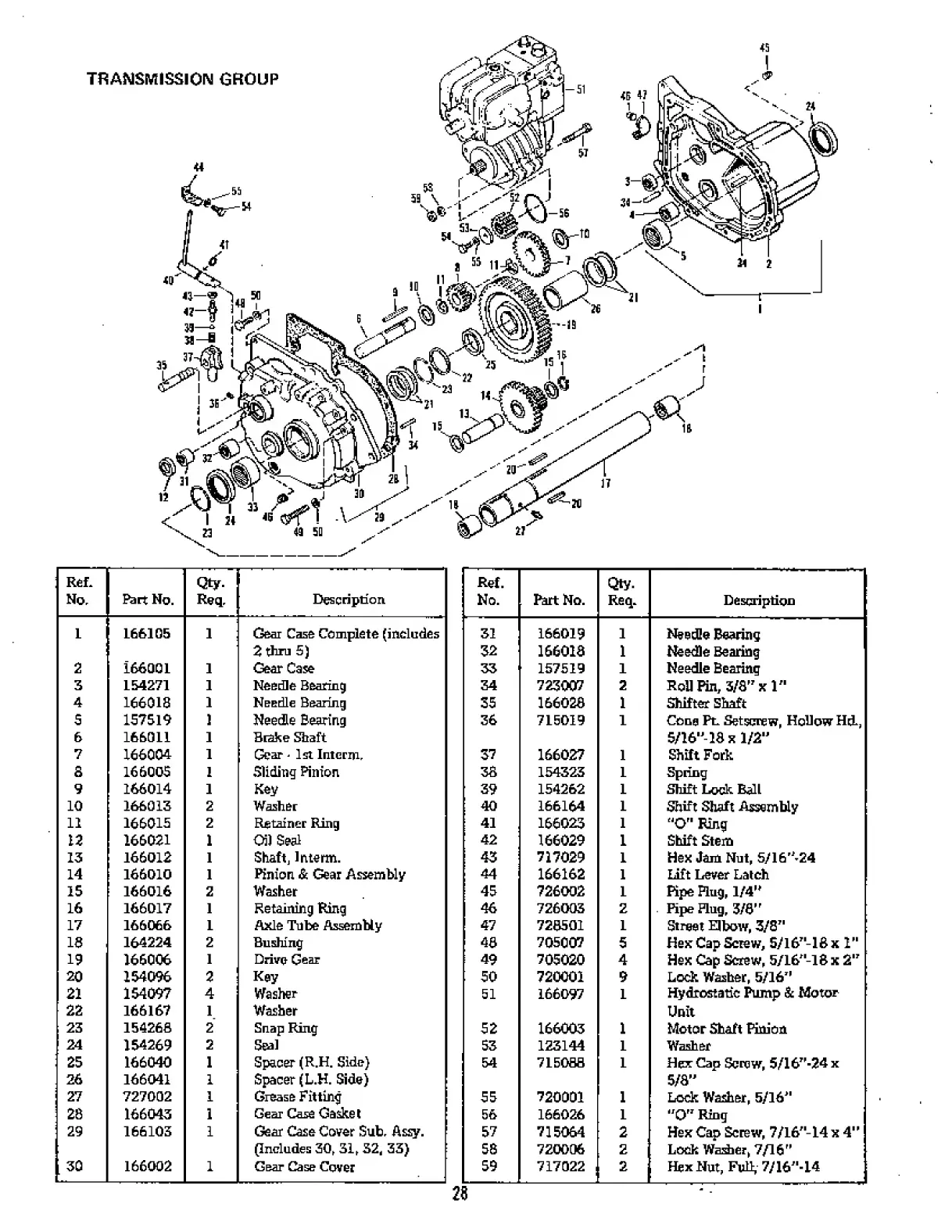

Simplicity 759 3415H - Page 30

RfiL
No,
Part No.
Qty.
Req,
Description
1 166105 1 Gear Case Complete (includes
2 thru 5)
2 166001 1 Gear Case
3 154271 1 Needle Bearing
4
166013
1 Needle Bearing
S
157519 1 Needle Bearing
6 166011 1 Brake Shaft
7 166004 1
Gear - 1 s t Interim,
3 166005 1 Sliding Pinion
9 166014 1 Key
10 166013 2 Washer
11 166015 2 Retainer Ring
12 166021 1 Oil Seal
13 166012 1 Shaft, Interne.
14 166010 1 Pinion & Gear Assembly
15 166016 2 Washer
16 166017 1 Retaining Ring
17 166066 1 Axle Tube Assembly
13
164224 2 Bushing
19 166006
1
Drive Gear
20 154096 2
Key
21 154097 4
Washer
22 166167 1 Washer
23 154268 2 Snap Ring
24
154269
2 Seal
25 166040 1
Spacer (R.H. Side)
26 166041 1 Spacer (L.H. Side)
27 727002 1 Grease Fitting
28 166043 1
Gear Case Gasket
29 166103 1 Gear Case Cover Sub, Assy.
(Includes 30 f 31 f 32, 33)
[ 30 166002 1
Gear Case Cover
Ref.
No. Part No.
Qty.
Req.
Description
31
166019
1
Needle Bearing
32
166018 1 Needle Bearing
33 157519 1 Needle Bearing
34
723007
2
Roll Pin, 3/3” x 1"
35 166028 1 Shifter Shaft
36 715019 1
Cone Pl Setscrew, Hollow Hi,
5/16"-13 x 1/2"
37
166027 1 Shift Fork
33 154323 1 Spring
39
154262 1
Shift Lock Ball
40 166164 1
Shift Shaft Assembly
41
166023
1
"O" Ring
42
166029 1 Shift Stem
43 717029 1 Hex Jam Nut, 5/16 "-24
44
166162 1 Lift Lever Latch
45 726002 1 Pipe Plug, 1/4"
46 726003 2
Pipe Plug, 3/8"
47
728501
1
Street Elbow, Z/8 1 '
48
705007
5 Hex Cap Screw, 5/l6"-13x 1"
49 705020 4 Hex Cap Screw, 5/l6"-l& x 2"
50 720001 9 Lock Washer, 5/16"
51
166097
1
Hydrostatic Pump & Motor
Unit
52 166003 1 Motor Shalt Pinion
53 123144 1 Washer
54 715088 1
Hex Cap Screw, 5/16”-24x
5/3"
55 720001 1
Lock Washer, 5/16"
56 166026 1
"0" Ring
57
715064 2 Hex Cap Screw, 7/16"-14 x 4"
58 720006 2
Lock Washer, 7/16”
59 717022 2
HexNut, Fully 7/16"-14
