Simplicity 759 3415H - Page 31

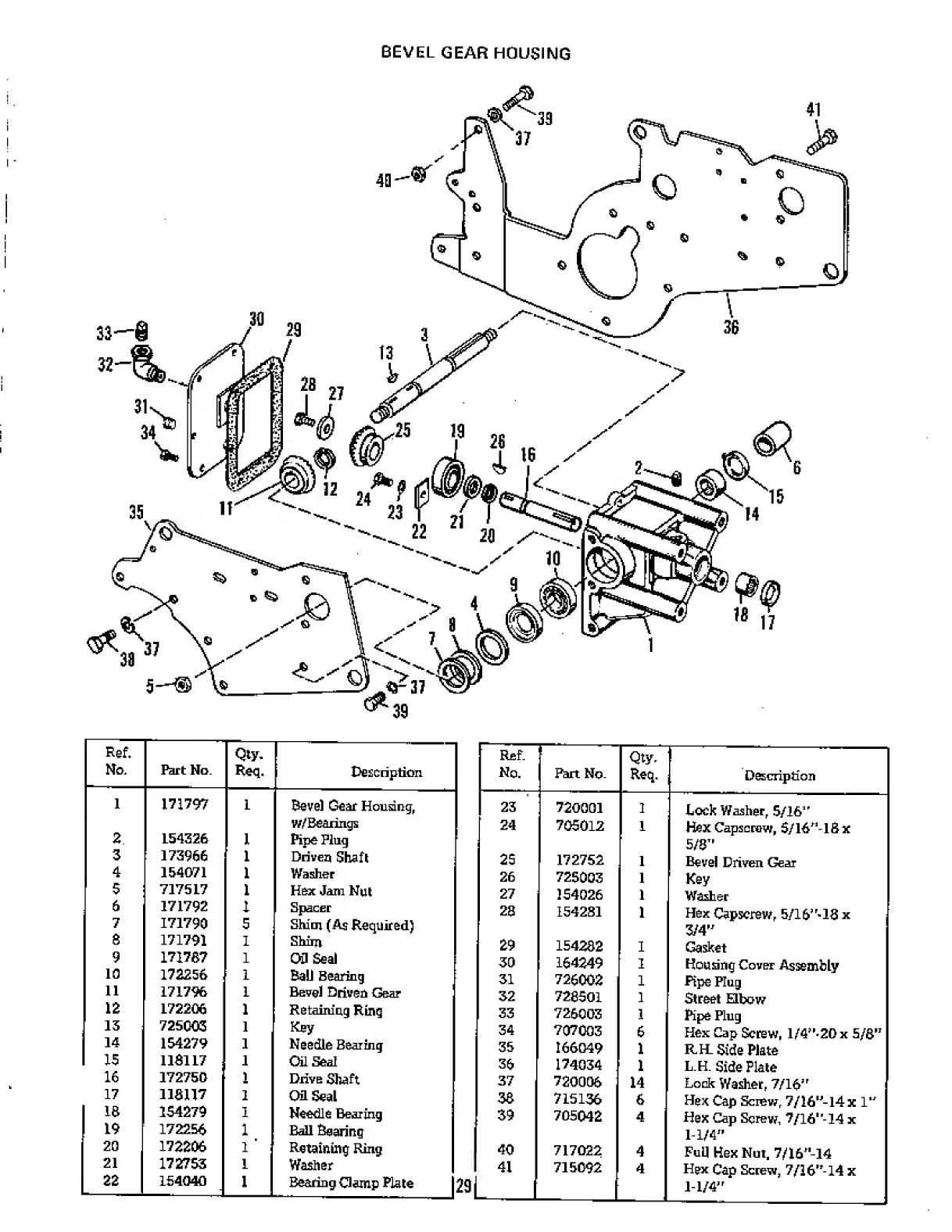

BEVEL GEAR HOUSING
Ref.
No.
Part No.
Qty,
Req.
Description
1
171797 1
Bevel Gear Housing,
w/Bearings
2 154326
1 Pipe Plug
3
173966 1
Driven Shaft
4 154071
1 Washer
3 717517
1
Hex Jam Nut
6 171792
1 Spacer
7
171790 5
Shim (As Required)
8
171791 1
Shim
9 171787 1
Oil Seal
10
172256 1
Ball Bearing
11
171796 1
Bevel Driven Gear
12
172206 1
Retaining Ring
13
725003 1
Key
14
154279 1
Needle Bearing
15 118117
1
Oil Seal
16 172750
1
Drive Shaft
17 118117
1
Oil Seal
ie 154279 1
Needle Bearing
19
172256 1
Ball Bearing
20
172206 1
Retaining Ring
21
172753 1
Washer
22 154040
1
Bearing Gamp Plate
Ref.
No.
Part No.
Qty.
Req.
Description
23
720001 1
Lock Washer, 5/16”
24
705012 1
Hex Capscrew, 5/l6”-l6x
5/0”
25 172752
1
Bevel Driven Gear
26
725003 1
Key
27
154026 1
Washer
20
I542S1
1
Hex Capscrew, 5/16"’ IS x
3/4"
29
154282 1
Gasket
30
164249 1
Housing Cover Assembly
31
726002 1
Pipe Plug
32
728501 1
Street Elbow
33
726003 1
Pipe Plug
34
707003
6
Hex Cap Screw, l/4"-20x 5/8"
35
166049 1
RH_ Side Plate
36
174034
1
L.H. Side Plate
37
720006 14
Lock Washer, 7/16"
38
715136 6
Hex Cap Screw, 7/16 ,J -l4x 1”
39
705042 4
Hex Cap Screw, 7/l6 ,F -14 x
1-1/4"
40 717Q22
4
Full Hex Nut, 7/16"-14
41 715092
4
Hex Cap Screw, 7/16"-14 x
1-1/4"
