Simplicity 759 3415H - Page 36

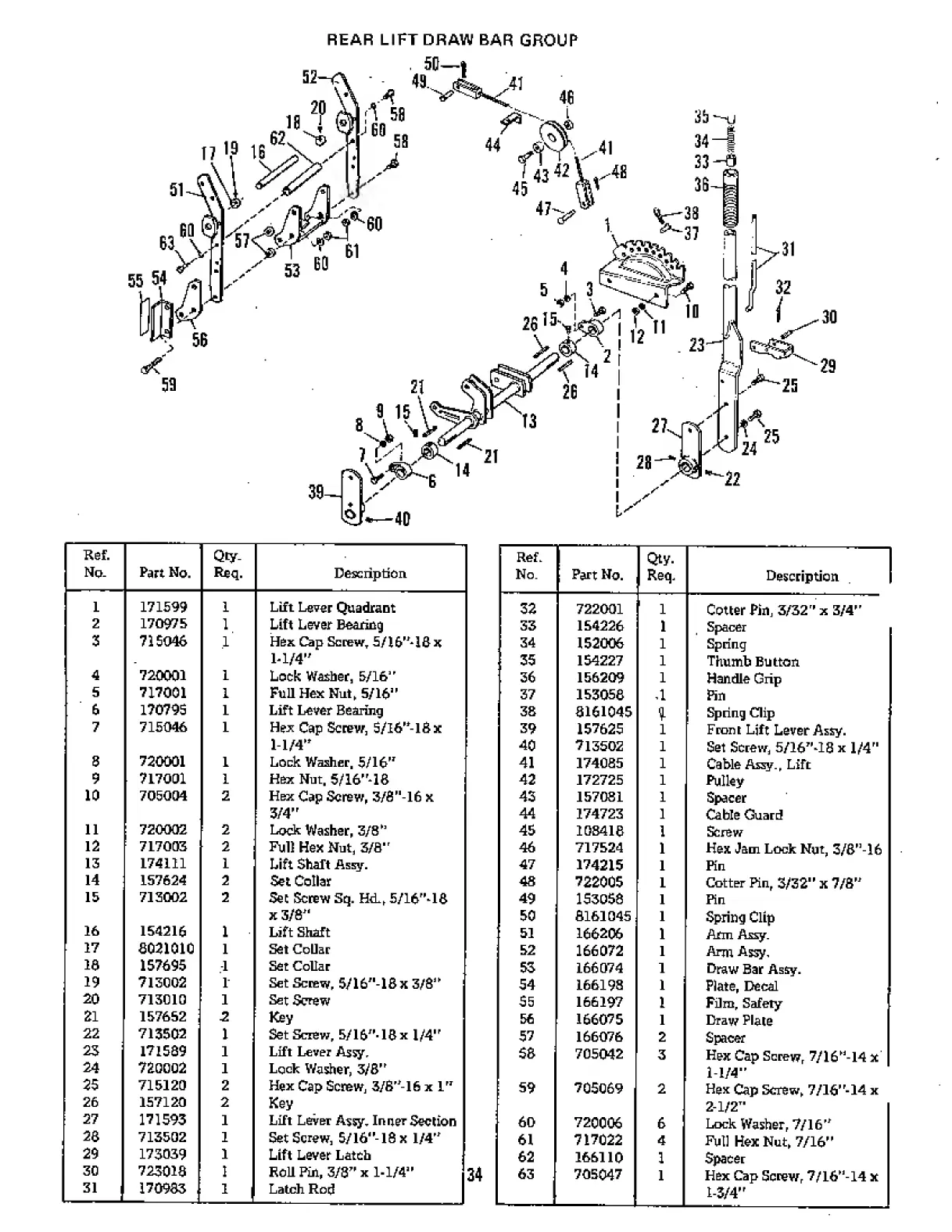

REAR LIFT DRAW BAR GROUP
Ref.
No.
Part No.
Qty-
Req.
Description
1
171599
1
Lift Lever Quadrant
2 170975
1 Lift Lever Bearing
3 715046 1
Hex Cap Screw T 5/16"-18x
M/4"
4
720001
1
Lock Washer, 5/16”
5
717001 1
Full Hex Nut, 5/16”
6 170795 1 Lift Lever Bearing
7 715046 1
Hex Cap Screw, 5/l6"-lBx
1-1/4"
0 720001 1
Lock Washer, 5/16"
9 717001 1
Hex Nut, 5/16"-18
10 7O50O4 2
Hex Cap Screw, 3/8"-l6 x
3/4"
11 720002 2
Lock Washer, 3/8"
12 717O03
2
Full Hex Nut, 3/8”
13 174111 1
Lift Shaft Assy.
14 157624 2
Set Collar
15 713O02 2
Set Screw Sq. Hd* t 5/16”-18
x 3/8”
16
154216 1 Lift Shaft
17
8021010 1 Set Collar
10 157695 1 Set Collar
19 713002 1
Set Screw, 5/16”-18x 3/8”
20
713010 1
Set Screw
21 157652 2
Key
22 713502
1
Set Screw, 5/16”18x 1/4"
25 171589 1
Lift Lever Assy.
24 720002 1
Lock Washer, 3/8"
25 715120 2
Hex Cap Screw, 3/8"-16 x 1"
26 157120 2
Key
27
171593 1
Lift Lever Assy. Inner Section
26
713502 1
SetScrew, 5/l6”-l8x 1/4"
29
173039
1
Lift Lever Latch
30
723018 I Roll Pin, 3/0” x 1-1/4”
31 170983 1 Latch Rod
Ref.
No.
Part No.
Qty.
Req,
Description
32 722001 1
Cotter Pin, 3/32” x 3/4"
33
154226 1 Spacer
34
152006 1 Spring
35 154227 1
Thumb Button
36
156209
1
Handle Grip
37
153058 ,1 Pin
38
8161045
%
Spring Clip
39 157625 1
From Lift Lever Assy.
40 713502 1
Set Screw, 5/16”-18 x 1/4"
41 174085 1
Cable Assy., Lift
42 172725 1
Pulley
43 157081 1
Spacer
44 174723 1
Cable Guard
45
108418 1 Screw
46 717524
1
Hex Jam Lock Nut, 3/8"-16
47
174215 1 Pin
48
722005 1
Cotter Pin, 3/32" x 7/8"
49 153058 1 Pin
50 8161045 1
Spring Clip
51
166206 1 Arm Assy.
52
166072 1
Arm Assy,
53 166 074 1
Draw Bar Assy.
54 166198 1
Flate, Decal
55 166197
1 Film, Safety
56
166075 1
Draw Plate
57
166076 2
Spacer
58 705042
3
Hex Cap Screw, 7/16"-14 x
M/4”
59 705069 2
Hex Cap Screw, 7/16"-14 x
2 -1/2”
60
720006 6
Lock Washer, 7/16"
61 717022 4
Full Hex Nut, 7/16"
62 166110
1 Spacer
63 705047
1
Hex Cap Screw, 7/l6"-14 x
1-3/4"
