Simplicity 759 3415H - Page 37

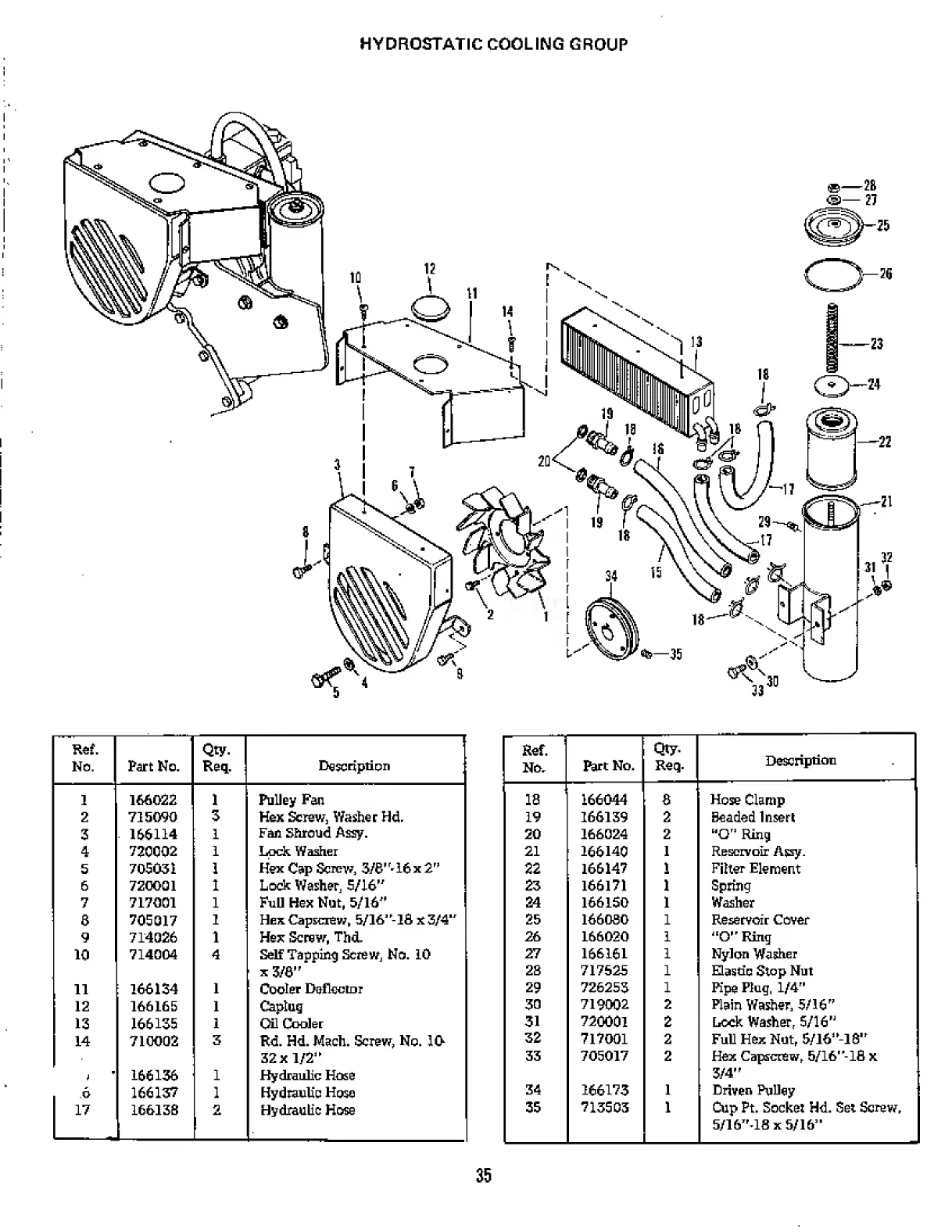

HYDROSTATIC COOLING GROUP
Ref. '
No,
Part No.
Qty.
Req.
Description
IS 166044 8
Hose damp
19 166139 2 Beaded Insert
20 166024 2
"Q" Ring
21
166140
1 Reservoir Assy.
22
166147
1
Fiber Element
23 166171 1 Spring
24 166150 1 Washer
25 166080 1 Reservoir Cover
26 166020 1 “O” Ring
27
166161
1
Nylon Washer
2 B 717525 1
Elastic Stop Nut
29 726253
1 Pipe Plug, 1/4”
30 719002 2
Plain Washer, 5/16”
31 720001 2 Loch Washer, 5/16' J
32
717001 2 Full Hex Nut, 5/l6”-l8 ,f
33 705017 2
Hex Capscrew, 5/16”-18 x
3/4”
34
166173
1
Driven Pulley
35 713503 1 Cup Pt. Socket Hd. Set Screw,
5/16 Tr -18 x 5/16”
Ref.
No, Part No.
Qty.
Req.
Description
1 166022 1 Pulley Fan
2 715090
3
Hex Screw, Washer Hd.
3
166114 1
Fan Shroud Assy.
4
720002 1
Lock Washer
5 705031 1
Hex Cap Screw, 3/8 ,r '16x2”
6 720001 1 Lock Washer, 5/16"
7 717001 1 Full Hex Nut, 5/16”
8 705017
1 Hex Capscrew, 5/16”-18 x3/4"
9 714026 1 Hex Screw, Thd.
10
714004 4 Self Tapping Screw, No. 10
x 3/8"
11
166134
1 Cooler Deflector
12 166165 1 Caplug
13 166135
1 Oil Cooler
14 710002
3
Rd. Hd. Mach. Screw, No. 10
32x 1/2”
j •
166136
1 Hydraulic Hose
.6
166137
1 Hydraulic Hose
17 166138 2 Hydraulic Hose
35
