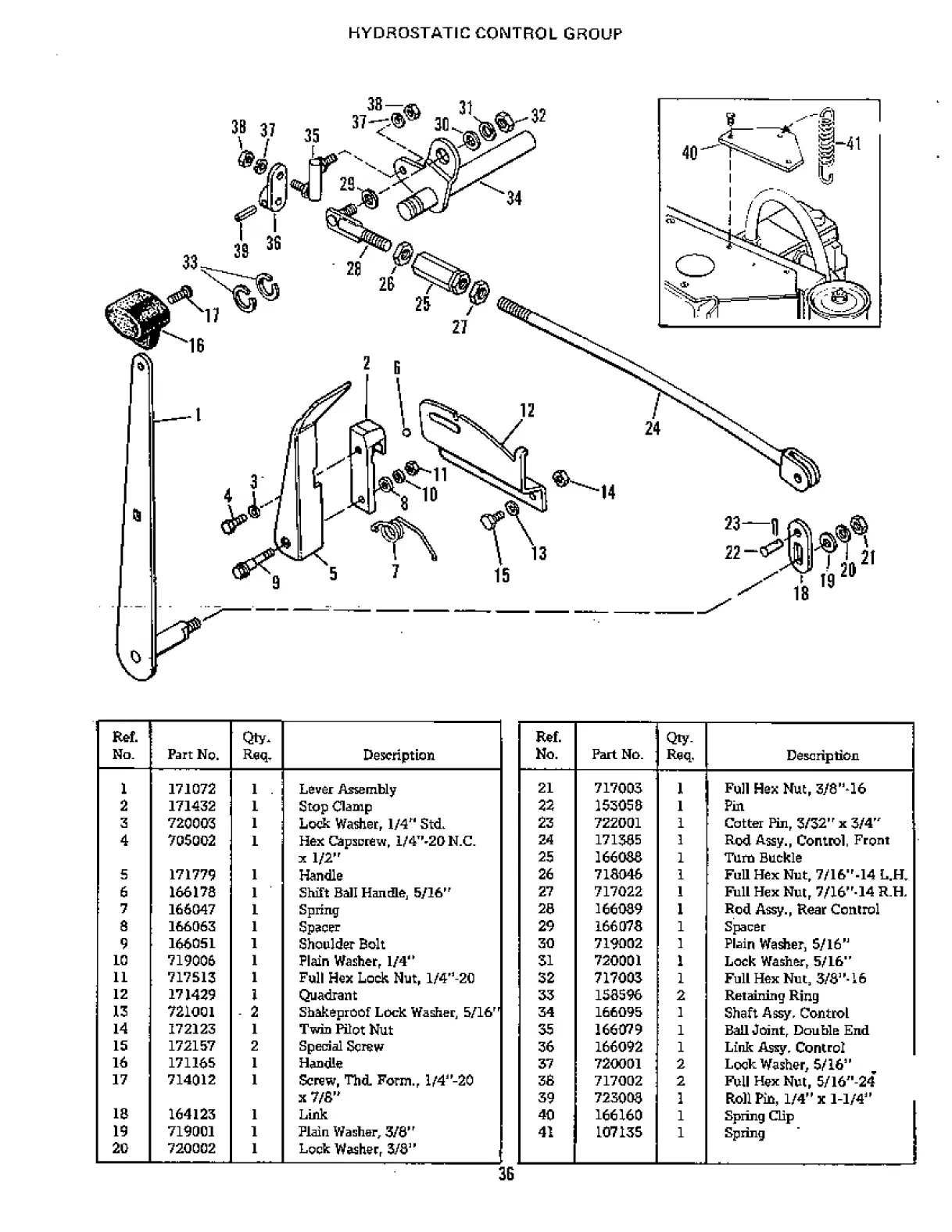

Simplicity 759 3415H - Page 38

Ref.
No. Part No.
Qty.
Req T Description
1 171072
1
Lever Assembly
2 171432 1
Stop Clamp
3
720003
1
Lock Washer, 1/4" Std.
4 705002 1 Hex Capscrew, 1/4 T, -20N.C.
x 1 / 2 "
5
171779
1
Handle
6 166178 1 Shift Ball Handle, 5/16"
7
166047 1 Spring
8 166063 1 Spacer
9
166051 1
Shoulder Bolt
10
719006
1
Plain Washer, 1/4"
11
717S13
1
Full Hex Lock Nut, l/4"-2C
12
171429 1 Quadrant
13 721001 - 2 Shakeproof Lock Washer, 5/16"
14 172123 1
Twin Pilot Nut
15 172157 2
Special Screw
16
171165
1
Handle
17
714012
1
Screw, Thd. Form., l/4”-20
x 7/S"
IB 164123 1 Link
19 719001 1
Plain Washer, 3/6"
2D 720002 1
Lock Washer, 3/6”
Ref.
No.
Part No.
Qty
Req, Description
21
717003 1
Full Hex Nut, 3/8" 16
22 153058 1 Pin
23 722001 1 Cotter Pin, 3/32" x 3/4"
24 171365 1
Rod Assy., Control, Front
25 166066 1 Thru Buckle
26 713046 1
Full Hex Nut, 7/16"-14 L.H.
27 717022 1 Full Hex Nut, 7/16"-14 R.R
26 166039 1 Rod Assy., Rear Control
29 166 078 1 Spacer
30 719002 1
Plain Washer, 5/16"
31 720001 1 Lock Washer, 5/16"
32 717003 1 Full Hex Nut, 3/6”16
33 153596 2
Retaining Ring
34 166095 1
Shaft Assy. Control
35 166079 1 Ball Joint, Double End
36 166092 1
Link Assy. Control
37 720001 2
Lock Washer, 5/16”
3S 717002 2
FVill Hex Nut, 5/l6”-24'
39 723006 1 Roll Pin, 1/4" x 1-1/4”
40 166160 1 Spring Clip
41 107135 1 Spring
