Simplicity Baron 2400 Series User Manual

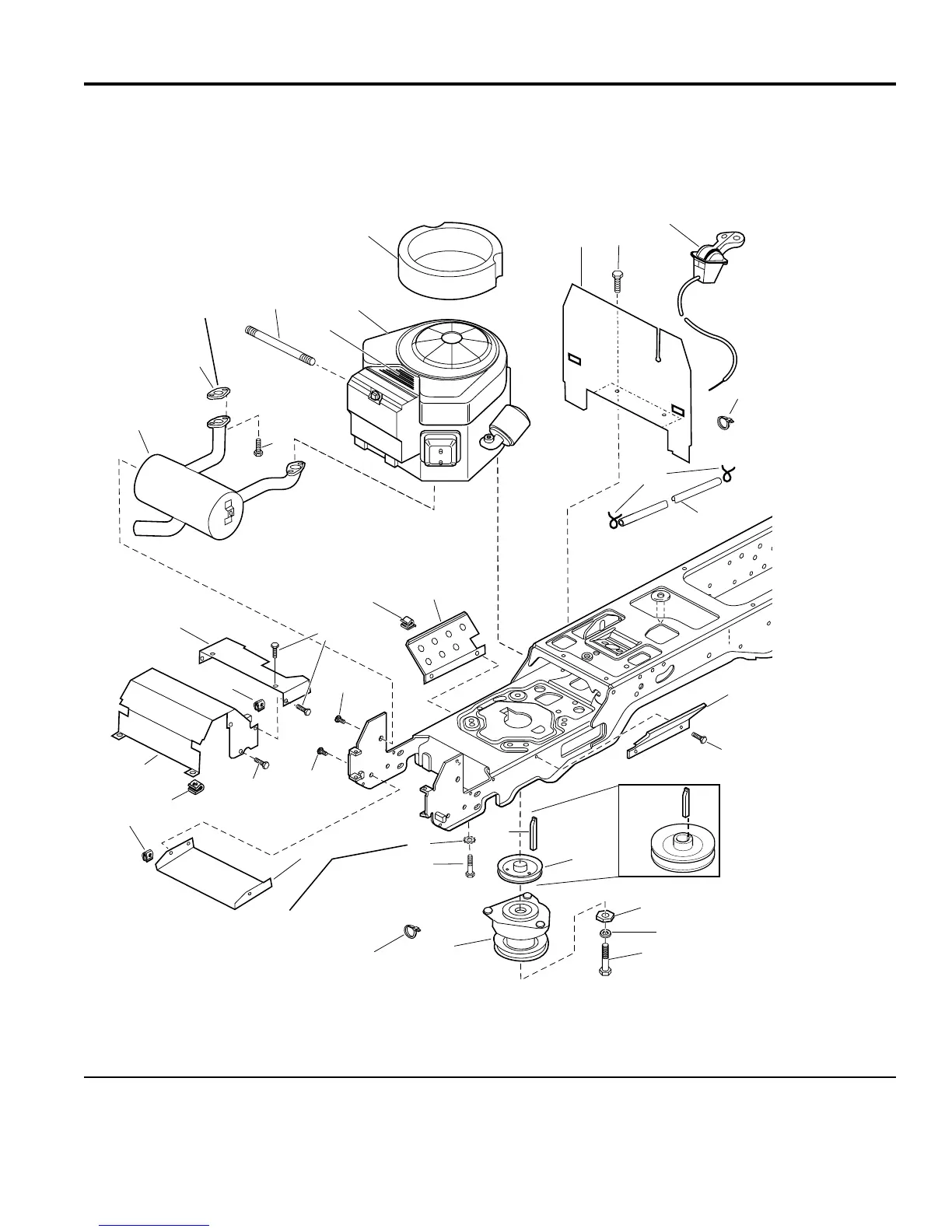

Engine Group - 18HP Briggs & Stratton, INTEK Twin
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61 - 68 Nm)
Torque to
19-23 ft. lbs.
(26 - 31 Nm)
Note:
Orientation
of All Keys
Install between Frame &
Ground cable on RH
rear engine capscrew.
Tie cables to Left
Hand side fo shield.
18
21
20
15
19
17
16
23
22
29
30
24
28
26
25
4
9
14
6
8
10
7
13
27
16
30
32
2
1
3
15
31
12
11
5
27
986012
The above parts group applies to the following Mfg. Nos.:
2003
12
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694328 - Baron
1694347 - 2418H
TP 400-3764-02-BR-SM
