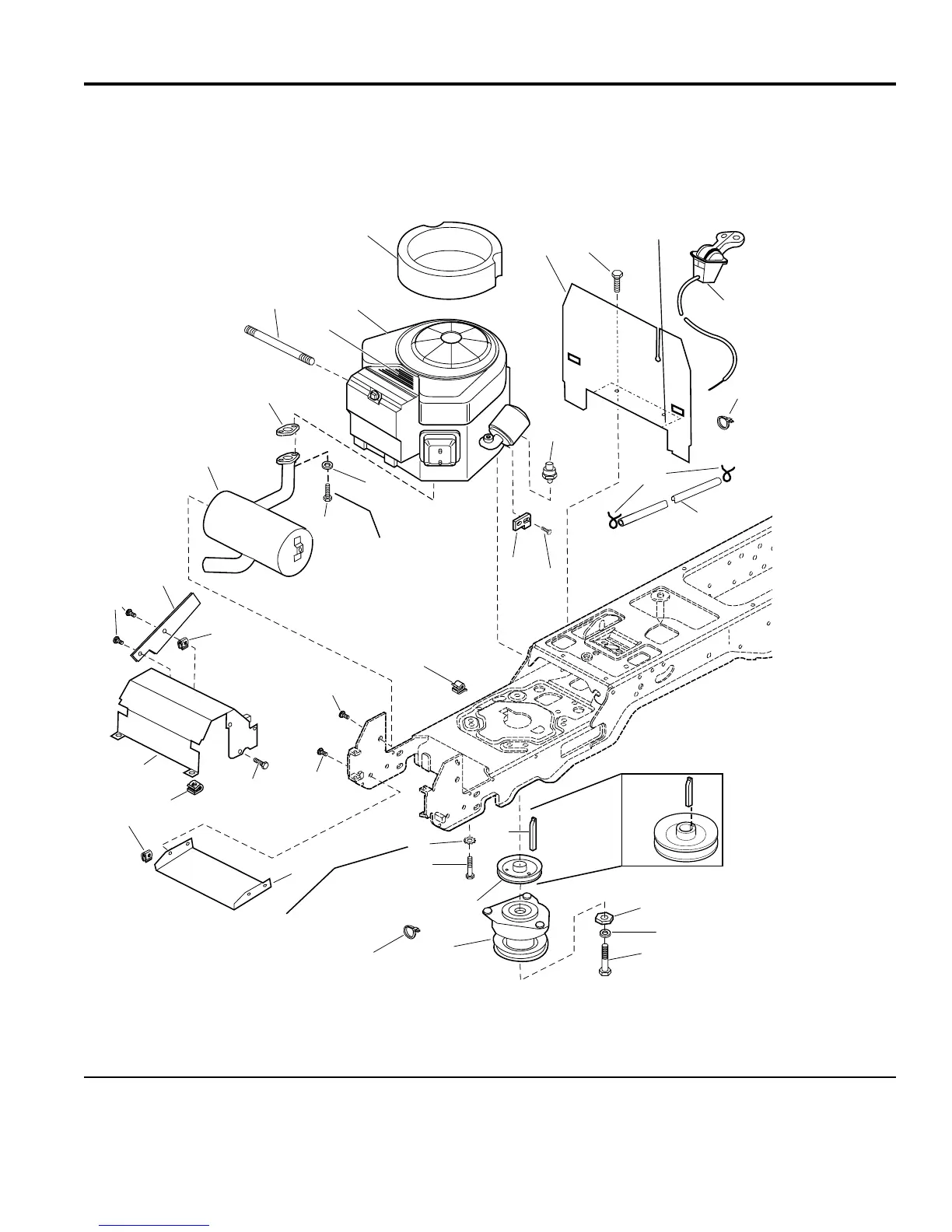

Engine Group - 16HP & 17HP Briggs & Stratton, INTEK Single
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(24 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft/lbs
(61-68 Nm.)
Torque to
19-23 ft. lbs.
(26-31 Nm.)
Note:
Orientation
of All Keys
Do not
apply thread
sealant
Route cables under
bulkhead by fuel lines.
Install between Frame &
Ground cable on RH
rear engine capscrew.
16
19
18
17
15
21
20
26
28
22
27
24
23
4
9
14
6
8
10
7
12
13
25
29
2
1
3
30
31
11
5
25
32
33
30
34
35
986013
The above parts group applies to the following Mfg. Nos.:
2003
8
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694329 - Baron
1694346 - 2416H
1694482 - Baron
1694485 - 2417H
TP 400-3764-02-BR-SM
