Simplicity Baron 2400 Series User Manual

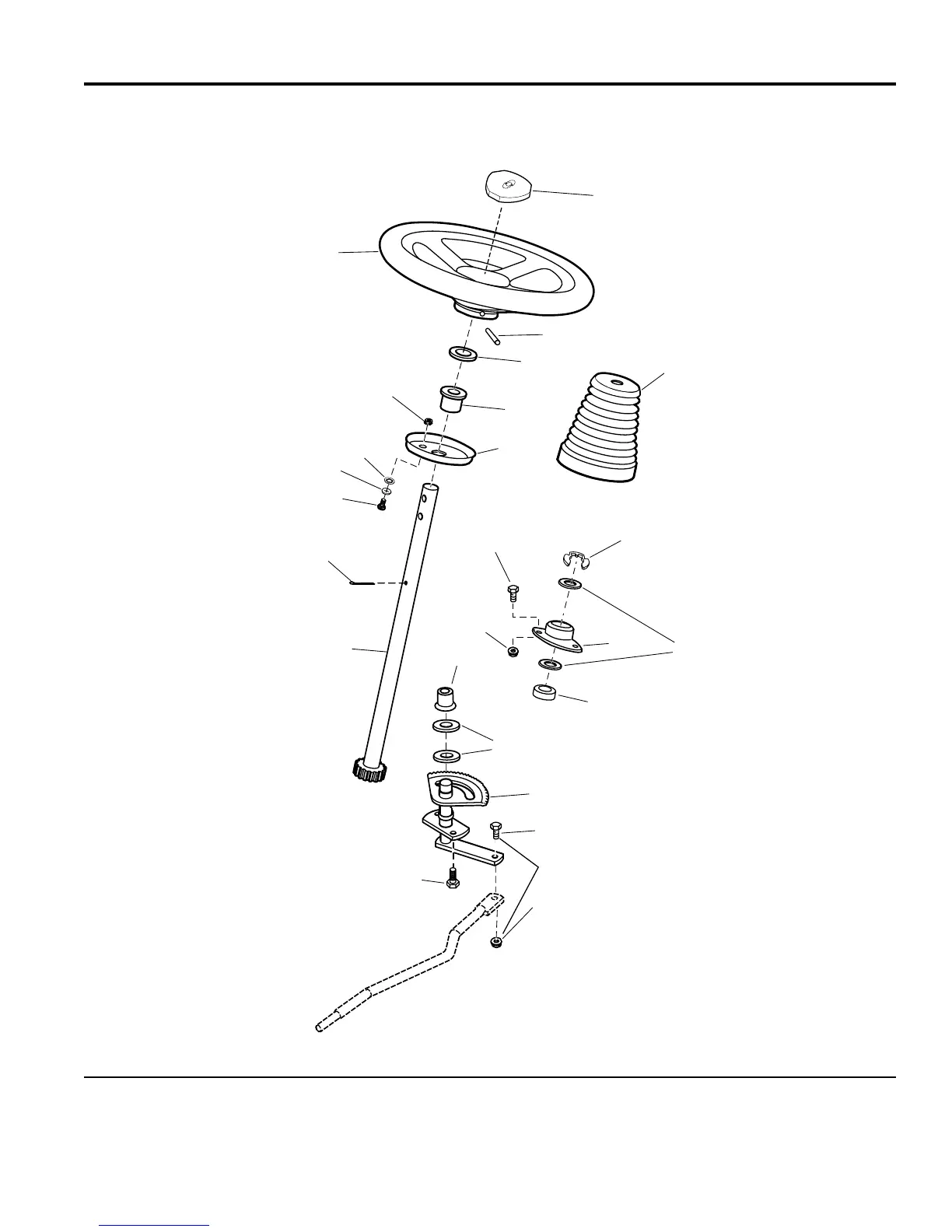

Steering Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
36-44 ft/lbs
(49-59 Nm.)
Bearing mounts
below frame.
Slide pinion into
gear before
tightening nuts.
Steering cap
snaps over
steering wheel.
Torque to
19.5 ft/lbs
(26 Nm.)
Torque to
11 ft/lbs
(15 Nm.)
11
17
15
19
12
18
14
16
13
1
5
9
2
8
4
6
3
10
7
5
7
7
20
22
21
986091
The above parts group applies to the following Mfg. Nos.:
2003
6
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694329 - Baron
1694328 - Baron
1694315 - Baron
1694346 - 2416H
1694347 - 2418H
1694482 - Baron
1694485 - 2417H
1694481 - Baron
1694483 - 2420H
TP 400-3764-02-BR-SM
