Simplicity Champion User Manual

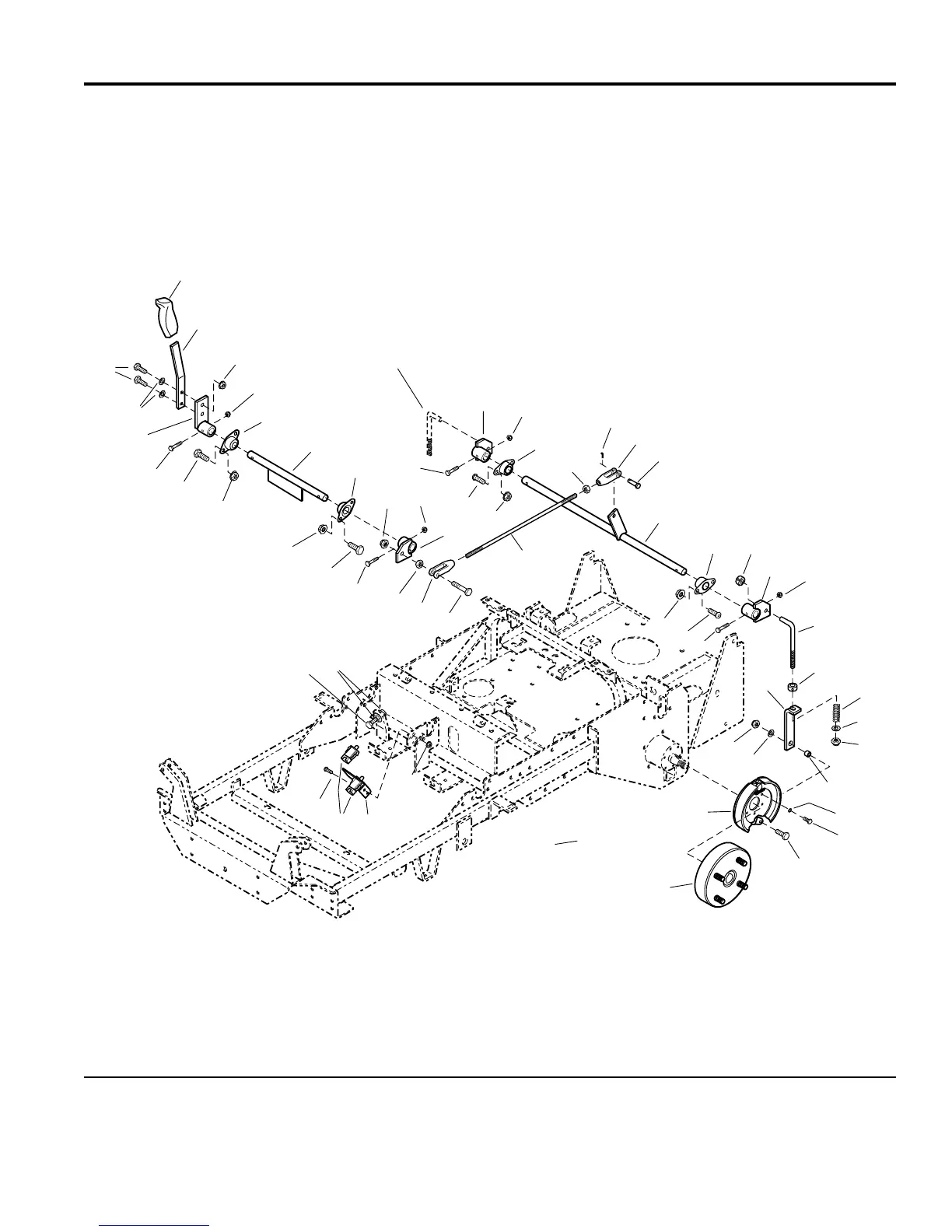

Brake Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Unless otherwise specified,
RH brake components are
identical to the LH side.
1
2
3
4
5
6
8
7
9
10
11
12
11
10
9
7
8
13
14
15
16
17
19
14
18
10
11
8
7
20
21
16
22
23
11
24
25
26
24
10
18
7
8
27
28
29
13
30
4
31
32
33
34
3
36
37
38
39
40
41
10
35
RH Brake Pads
Not Shown.
FI0020
The above parts group applies to the following Mfg. Nos.:
2003
14
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694454 - Cham
p
ion
1694455 - Champion
1694458 - Cham
p
ion
1694460 - Cham
p
ion
TP 400-3887-01-CH-S
