Simplicity Champion - Seat & Kickplate Group

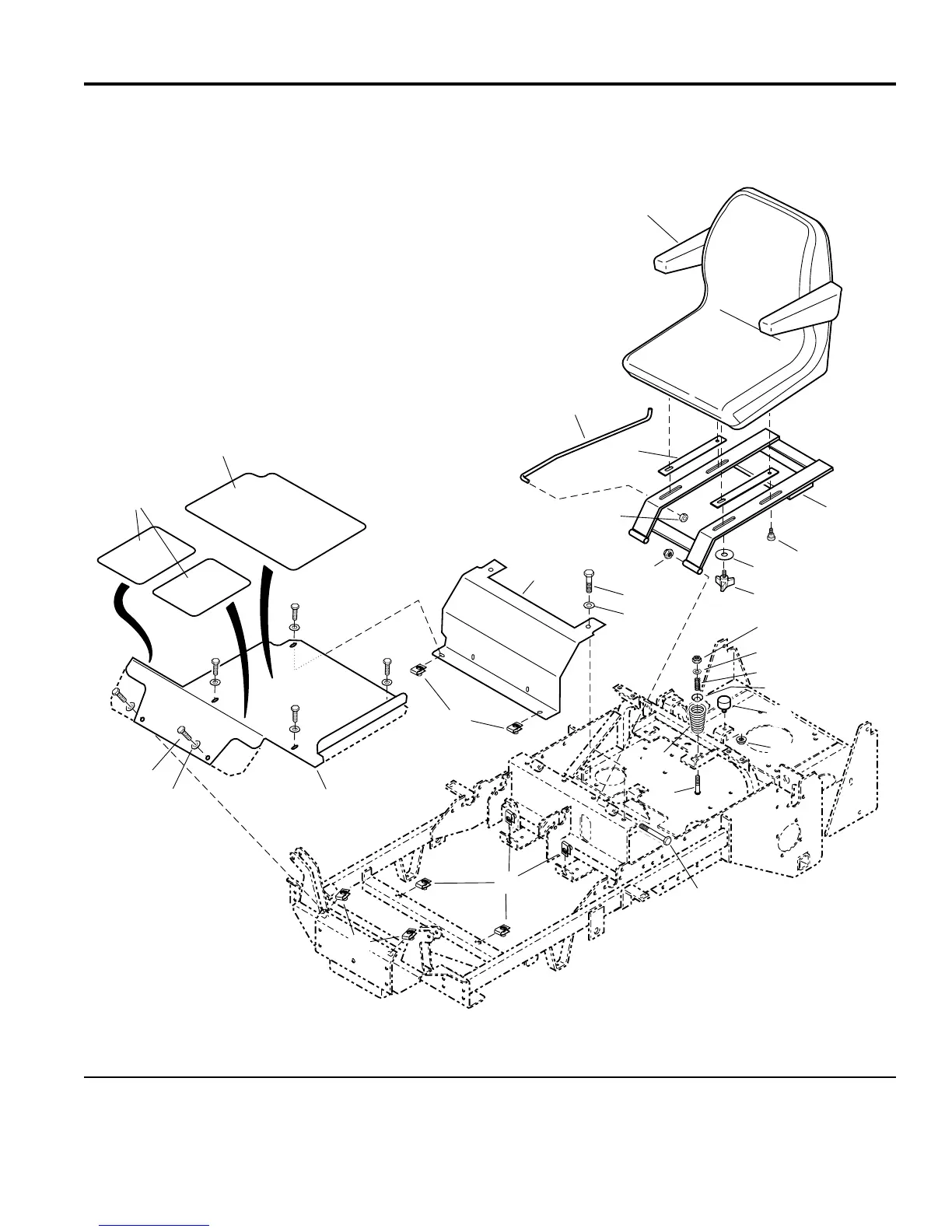

Seat & Kickplate Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
2
3
4
5
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
14
25
26
6
10
FI0022
The above parts group applies to the following Mfg. Nos.:
2003
32
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694454 - Cham
p
ion
1694455 - Champion
1694458 - Cham
p
ion
1694460 - Cham
p
ion
TP 400-3887-01-CH-S
