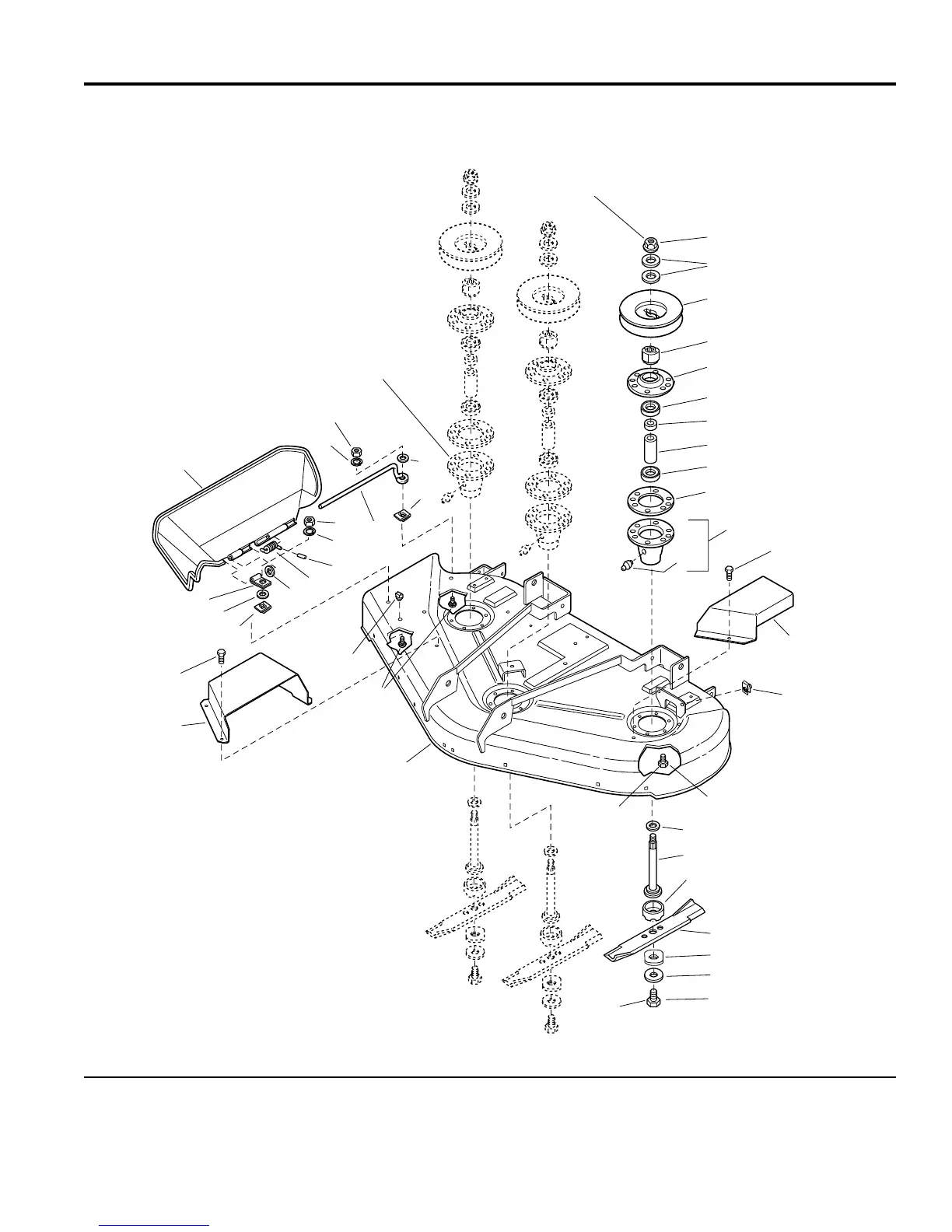

44" & 50" Mower Deck - Housing, Arbors & Blades Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Apply gasket former to this surface
if foam gasket is not used.
Fill arbors with multipurpose grease
after gasket former has cured.
Torque arbor capscrews
to 14-18 ft. lbs.
(19-24 Nm)
Torque screws
to 45-55 ft. lbs.
(61-75 Nm)
Torque nuts
to 50-70 ft. lbs.
(67-95 Nm)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
13
16
17
18
19
20
21
22
23
24
26
13
25
27
28
29
30
31
33
34
36
27
35
28
34
33
15
32
FI0027
The above parts group applies to the following Mfg. Nos.:
2003
42
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694456 - 44" Mower
1694459 - 44" Mower
1694457 - 50" Mower
1694461 - 50" Mower
TP 400-3887-01-CH-S
