key, and apply parking brake. Turn the wheels fully to
the left.
2. Slide mower deck under right side of tractor so that
mower hanger is aligned with the tractor hitch bracket
(see 1-3, Figure 16).
3. Turns wheels straight ahead. Install mower hanger on
tractor hitch bracket using hitch pin and safety clip.
4. Install cotter pin (A, Figure 14) and washer (B) that attach
mower support (C) to tractor frame. Repeat for other side.
5. Pull the idler pulley lever (A, Figure 13) to release belt
tension. Install belt (B) on the PTO pulley (C).
2
1
3

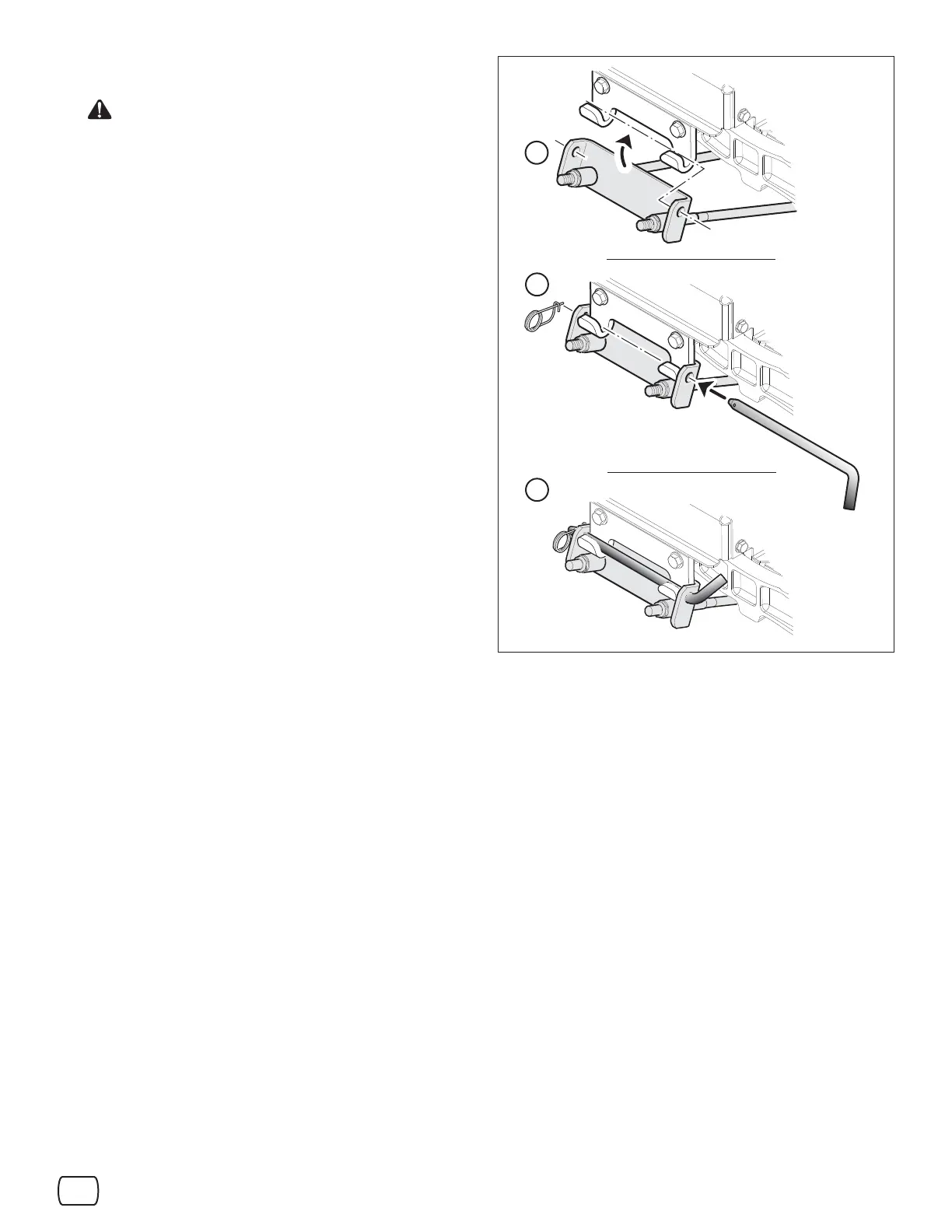

Figure 16
Installing the Mower Deck
WARNING
Engage the parking brake, disengage PTO, stop en-
gine, and remove key before attempting to install the
mower deck.
