Troubleshooting & Repair
THIS HOOK-UP FOR NEGATIVE GROUND VEHICLES
MAKE CERTAIN VEHICLES DO NOT TOUCH
To
Starter
Switch
To
Starter
Switch
Jumper Cable
Jumper Cable
Discharged
Vehicle
Battery
Starting
Vehicle
Battery
Engine
Block
To Ground
**1582

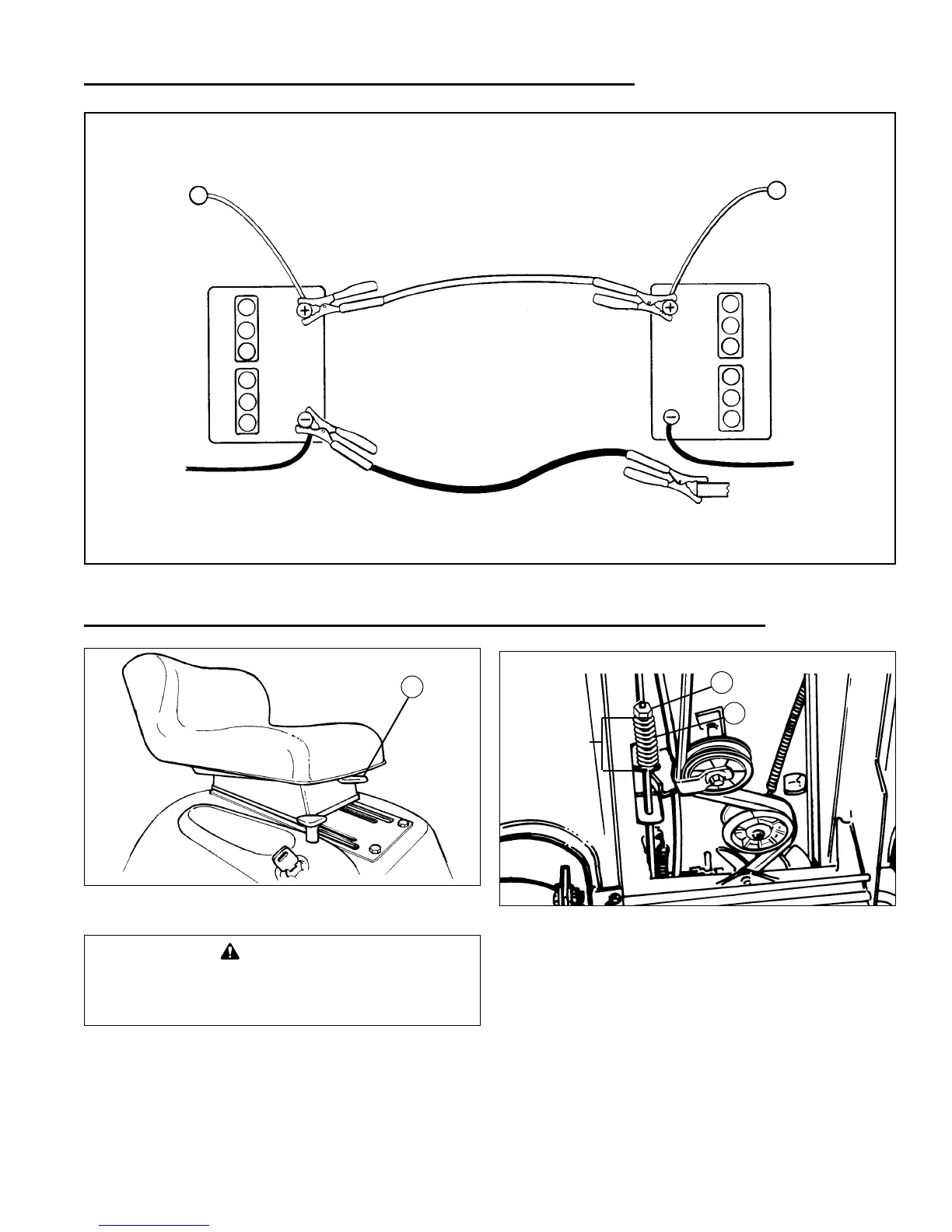

Figure 17. Battery Jump Starting Diagram
Adjustments
SEAT ADJUSTMENT
The seat can be moved forward and back by moving the
lever (A, figure 18) underneath the front of the seat, then
positioning the seat as desired.
WARNING
To avoid serious injury, perform adjustments
only with engine stopped, key removed and trac-
tor on level ground.
Figure 18. Seat Adjustment
A. Seat Adjustment Lever
A
2-7/8"-3"
Figure 19. Brake Spring Adjustment
A. Nut B. Spring
B
A
BRAKE ADJUSTMENT
1. Fully depress brake pedal and lock parking brake.
3. See figure 19. Adjust the brake rod nut (A) until
spring (B) is compressed to 2-7/8" - 3" length.
