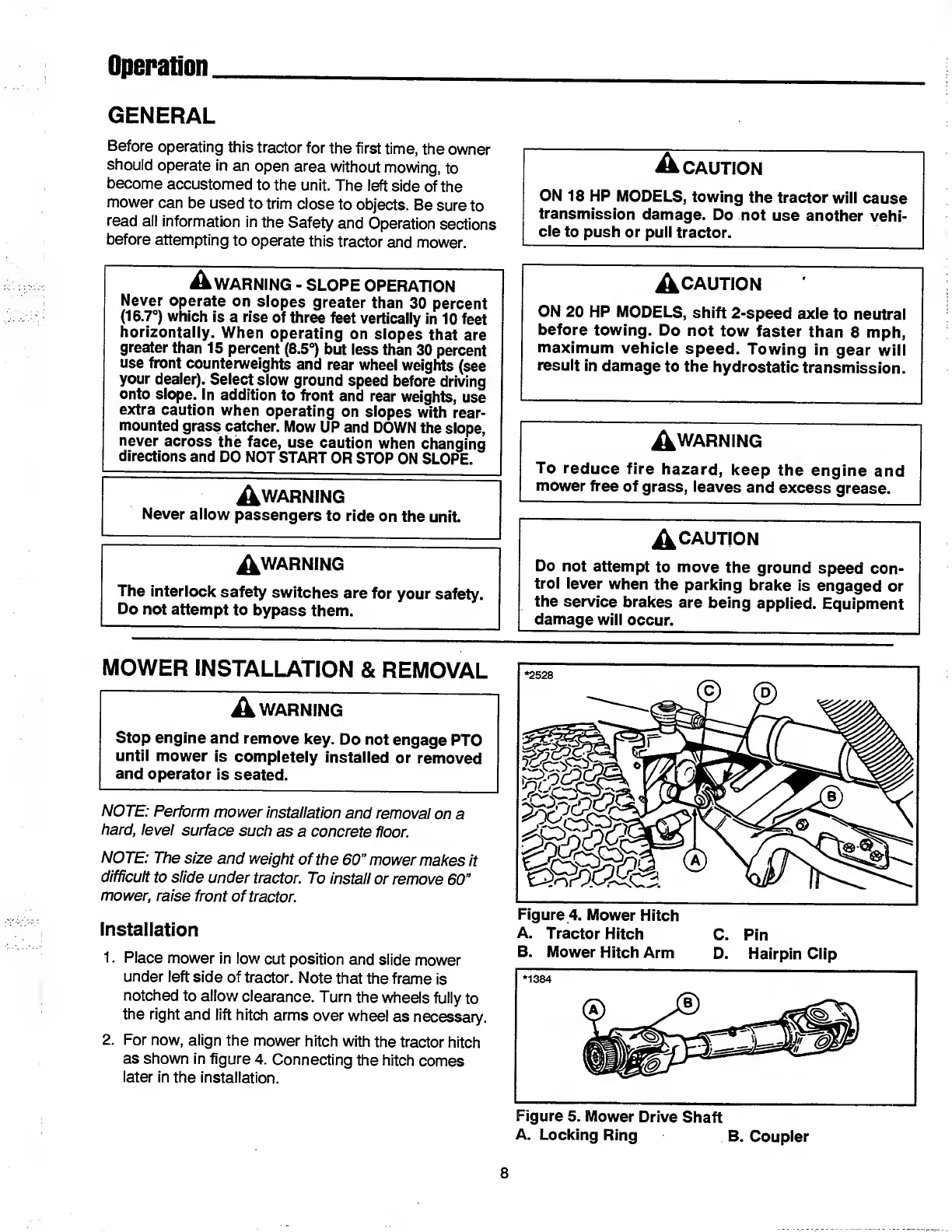

Operation
___
GENERAL
Before
operating
this
tractor
for
the
first
time,
the
owner
should
operate
in
an
open
area
without
mowing,
to
become
accustomed
to
the
unit.
The
left
side
of
the
mower
can
be
used
to
trim
close
to
objects.
Be
sure
to
read
all
information
in
the
Safety
and
Operation
sections
before
attempting
to
operate
this
tractor
and
mower.
MOWER
INSTALLATION
&
REMOVAL
A
WARNING
Stop
engine
and
remove
key.
Do
not
engage
PTO
until
mower
is
completely
installed
or
removed
and
operator
is
seated.
NOTE:
Perform
mower
installation
and
removal
on
a
hard,
level
surface
such
as
a
concrete
floor.
NOTE:
The
size
and
weight
of
the
60”
mower
makes
it
difficult
to
slide
under
tractor.
To
install
or
remove
60”
mower,
raise
front
of
tractor.
Installation
1.
Place
mower
in
low
cut
position
and
slide
mower
under
left
side
of
tractor.
Note
that
the
frame
is
notched
to
allow
clearance.
Turn
the
wheels
fully
to
the
right
and
lift
hitch
arms
over
wheel
as
necessary.
2.
For
now,
align
the
mower
hitch
with
the
tractor
hitch
as
shown
in
figure
4.
Connecting
the
hitch
comes
later
in
the
installation.
A
CAUTION
ON
18
HP
MODELS,
towing
the
tractor
will
cause
transmission
damage.
Do
not
use
another
vehi¬
cle
to
push
or
pull
tractor.
Acaution
ON
20
HP
MODELS,
shift
2-speed
axle
to
neutral
before
towing.
Do
not
tow
faster
than
8
mph,
maximum
vehicle
speed.
Towing
in
gear
will
result
in
damage
to
the
hydrostatic
transmission.
Awarning
To
reduce
fire
hazard,
keep
the
engine
and
mower
free
of
grass,
leaves
and
excess
grease.
Acaution
Do
not
attempt
to
move
the
ground
speed
con¬
trol
lever
when
the
parking
brake
is
engaged
or
the
service
brakes
are
being
applied.
Equipment
damage
will
occur.
A.
Tractor
Hitch
C.
Pin
B.
Mower
Hitch
Arm
D.
Hairpin
Clip
I
*1384
~
*
-
-
8
Figure
5.
Mower
Drive
Shaft
A.
Locking
Ring
B.
Coupler
