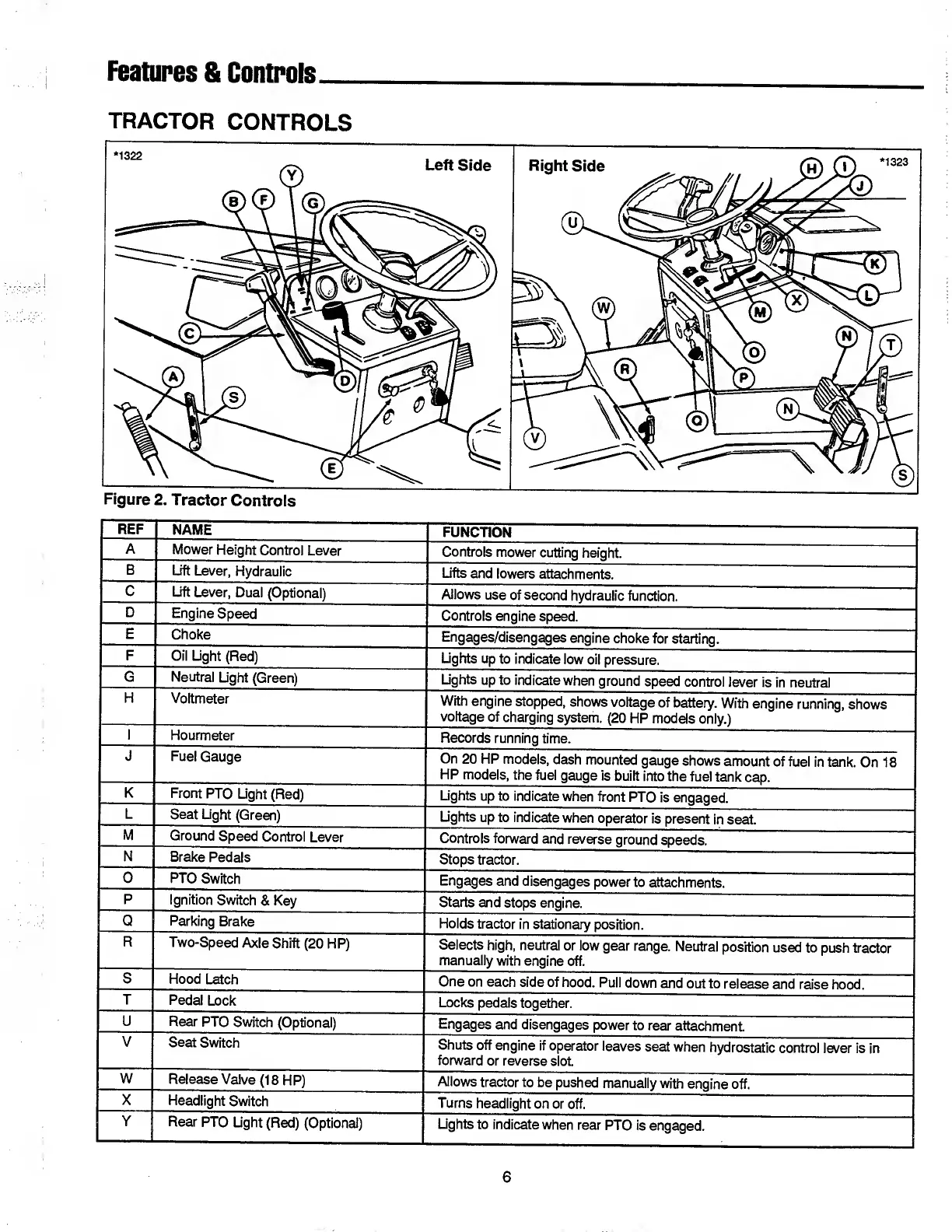

TRACTOR CONTROLS
NAME
Mower Height Control Lever
Lift Lever, Hydraulic
Lift Lever, Dual (Optional)
Engine Speed
Choke
Oil Light (Red)
Neutral Light (Green)
Voltmeter
Hourmeter
Fuel Gauge
Front PTO Light (Red)
Seat Light (Green)
Ground Speed Control Lever
Brake Pedals
PTO Switch
Ignition Switch & Key
Parking Brake
Two-Speed Axle Shift (20 HP)
Hood Latch
Pedal Lock
Rear PTO Switch (Optional)
Seat Switch
Release Valve (18 HP)
Headlight Switch
Rear PTO Light (Red) (Optional)
FUNCTION
Controls mower cutting height.
Lifts and lowers attachments.
Allows use of second hydraulic function.
Controls engine speed.
Engages/disengages engine choke for starting.
Lights up to indicate low oil pressure.
Lights up to indicate when ground speed control lever is in neutral
With engine stopped, shows voltage of battery. With engine running, shows
voltage of charging system. (20 HP models only.)
Records running time.
On 20 HP models, dash mounted gauge shows amount of fuel in tank. On 18
HP models, the fuel gauge is built into the fuel tank cap.
Lights up to indicate when front PTO is engaged.
Lights up to indicate when operator is present in seat.
Controls forward and reverse ground speeds.
Stops tractor.
Engages and disengages power to attachments.
Starts and stops engine.
Holds tractor in stationary position.
Selects high, neutral or low gear range. Neutral position used to push tractor
manually with engine off.
One on each side of hood. Pull down and out to release and raise hood.
Locks pedals together.
Engages and disengages power to rear attachment.
Shuts off engine if operator leaves seat when hydrostatic control lever is in
forward or reverse slot.
Allows tractor to be pushed manually with engine off.
Turns headlight on or off.
Lights to indicate when rear PTO is engaged.
