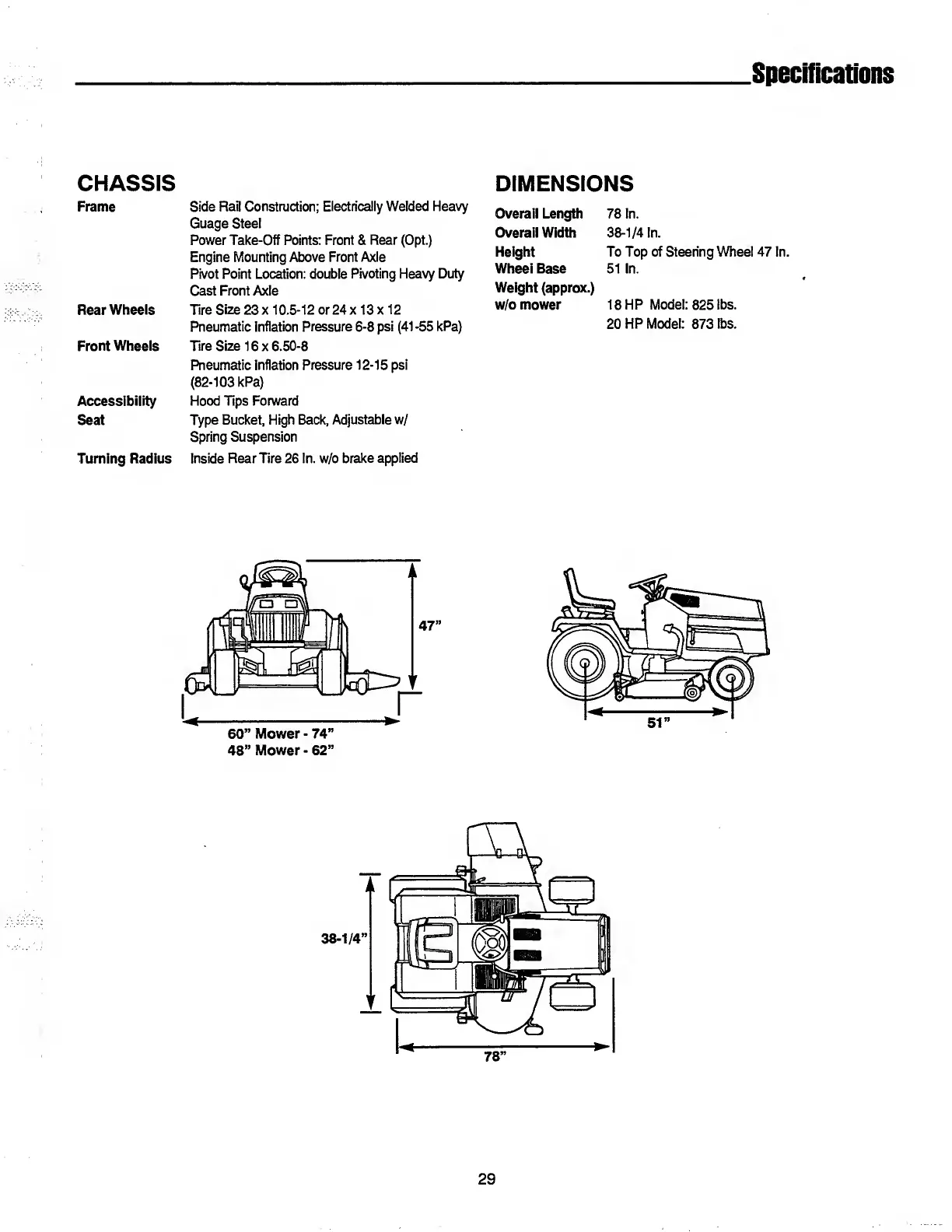

Specifications
CHASSIS
Frame
Rear Wheels
Front Wheels
Accessibility
Seat
Turning Radius
Side Rail Construction; Electrically Welded Heavy
Guage Steel
Power Take-Off Points: Front & Rear (Opt.)
Engine Mounting Above Front Axle
Pivot Point Location: double Pivoting Heavy Duty
Cast Front Axle
Tire Size 23 x 10.5-12 or 24 x 13 x 12
Pneumatic Inflation Pressure 6-8 psi (41-55 kPa)
Tire Size 16x6.50-8
Pneumatic Inflation Pressure 12-15 psi
(82-103 kPa)
Hood Tips Forward
Type Bucket, High Back, Adjustable w/
Spring Suspension
Inside Rear Tire 26 In. w/o brake applied
DIMENSIONS
Overall Length
Overall Width
Height
Wheel Base
Weight (approx.)
w/o mower
78 In.
38-1/4 In.
To Top of Steering Wheel 47 In.
51 In.
18 HP Model: 825 lbs.
20 HP Model: 873 lbs.
48” Mower • 62”
29
