SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18

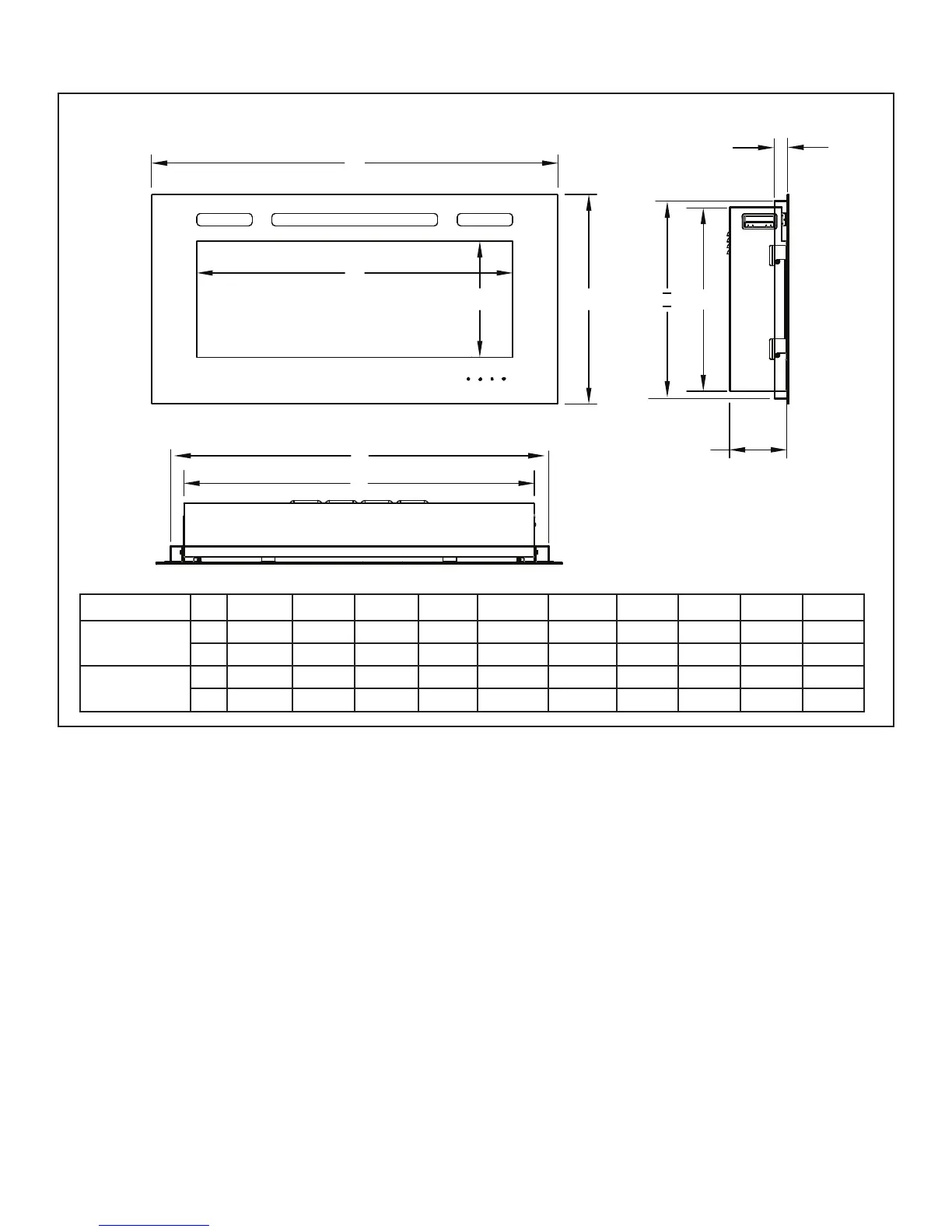

Figure 3.1 Appliance Dimensions
Model A B C D E F G H I J
SF-ALL48-BK
in. 48-7/16 20-1/4 39-3/8 11-1/4 42-13/16 17-13/16 5-15/16 47-1/2 19-3/8 2
mm 1230 515 1000 285 1088 453 151 1208 492 51
SF-ALL60-BK
in.
60-1/4 20-1/4 51-3/16 11-1/4 54-5/8 17-13/16 5-15/16 59-3/8 19-3/8 2
mm 1530 515 1300 285 1388 453 151 1508 492 51
D
F
G
E
B
A
C
H
J
I
C. Appliance Dimensions
