D. Location
When choosing a location for your replace ensure that
the following general rules are followed:
• For best results, install out of direct sunlight.
• Power supply service must be installed within
proximity of electric replace prior to nishing to
avoid reconstruction.
• Appliance should be mounted so the front glass
panel is located outside the swing arc of adjacent
door.
• See Figure 3.2 and 3.3 to determine location of ap-
pliance installation.
E. Clearance to Combustibles
Minimum Clearance to Combustible Construction
Sides.......................0 in.
Floor......................18 in.
Top..........................0 in.
Back........................0 in.
Front..................... 36 in.
Mantel.....................8 in.
Mantel Depth..........8 in. max.
See Figure 3.2.
WARNING! Risk of Fire! Keep electrical cords, drapery,
furnishings or other combustibles at least 3 ft. (0.9 m)
from the front of the electric replace, and away from the
sides or rear.
F. Electrical Supply Circuit Requirements
Plan the location of the appliance so that it will have
adequate electric power. A 15 AMP, 120V/60Hz circuit
is required. Additional appliances on the same circuit as
this appliance may exceed the current rating of that cir-
cuit. A dedicated circuit is not required, but is preferred
to prevent circuit breaker trips or fuse failure.
min. 18 in.
min. 0 in.
min. 8 in.
Ceiling
Mantel
Floor
Wall
Mantel
Depth
max. 8 in.
Outside
swing arc
of adjacent
doors

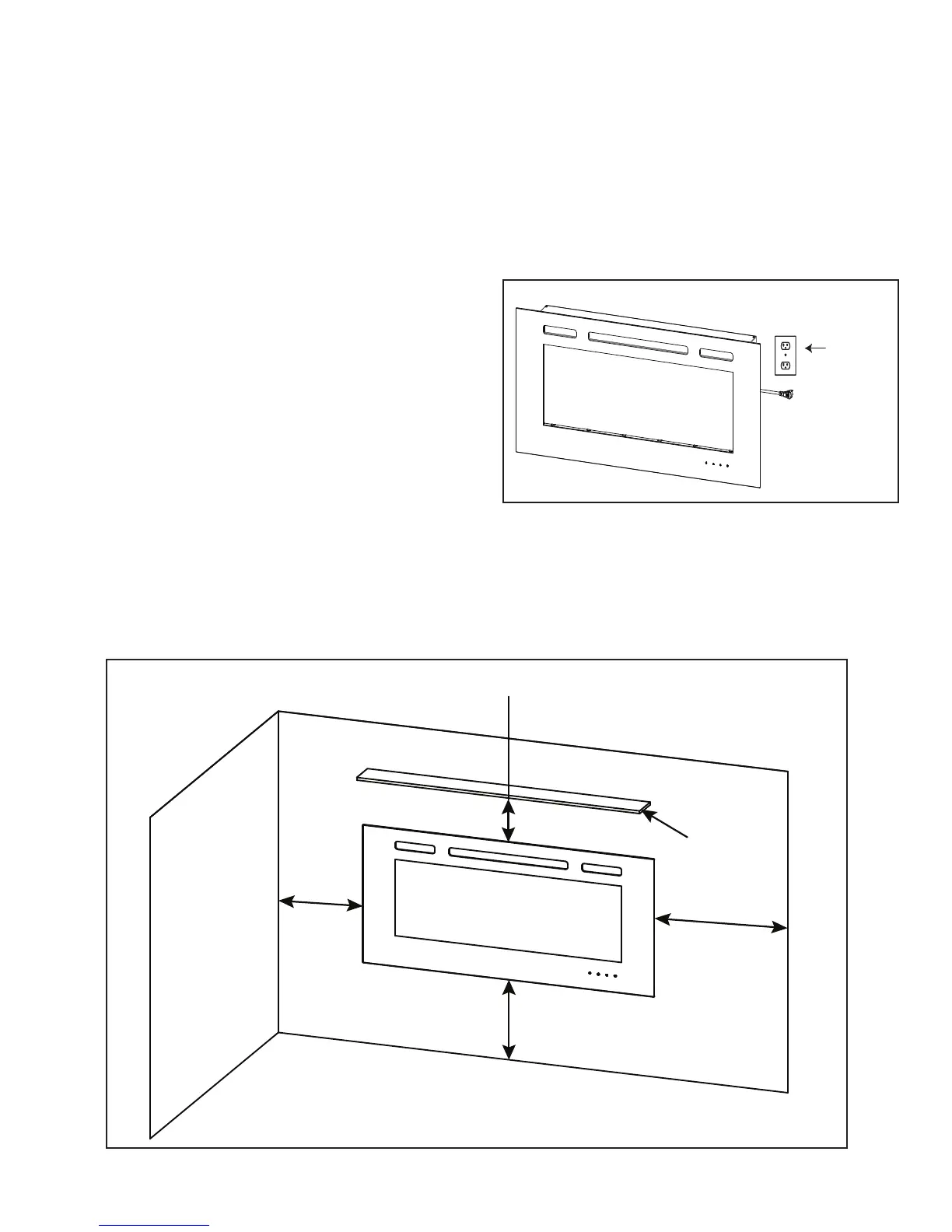

Figure 3.2 Location and Clearances Requirements
ELECTRICAL
OUTLET
LOCATION
Figure 3.3 Electrical Outlet Location
Note: Choose a location near an outlet so an exten-
sion cord is not required. Do not position the unit directly
below a power outlet.
