GETTING STARTED
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Pliers
Hammer
Gloves
Magnetic Phillips screwdriver
Safety glasses
Flat blade screwdriver

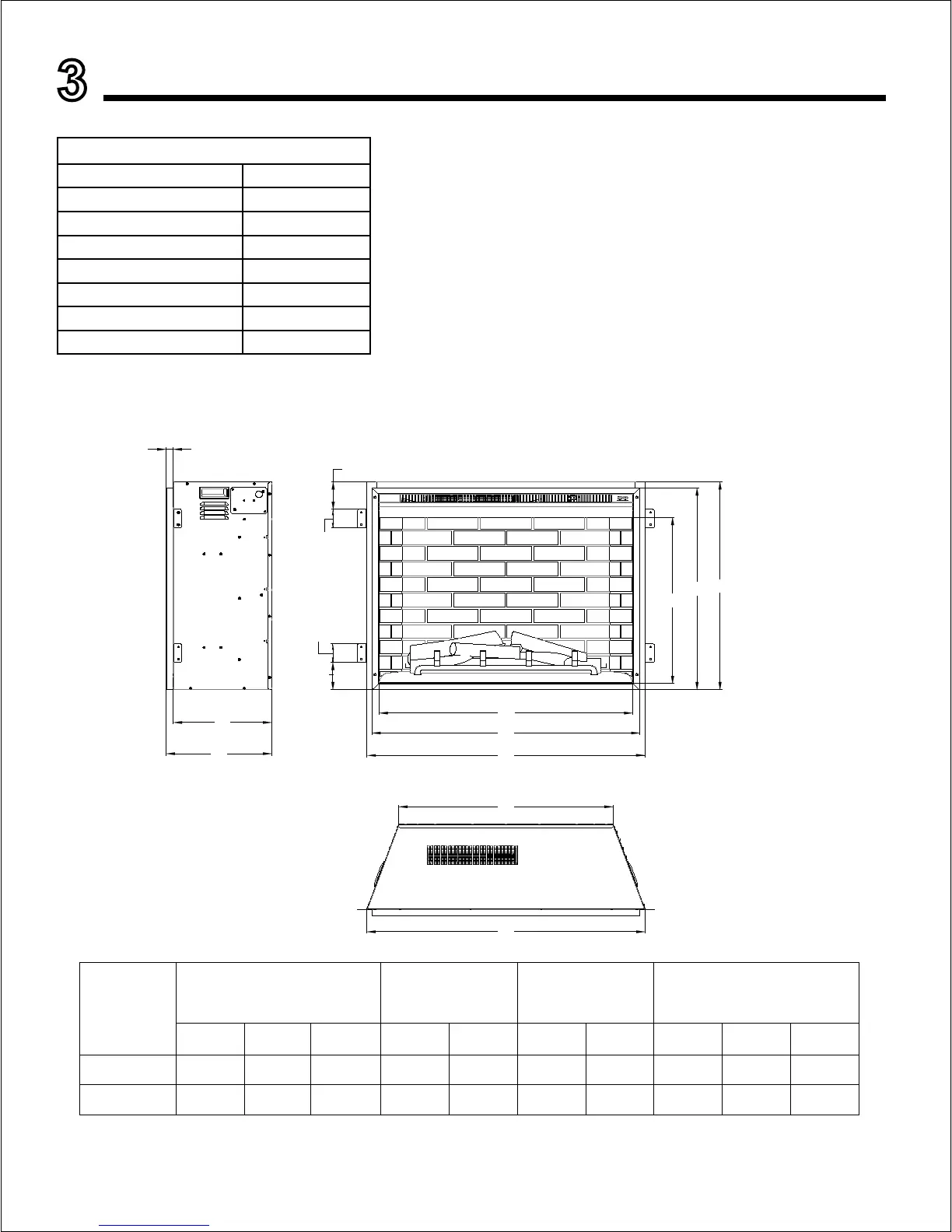

C. Appliance Dimensions
B. Tools and Supplies Needed
Parts and Hardware List
Part Quantity
Fireplace 1
Instruction Manual 1
Remote Control 1
AAA Battery 2
Mounting Bracket 4
Screw ST4x8 8
Screw ST4x12 8
A. Parts and Hardware
D1
D2
H3
W3
W4
3/4 in.
3-1/2 in.
W5
2-3/8 in.
2-3/8 in.
3-1/2 in.
W2
W1
H1
H2
MODEL
SHELL SIZE TRIM SIZE FLAME VIEW OTHER SIZE
W1
H1
D1
W2
H2
W3
H3
D2
W4
W5
SF-BI30-E
SF-BI30-E
11-13/16
29-15/16
26
28-11/32
21-13/32
11
24
31-1/8
37
30-3/8
34-1/4
25-7/8
11
29-7/8
37
11-13/16
35-13/16
31-1/4
31-1/8
26-3/4
SF-BI36-E
units: inches
