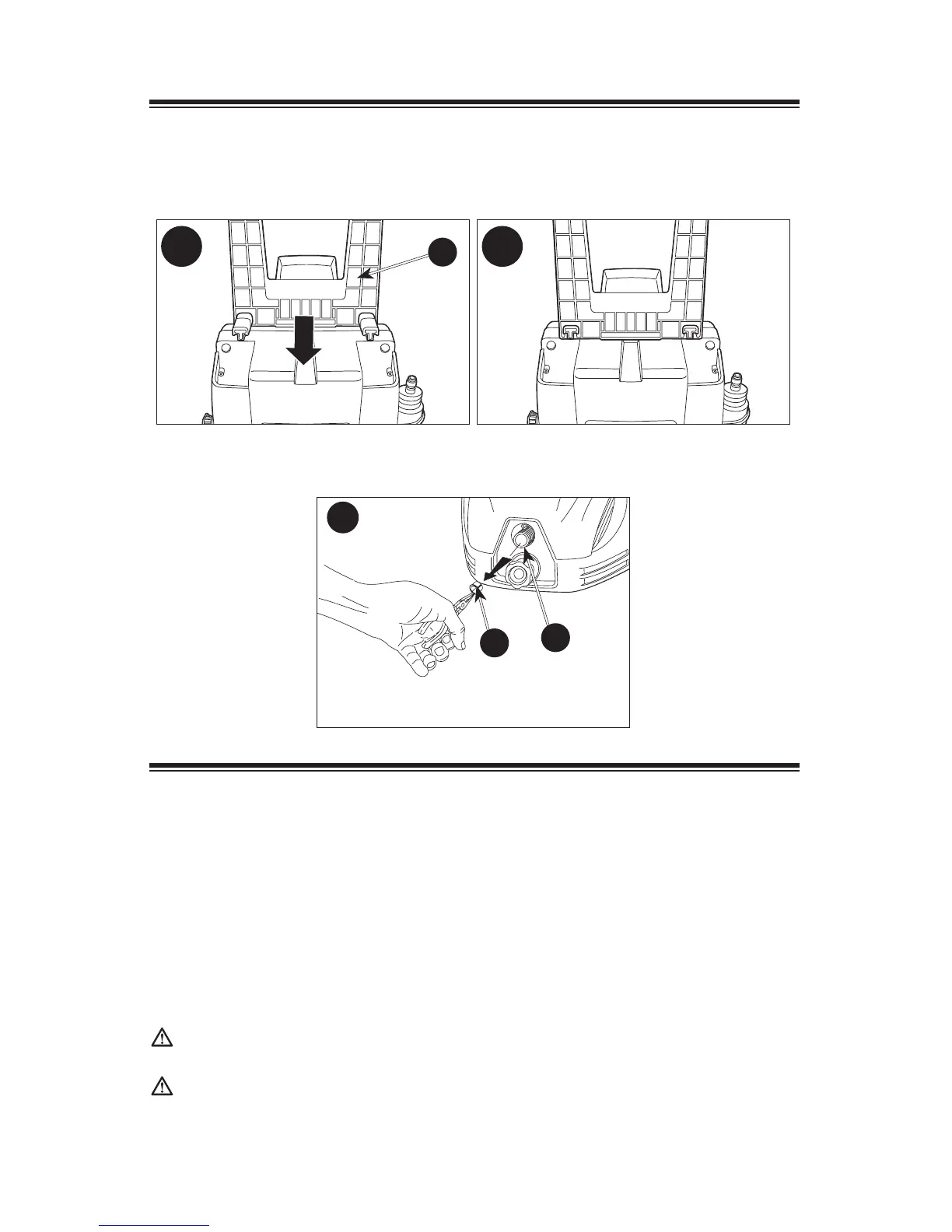

ASSEMBLY INSTRUCTIONS (FIG. 3)
1. Locate and remove all loose parts from the carton.
2. With handle oriented as shown, align grooves in carry handle (P) with rails on
top of pressure washer and slide into place.
3. Push as shown to further lock carry handle into place.
3A
P
3B
4. Remove and discard the shipping plug (L) from the outlet (K) on the front of
the machine.
L
K
3C
OpERATING INSTRUCTIONS
pRESSURE WASHER TERMINOLOGY
PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used
for air pressure, hydraulic pressure, etc.
GPM: Gallons Per Minute. The unit of measure for the flow rate of water.
CU: Cleaning Units. GPM multiplied by PSI. GPM x PSI = CU
Detergent Injection System: Mixes cleaners or cleaning solvents with the water
to improve cleaning effectiveness.
Water Supply: All pressure washers must have a source of water. The minimum
requirements for a water supply are 20 psi and 5 gallons per minute. If your water
source is a well, the garden hose length can only be 30ft. (9 m) max.
WARNING: To reduce the possibility of contamination always protect
against backflow when connected to a potable water system.
DANGER: Risk of fluid injection and laceration. When using the high-
pressure setting, DO NOT allow the high-pressure spray to come in contact
with unprotected skin, eyes, or with any pets or animals. Serious injury will
occur.
