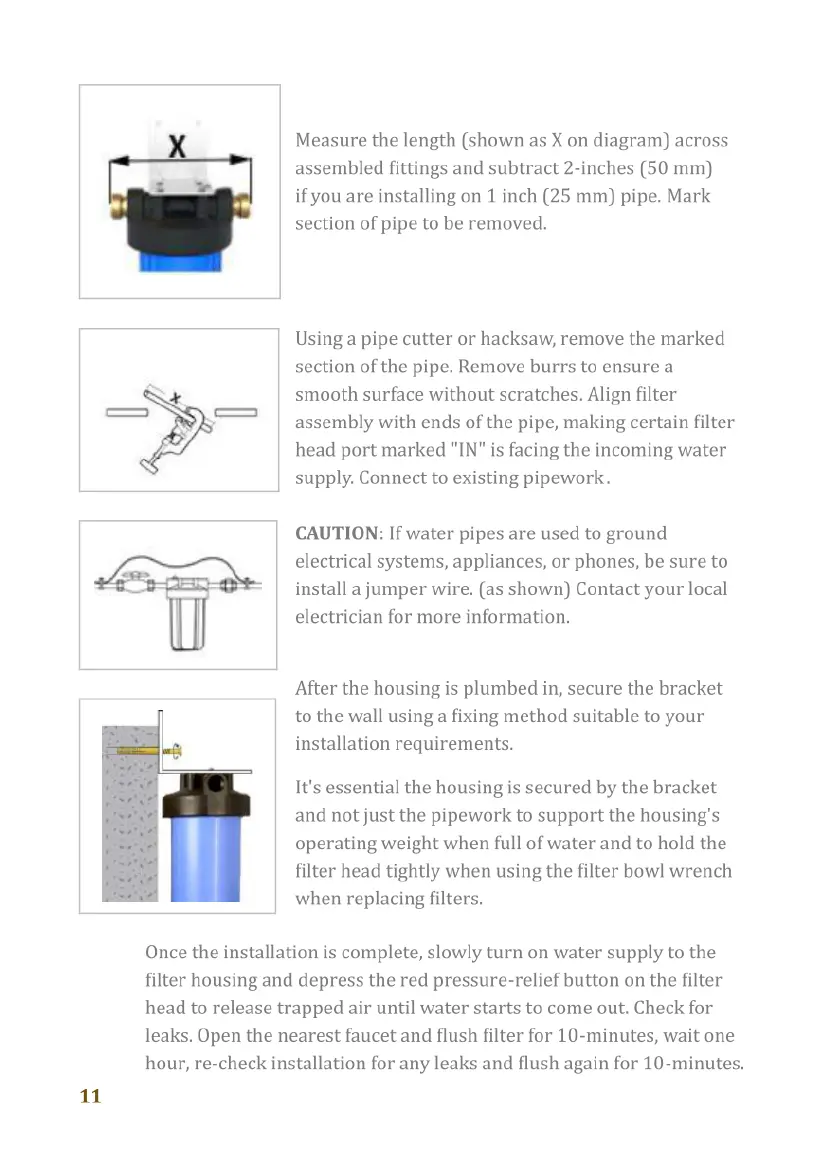

Measure the length (shown as X on diagram) across
assembled fittings and subtract 2-inches (50 mm)
if you are installing on 1 inch (25 mm) pipe. Mark
section of pipe to be removed.
Using a pipe cutter or hacksaw, remove the marked
section of the pipe. Remove burrs to ensure a
smooth surface without scratches. Align filter
assembly with ends of the pipe, making certain filter
head port marked "IN" is facing the incoming water
supply. Connect to existing pipework.
CAUTION: If water pipes are used to ground
electrical systems, appliances, or phones, be sure to
install a jumper wire. (as shown) Contact your local
electrician for more information.
After the housing is plumbed in, secure the bracket
to the wall using a fixing method suitable to your
installation requirements.
It's essential the housing is secured by the bracket
and not just the pipework to support the housing's
operating weight when full of water and to hold the
filter head tightly when using the filter bowl wrench
when replacing filters.
Once the installation is complete, slowly turn on water supply to the
filter housing and depress the red pressure-relief button on the filter
head to release trapped air until water starts to come out. Check for
leaks. Open the nearest faucet and flush filter for 10-minutes, wait one
hour, re-check installation for any leaks and flush again for 10-minutes.
Operating Guidelines
The following table lists the operating parameters for this product. Operating
this product outside these specifications may cause system performance issues
and may even lead to personal injury and void any warranty. Please contact
SimPure® for further advice and support if unsure about the requirements.
Operating Parameters
Model DB10, DB20, DB10-PP, DB10-CTO
DB10 fits standard 10” x 4.5” filter cartridge
DB20 fits standard 20" x 4.5” filter cartridge
Filter Cartridge
(Not included) DB10 and DB20 do not include filter
cartridges, other models include PP,
CTO or other filter cartridges.
Connection Ports
Inlet and Outlet
1" female NPT thread
Feed Water Pressure
Ideal feed water pressure should be between
25 and 90 psi (170 to 620 kpa)
The maximum system operating
pressure is 90 psi (620kpa).
Install a pressure regulator if
exceeding this feed water pressure
Maximum Flow Rate
20 gallons (76L) per minute
Feed Water Temperature
Material
41-100°F (5-381)
Food Grade Polypropylene
pH Range
6tol1l
