Step 4 - Install the Drain Saddle

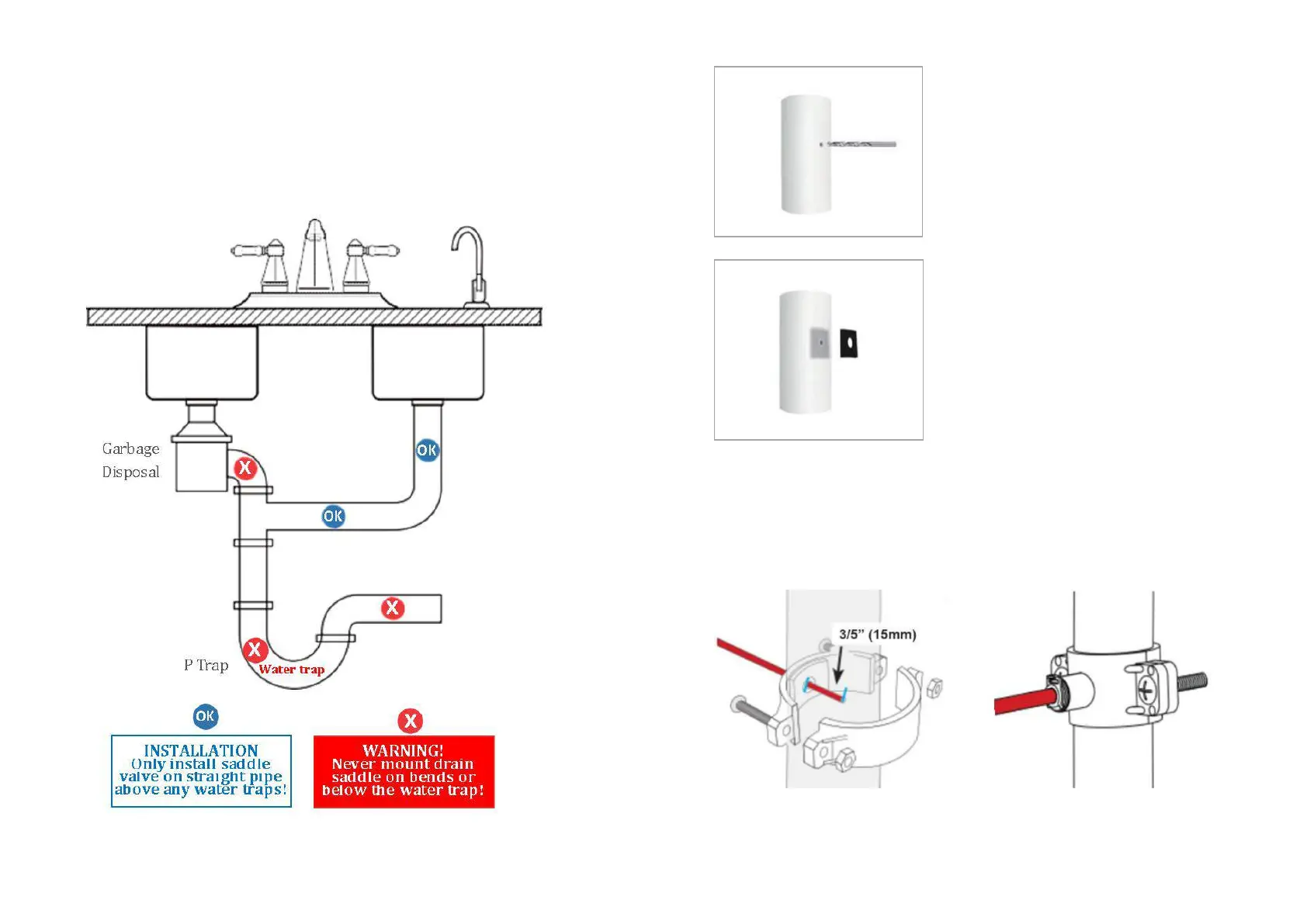

If installing the product under a sink, make sure you connect the drain to a
straight piece of pipe and make sure it is BEFORE the water trap ('P' trap or 'U'
bend) see diagram below.
X
Drill a ¼" (6.5mm) hole on the
drainpipe with an electric drill.
Remove the backing and stick the
saddle valve seal on the pipe, line up
the holes.
Assemble the drain saddle valve according to the diagram below and tighten the
bolts evenly with the cross-head screwdriver to allow the clap to fit snuggly
around the pipe (Do Not Overtighten). Once secure, insert the ¼" PE tube into
the saddle valve QC fitting and push the tube a further
3
/
5
" (15mm) into the
saddle valve, so the end of the tube roughly reaches the middle of the drain
pipe.
