SimPure V7 - Assemble the Components

Tips
If the angle valve outlet is 3/8”, it can be directly connected to the water supply.
If the angle valve outlet is 1/2”, it can be connected via the following two
fittings.
1/2" outlet
g
Connect @ to Connect @
the cold angle valve. to the outlet hose.
Unsure about something? Is there a problem?
Please contact SimPure® through our website or toll-free number.
Customer Service: service@simpurelife.com
Toll-Free :1-866-528-4572
Website: www.simpurelife.com
CONGRATULATIONS!
You have completed the installation!
11
Assemble the Components

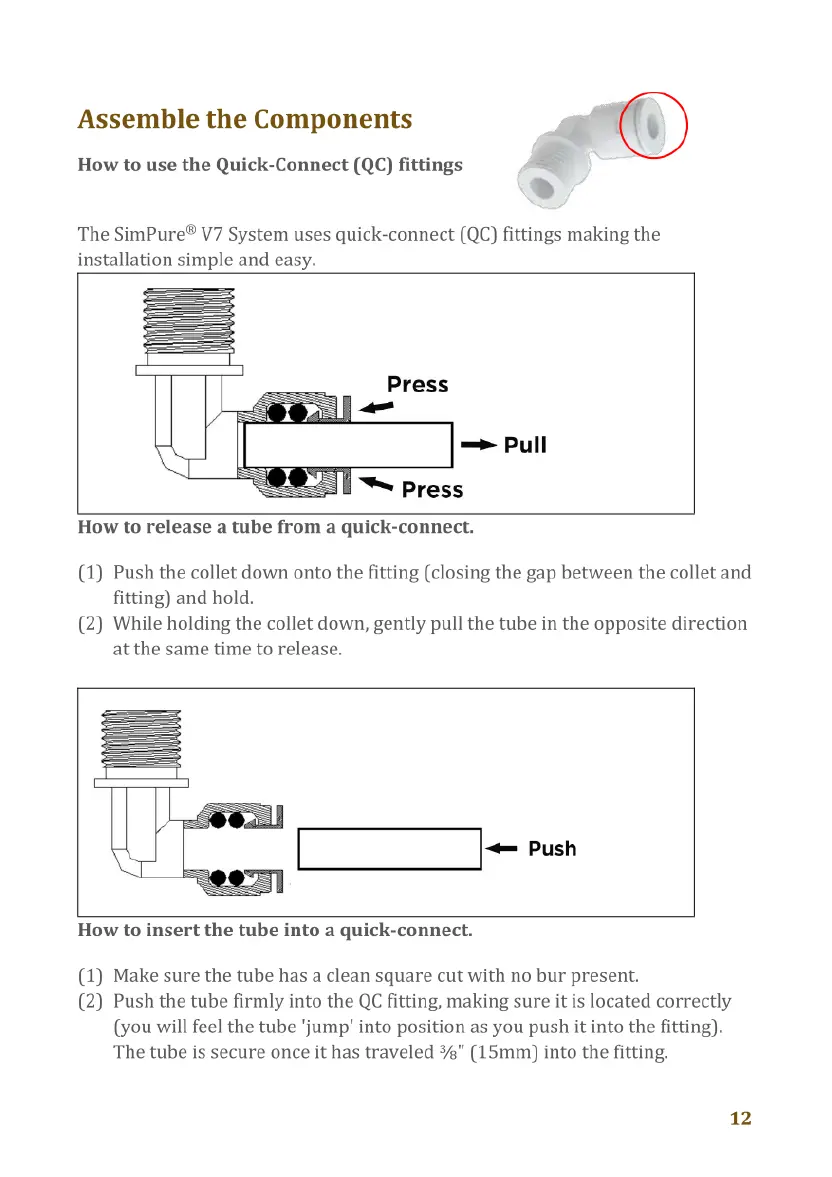

How to use the Quick-Connect (QC) fittings
The SimPure® V7 System uses quick-connect (QC) fittings making the
installation simple and easy.
= Pull
™~ Press
How to release a tube from a quick-connect.
(1) Push the collet down onto the fitting (closing the gap between the collet and
fitting) and hold.
(2) While holding the collet down, gently pull the tube in the opposite direction
at the same time to release.
<= Push
How to insert the tube into a quick-connect.
(1) Make sure the tube has a clean square cut with no bur present.
(2) Push the tube firmly into the QC fitting, making sure it is located correctly
(you will feel the tube 'jump’ into position as you push it into the fitting).
The tube is secure once it has traveled %" (15mm) into the fitting.
12
