Simrad IS15 User Manual

Installation
20220752G 27
NMEA connections general
Note ! The NMEA port on the IS15 instruments is unidirectional, i.e. it is
automatically configured for input (listening) or output (talking). Thus
you will need a minimum of any two instrument heads to make the
system both ‘listen’ and ‘talk’ (I/O).
Roblink cables can be ordered separately for NMEA connections
when required (see page 6).

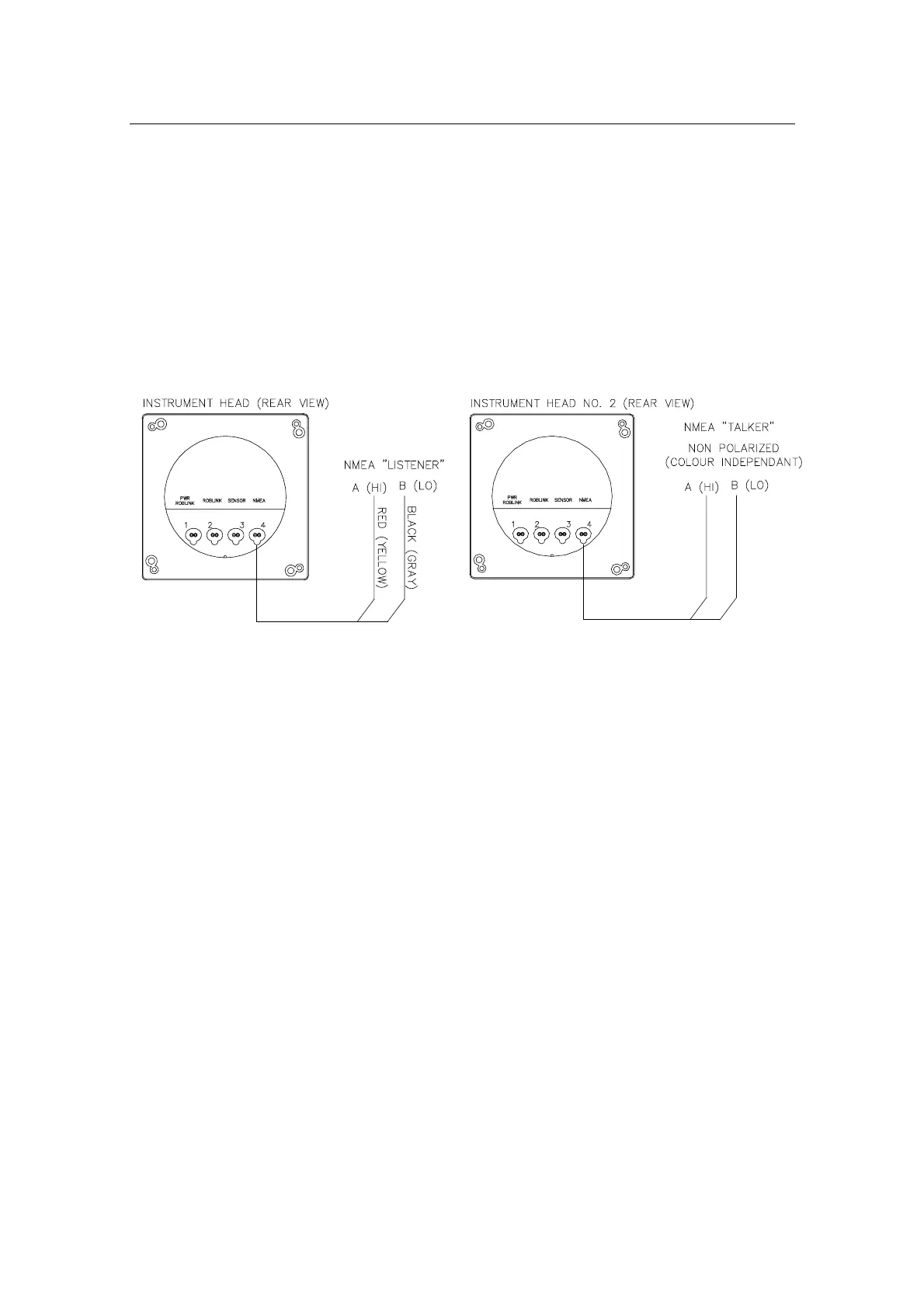

Figure 5-8 NMEA out
Figure 5-9 NMEA in
Use no other connector than no. 4.
